IMT 5005i Parts & Specifications

Lighting & Electrical 97 Section 4
IMT 5005i / 6006i - Manual # 99904387
99906235-4

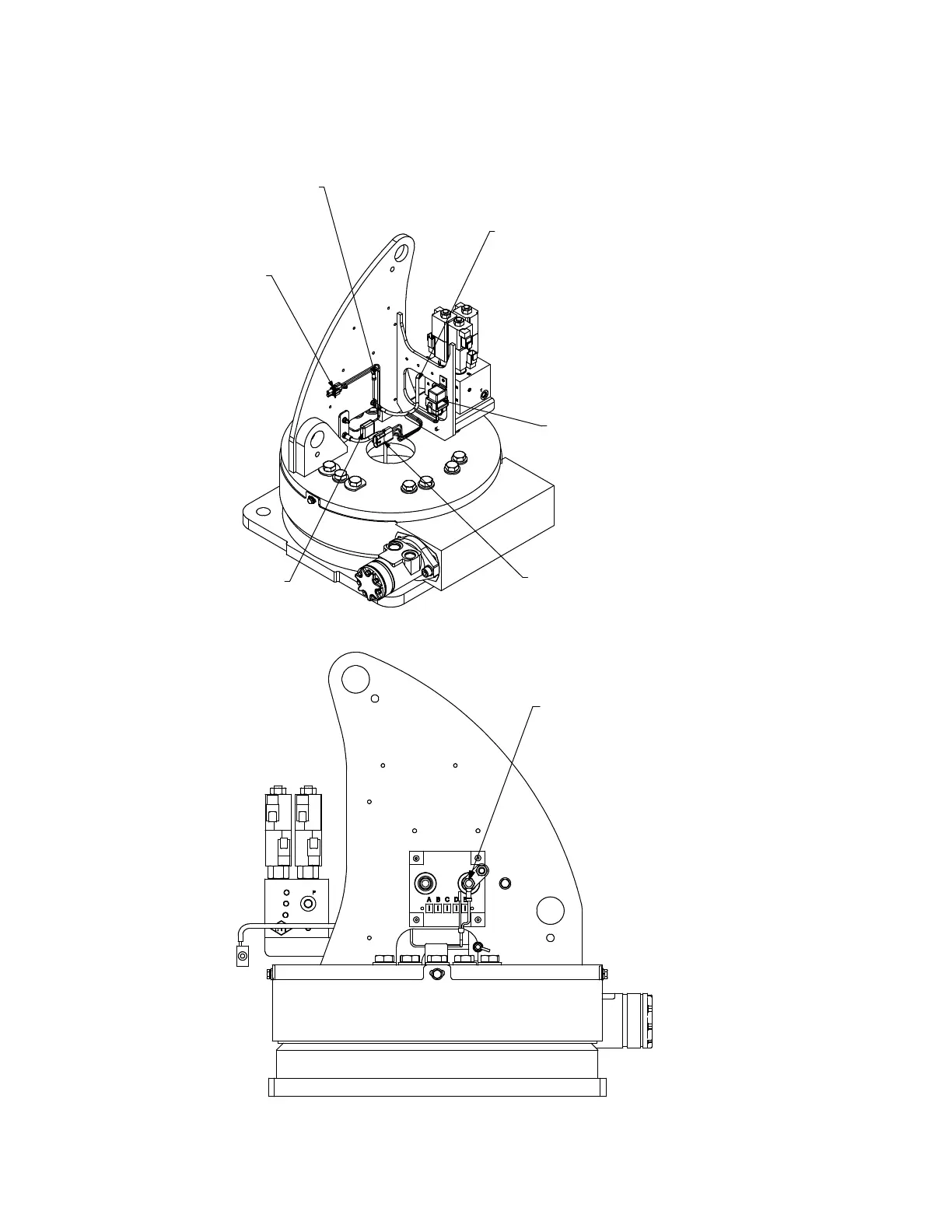

CONNECT 1/2" WASHER CONNECTOR
TO RIGHT POWER ENTRY
PLUGS INTO J9 ON CRANE
HARNESS (WAS PLUGGED
INTO OLD REEL)
FASTEN 1/4" WASHER CONNECTOR
WITH TOP RIGHT SCREW AS SHOWN
FEED 1/2" WASHER CONNECTOR
THROUGH BOTTOM LEFT SIDE
OF MAST AS SHOWN
CONNECT TO BACK RIGHT
PANEL OF MAST
CONNECT 3-WAY MALE CONNECTOR FROM
NEW REEL TO 3-WAY FEMALE CONNECTOR
FROM HARNESS
RUN HARNESS AND SWITCH THROUGH
BACK OF MAST AS SHOWN

IMT 5005i Specifications
