11. Measure belt tension (frequency meter) and adjust belt.
12. Replace S2 belt.
13. Measure belt tension (frequency meter) and adjust belt.
14. Replace X3 belt.
15. Measure belt tension (frequency meter) and adjust belt.
16. Replace Z5 belt.
17. Measure belt tension (frequency meter) and adjust belt.
18.

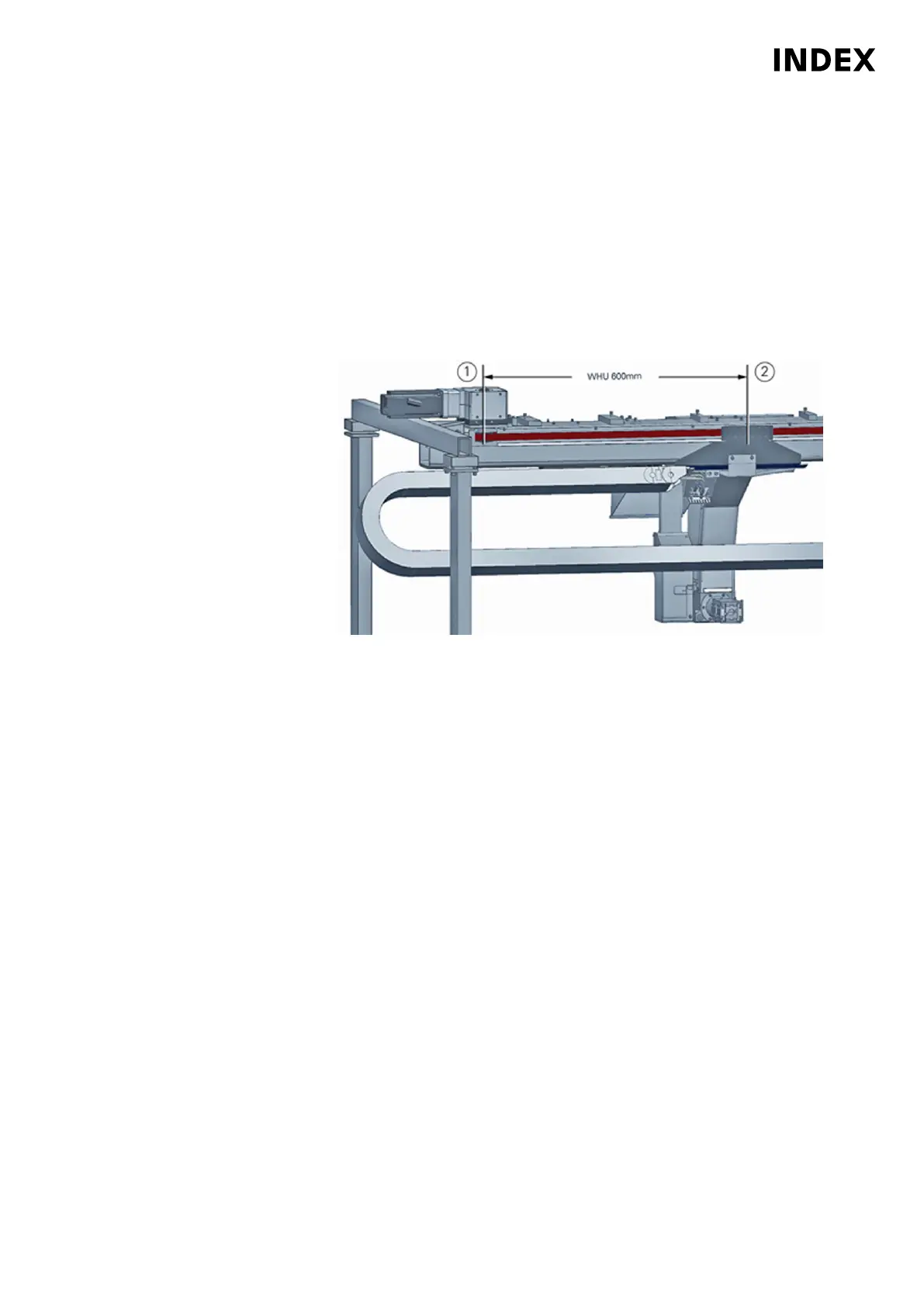

Example: Distance between guide pulley and belt clamping
1
Guide pulley at drive
2 Belt clamping
Replace Z8 WHU belt. The value of 600mm listed in the table refers to the
distance between the center of the guide pulley on drive 1 and the center of the
belt clamping of this unit 2 (see example: distance between guide pulley and
belt clamping). This value or distance is necessary to accurately adjust the belt
tension.
19. Measure belt tension (frequency meter) and adjust belt.
Maintenance Summary - 4.000 Operating hours
85
Maintenance Instructions
C200
LP1702.10021 - 05.06.2019
