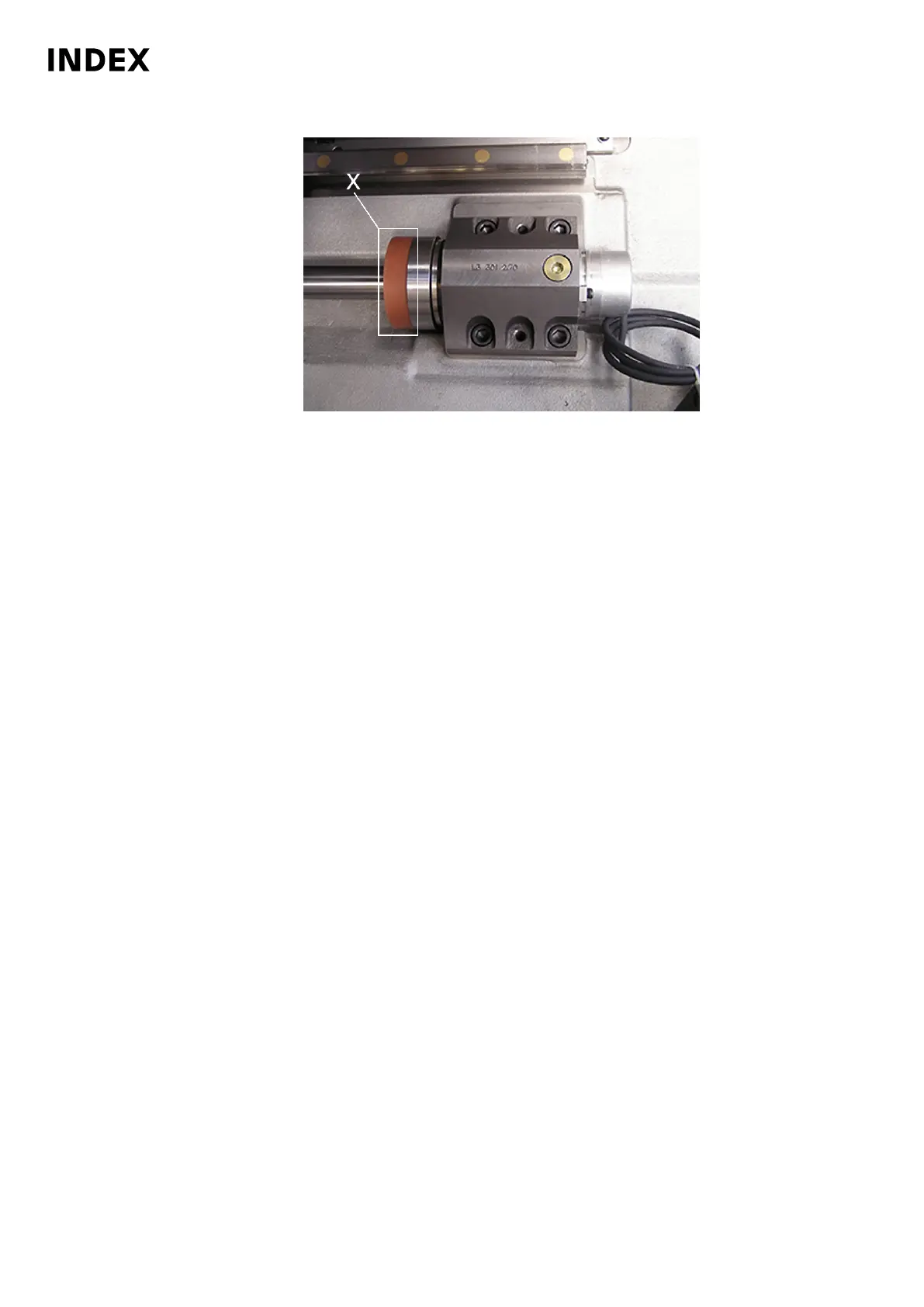

Example: End position damper (X), G200
Position tool carrier such as to allow safe access to the specific end position
damper.
3. Remove screws and replace dampers.
4. The damper has a slit on one side and can be slid over the ballscrew by
rotating it.
5. For assembly, follow the steps in reverse order. Ensure proper cleanliness
during the installation.
Maintenance Summary - 4.000 Operating hours
90
Maintenance Instructions
C200
LP1702.10021 - 05.06.2019
