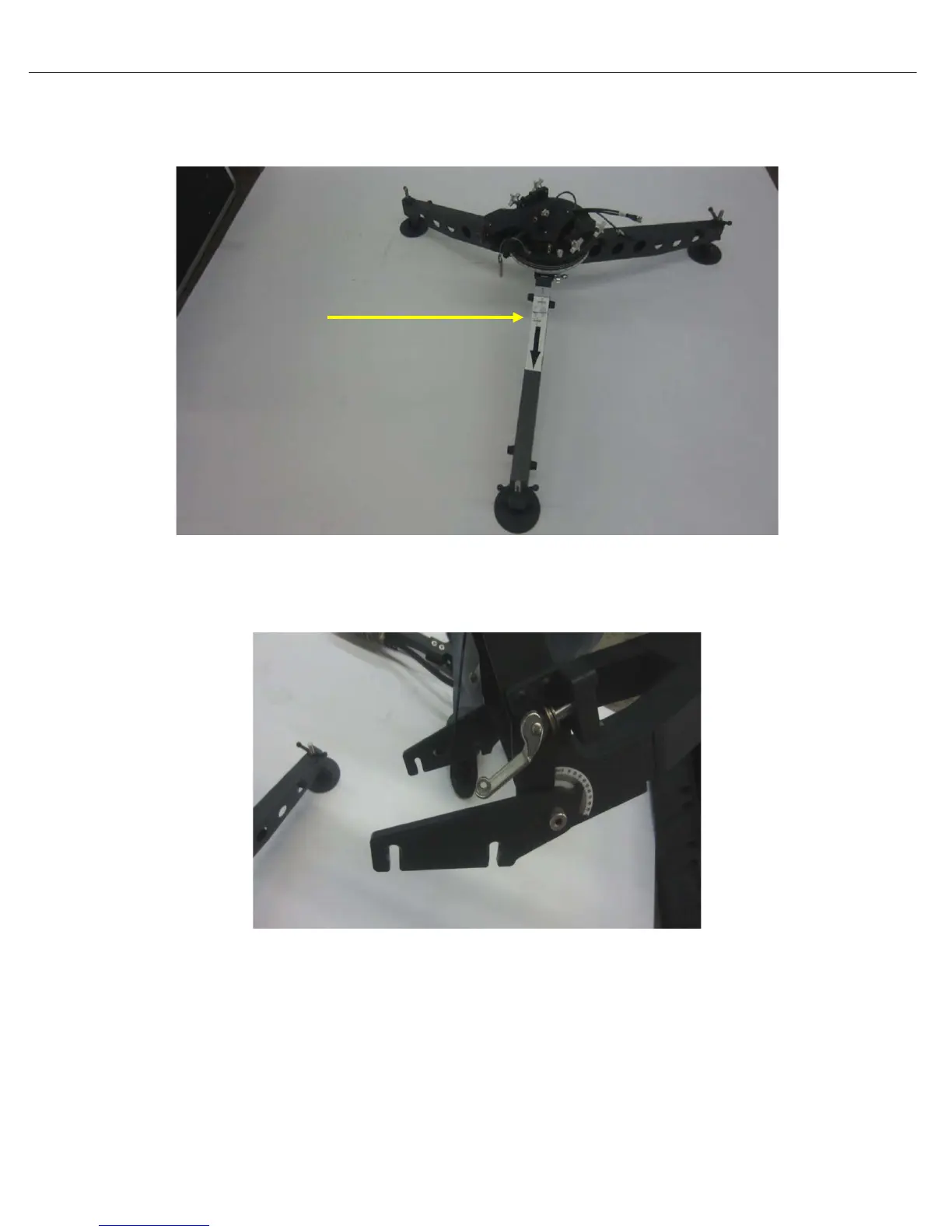

3) Flip the AZ assembly over so it is sitting (like a tripod) on all (3) legs; the leg with the label (back
leg) should be pointing North (if located in Northern Hemisphere) and South (if location is in the
Southern Hemisphere).
4) Remove EL Feed Arm Support plate, fold arm brackets out as depicted in the image.
Back Leg
