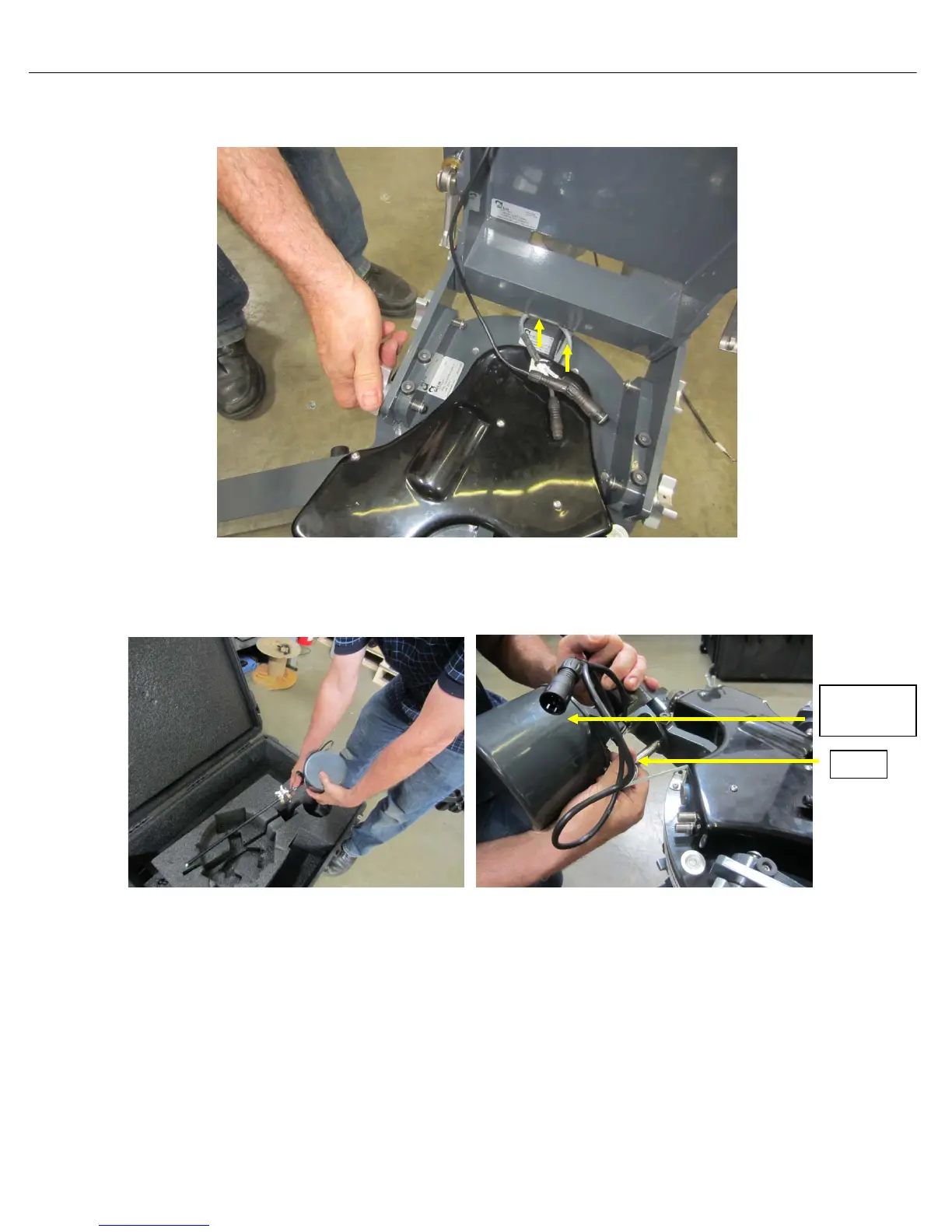

5) Install EL Feed Arm Support plate on the AZ base assembly; ensure the cables (POL and Coax)
are pulled through front opening and tighten the (4) retaining nuts.
6) Remove EL actuator assembly from the case; install bottom pin as shown making sure the
actuator motor is on the right hand side with reference to the back of the EL support plate.
Actuator
Motor
Pin
