InFocus INF6502WB - Page 13

DRAFT
Page 10
B

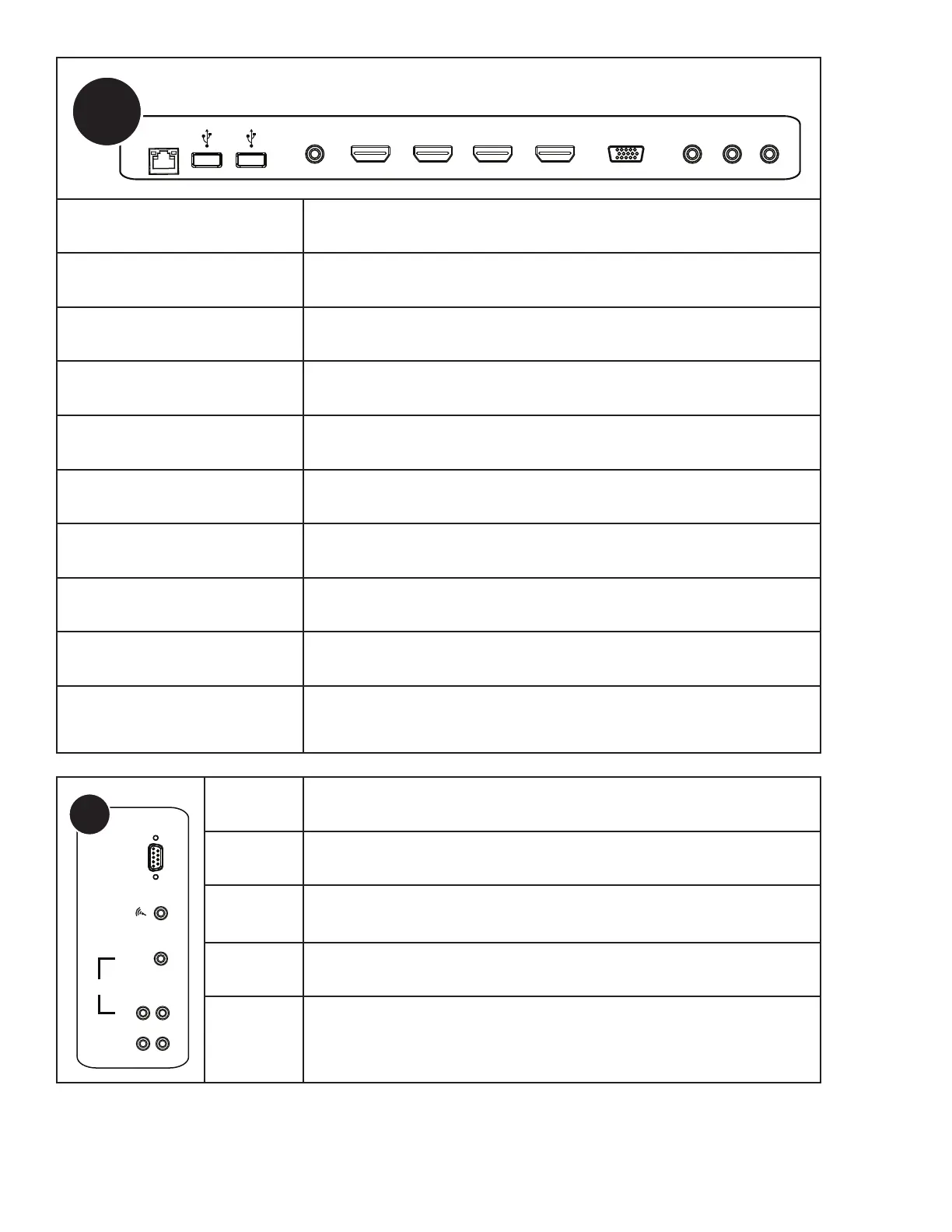

HDMI3HDMI4 HDMI1HDMI2 COMPONENTVIDEO PC IN
RJ45
RJ45 For Lightcast use only. Connect to an Ethernet network.
USB
For Lightcast use only. Connect a wireless mouse, USB thumb drive or
other USB device to this USB Type A 2.0 connector.
USB
For Lightcast use only. Connect a wireless mouse, USB thumb drive or
other USB device to this USB Type A 2.0 connector.
VIDEO
Connect a composite video cable from the monitor to an external device
(such as a VCR or DVD player).
HDMI4
Connect an HDMI cable from the monitor to an HDMI external device
(such as a VCR or DVD player).
HDMI3
Connect an HDMI cable from the monitor to an HDMI external device
(such as a VCR or DVD player).
HDMI2
Connect an HDMI cable from the monitor to an HDMI external device
(such as a VCR or DVD player).
HDMI1
Connect an HDMI cable from the monitor to an HDMI external device
(such as a VCR or DVD player).
PC IN
Connect a VGA computer cable from the monitor to an external
computer.
COMPONENT
Connect a component RCA video cable from the monitor to an external
device (such as a DVD player, HDTV device, or Laser Disc player)
(YPbPr) signals.
RS232
L R
Audio
Audio OUT
IN 1
IN 2
C
RS232 Connect to an RS232 control device for remote control applications.
MIC Connect an external microphone to this jack.
AUDIO IN1 Connect a 3.5mm audio cable to an external device (e.g., iPod player).
AUDIO IN2 Connect an RCA L/R audio cable to an external device.
AUDIO OUT Connect an RCA L/R audio cable to external stereo speakers.
