InFocus INF6502WB User Manual

DRAFT
Page 18

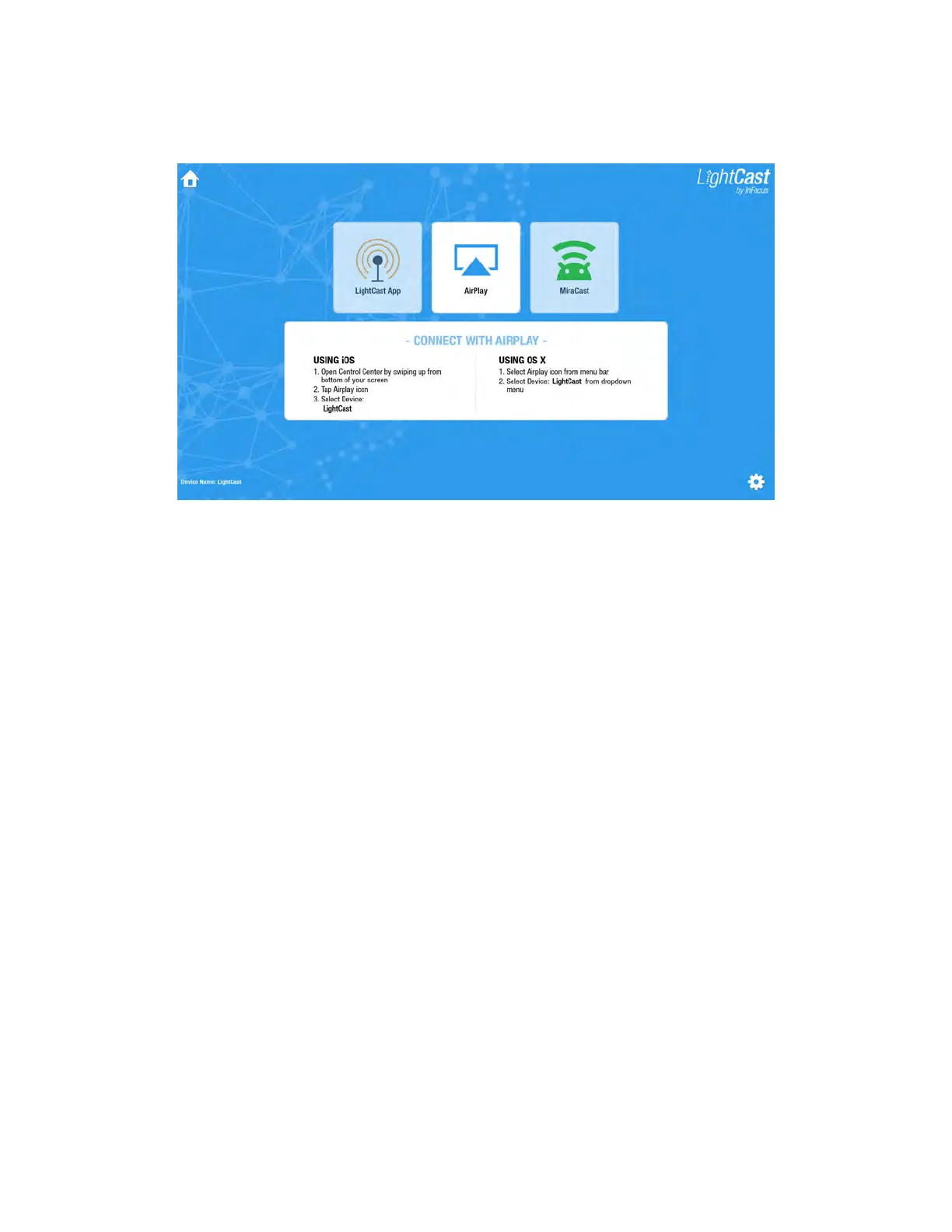

AirPlay
Airplay sends content over either a wired or wireless network. You must have an Apple device with embedded AirPlay in
order to use this AirPlay feature on this monitor. In addition, your network must follow Airplay configuration guidelines as
specified by Apple.
Using iOS on an iPad or iPhone
1) Open the Control Center on your device by swiping up from the bottom of your iPad or iPhone screen.
2) Tap the Airplay icon.
3) Select the device name listed in step 3 of the Connect with AirPlay window.
Using an OS X device
1) Select the Airplay icon from the menu bar on OS X device.
2) Select the device name listed in step 2 of the Connect with AirPlay window.

InFocus INF6502WB Specifications

General

Panel life	- h
Pixel pitch	0.744 x 0.744 mm
Screen shape	Flat
Response time	6.5 ms
Backlight type	W-LED
Display diagonal	65 \
Touch technology	Multi-touch
Display brightness	350 cd/m²
Display technology	LED
LED backlighting type	Direct-LED
Supported video modes	1080p
Touchscreen technology	Capacitive
Contrast ratio (typical)	5000:1
Display number of colors	-
Viewing angle, horizontal	176 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
Number of simultaneous touchpoints	16
USB connector type	USB Type-A, USB Type-B
USB ports quantity	6
HDMI ports quantity	4
VGA (D-Sub) input ports	1
USB 2.0 Type-A ports quantity	5
Picture-in-Picture	No
Product color	Black
Panel mounting interface	400 x 400 mm
RMS rated power	20 W
Number of built-in speakers	2
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Operating temperature (T-T)	0 - 40 °C
Cables included	AC, USB, VGA

Weight and Dimensions

Depth	83.1 mm
Width	1520.5 mm
Height	895 mm
Weight	53500 g
