InFocus INF6502WB User Manual

DRAFT
Page 40
OSD (ON-SCREEN DISPLAY) MENU SYSTEM
The OSD provides the user the ability to control the monitor display.
To access the OSD, press the Menu button on the remote or the keypad located on the right-hand side of the monitor.
Use the up and down arrows on the remote or keypad to scroll through the menu options and press OK to enter the
highlighted menu. Use the up and down arrows and OK button to select the item you would like to adjust. Left and right
arrow buttons are used to make adjustments.
When your adjustments are complete, press the Back button to go to a different menu or press the Menu button to exit
the OSD menu entirely.

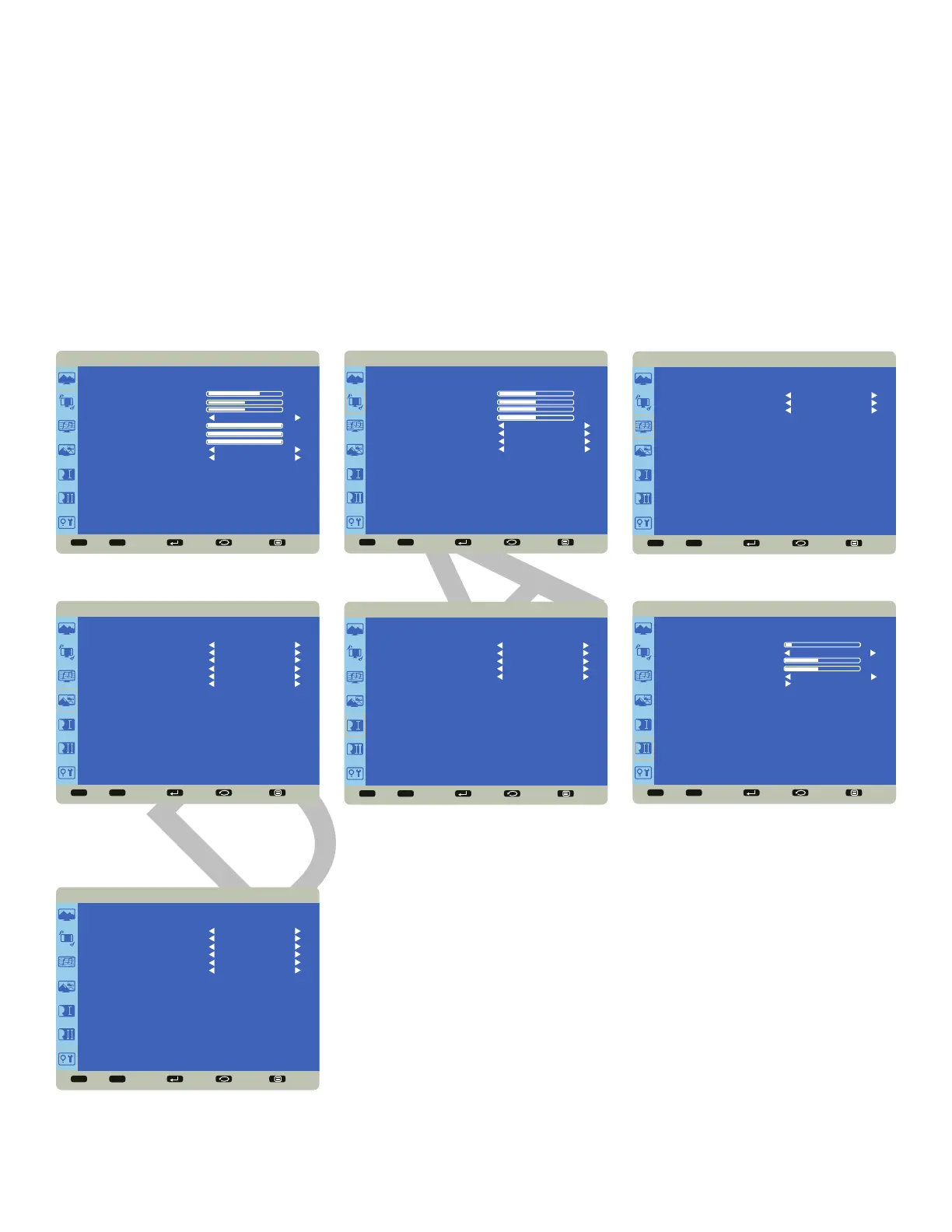

The following pages describe each of the OSD menus in detail.
Sel Adjust Enter Back Quit
< >
<
<
BRIGHTNESS
CONTRAST
SHARPNESS
COLOR TEMPERATURE
COLOR CONTROL
PICTURE MODE
PICTURE RESET
NATIVE
STANDARD
NO
70
50
50
100
100
100
RED
GREEN
BLUE
Sel Adjust Enter Back Quit
< >
<
<
SCREEN
H POSITION
V POSITION
CLOCK
CLOCK PHASE
BLANK
DIMMING
ASPECT RATIO
SCREEN RESET
50
50
50
50
OFF
70
WIDE
NO
Sel Adjust Enter Back Quit
< >
<
<
AUDIO
SPEAKER
AUDIO SOURCE
AUDIO RESET
INTERNAL
MONDOPAD
NO
Sel Adjust Enter Back Quit
< >
<
<
PIP
PIP MODE
PIP INPUT
PIP POSITION
PIP SWAP
PIP SIZE
PIP AUDIO
PIP RESET
NO
VGA
TOP-RIGHT
NO
SMALL
MAIN
NO
Sel Adjust Enter Back Quit
< >
<
<
CONFIGURATION 1
LANGUAGE
AUTO SOURCE
USB HUB SWITCH
CONFIGURATION RESET
FACTORY RESET
ENGLISH
NO
AUTO
NO
NO
Sel Adjust Enter Back Quit
< >
<
<
CONFIGURATION 2
OSD TURN OFF
FREEZE
OSD H POSITION
OSD V POSITION
OSD ROTATION
MONITOR INFORMATION
10
50
50
OFF
PORTRAIT
Sel Adjust Enter Back Quit
< >
<
<
ADVANCED OPTION
GAMMA SELECTION
OVER SCAN
IR CONTROL
KEYPAD CONTROL
DDC/CI
ADVANCED OPTION RESET
MODE1
ON
NORMAL
LOCK
ON
NO

InFocus INF6502WB Specifications

General

Panel life	- h
Pixel pitch	0.744 x 0.744 mm
Screen shape	Flat
Response time	6.5 ms
Backlight type	W-LED
Display diagonal	65 \
Touch technology	Multi-touch
Display brightness	350 cd/m²
Display technology	LED
LED backlighting type	Direct-LED
Supported video modes	1080p
Touchscreen technology	Capacitive
Contrast ratio (typical)	5000:1
Display number of colors	-
Viewing angle, horizontal	176 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
Number of simultaneous touchpoints	16
USB connector type	USB Type-A, USB Type-B
USB ports quantity	6
HDMI ports quantity	4
VGA (D-Sub) input ports	1
USB 2.0 Type-A ports quantity	5
Picture-in-Picture	No
Product color	Black
Panel mounting interface	400 x 400 mm
RMS rated power	20 W
Number of built-in speakers	2
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Operating temperature (T-T)	0 - 40 °C
Cables included	AC, USB, VGA

Weight and Dimensions

Depth	83.1 mm
Width	1520.5 mm
Height	895 mm
Weight	53500 g
