Intégration Guide_iUI120 16/58 Copyright © 2013 Ingenico
900016253 R11 000 01/1416 All rights reserved

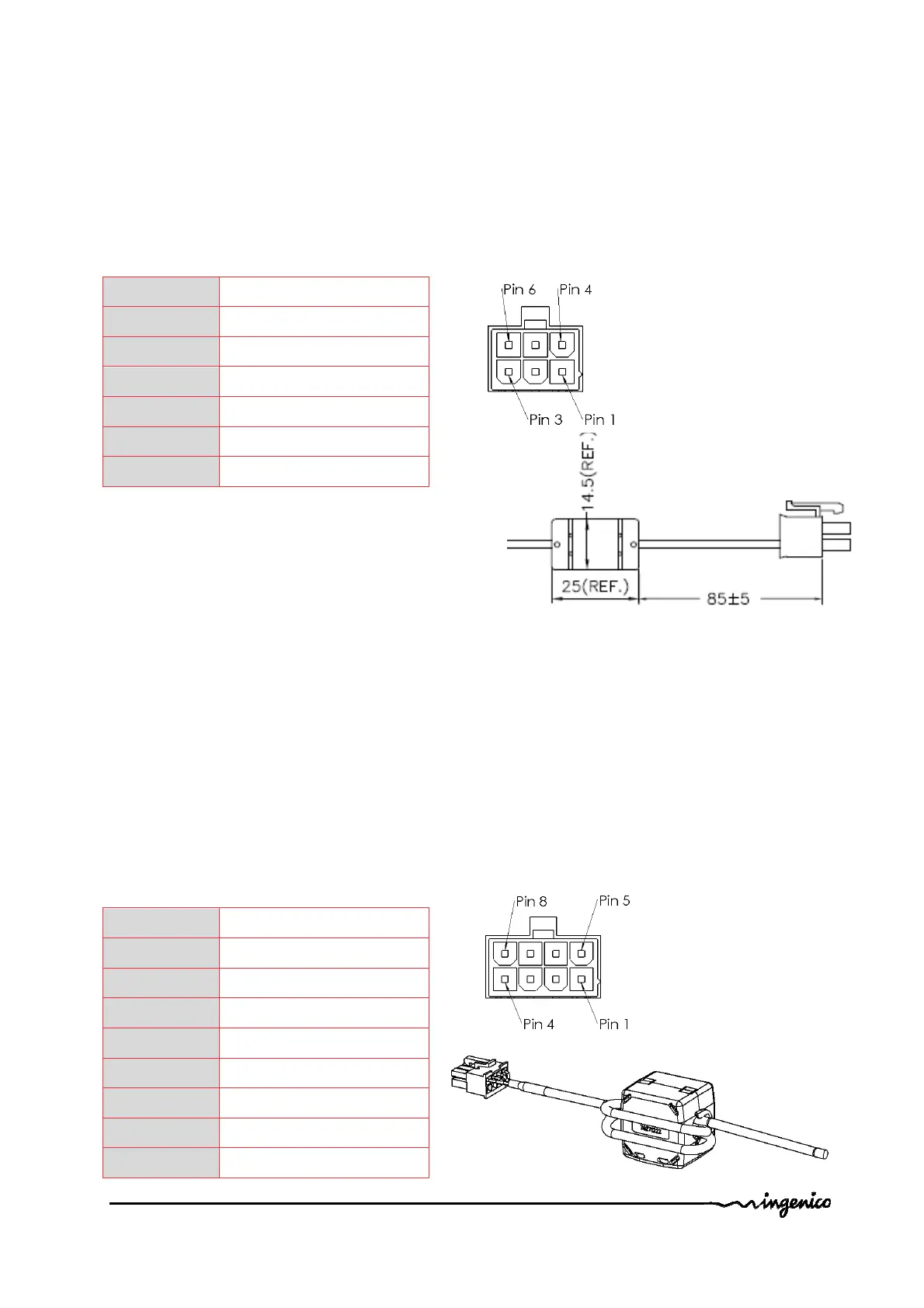

1.3.3.6 MDB Slave
iUI120 unit can be connected by MDB slave. The connector type is MDB 6 pins
(Mini – Fit series 87827 (MOLEX)).
iUI120 unit is powered on the MDB connectors by power supply 10 to 45V DC
(45V is a maximum).
A Würth ferrite ref 74270077 or
equivalent must be added on the power
cable.
1.3.3.7 MDB master (optional)
The iUI120 unit is powered on the MDB connectors by power supply 10 to 45V
DC (45V is a maximum). See below iUI120 unit can be connected by MDB master if
option available. The connector type is MDB master 8 pins (Mini – Fit series 87827
(MOLEX)).
iUI120 unit does not support EXE power supply. Specific accessory are
available.
A Würth ferrite ref 74271222 or equivalent must be added with two turns on the
cable.
Pin N° Function
1 Vin
2 GND
3 NC
4 MDBS_RXD
5 MDBS_TXD
6 MDBS_COMMUN
Pin N° Function
1 NC
2 NC
3 NC
4 NC
5 MDBM_RXD
6 ISO_GND
7 MDBM_TXD
8 ISO_GND
