6.1.3 Mounted vertically on a support using bolds or studs
Common installation may consider to use 2 weld studs or bolds. We suggest
using 2 diagonally opposite slots out of the 4of iUI120.
On the kiosk, 2 M4 studs Length 11-15 mm, bolds or holes must be done.

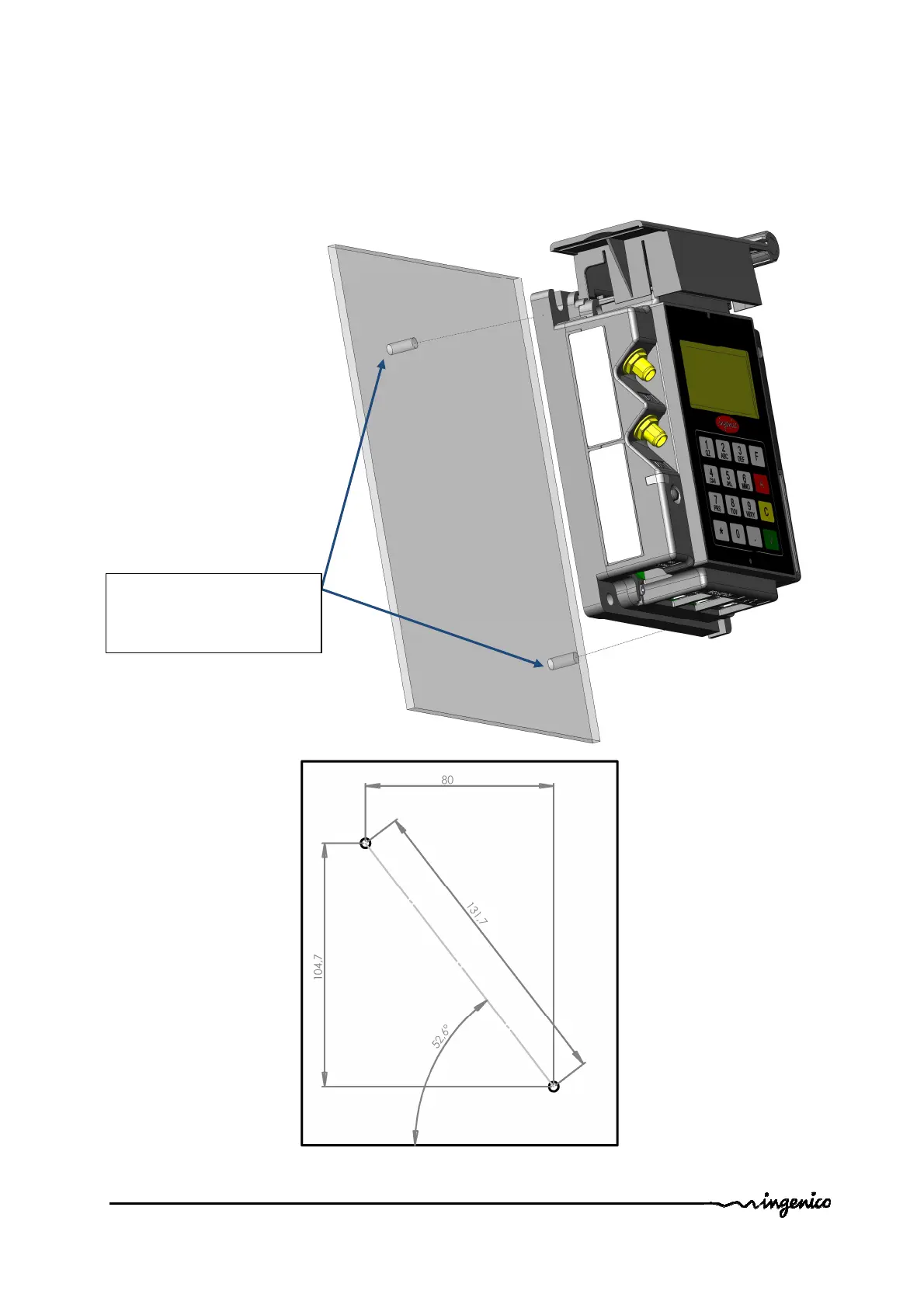

2 diagonally opposite
weld studs, bolds or
holes.
