6.1 INSTALLING THE IUI120 IN NEW KIOSK
6.1.1 Left horizontal on a shelve inside the kiosk
For this configuration, there is no specific recommendation.
6.1.2 Mounted vertically on a support using EVA standard
recommendation

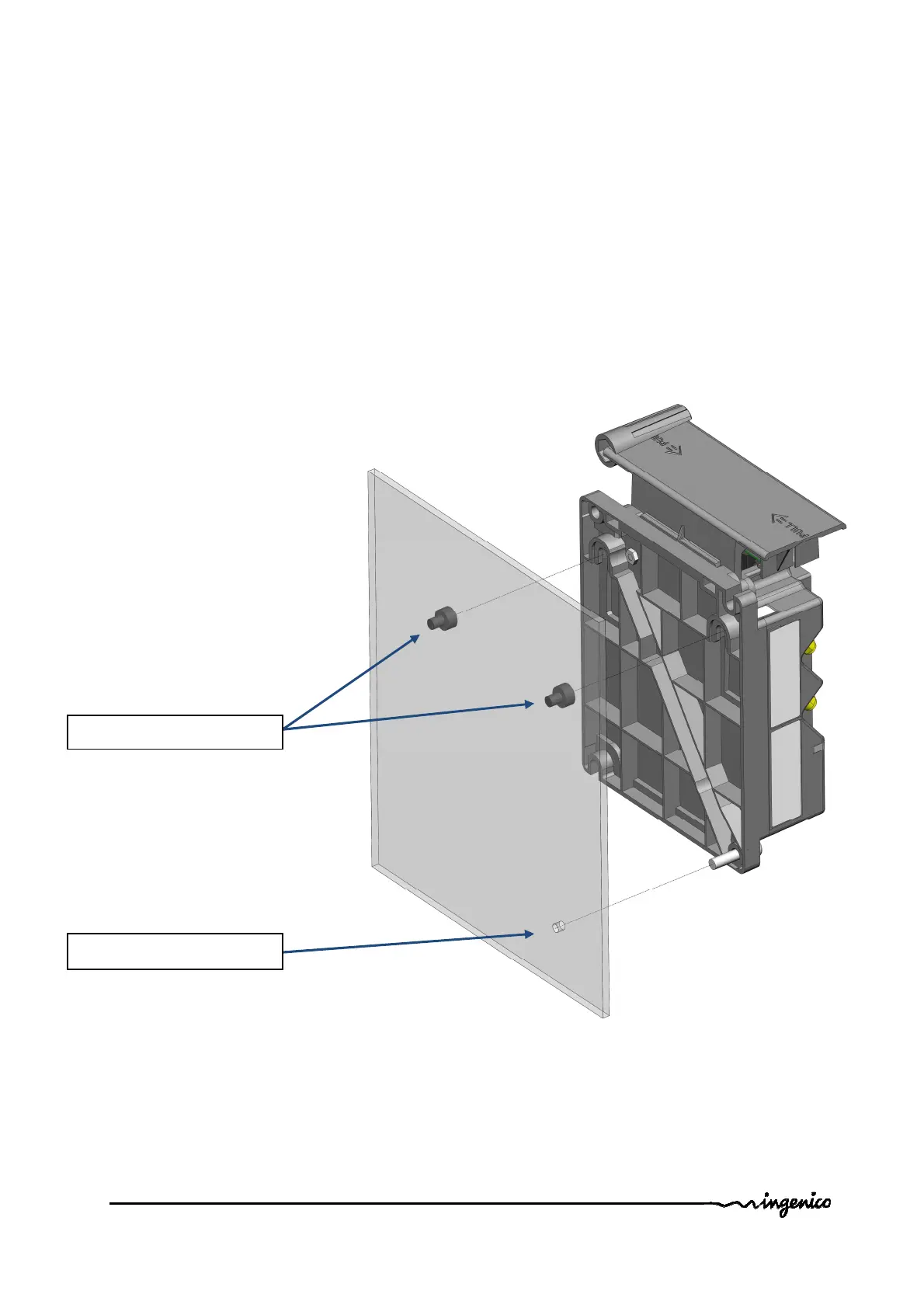

EVA recommends using 2 M4 cap bolts distant 68.4 mm to hold internal products.
In addition, we suggest making a M4 holes to lock the iUI120 wit a screw.
M4 optional lock
EVA mounting bolts
