6 ASSEMBLY PROCEDURE FOR IUI120
6.1 KIOSK MINIMUM VOLUME FOR IUI 120
The iUI120 requires a minimum volume inside the kiosk. It is detailed in the drawings
below. 3D design is available on demand.
6.1.1 Volume for iUI 120 without cable gasket
The minimum volume is 95.4 mm width x 115 mm height x 43 mm deep.

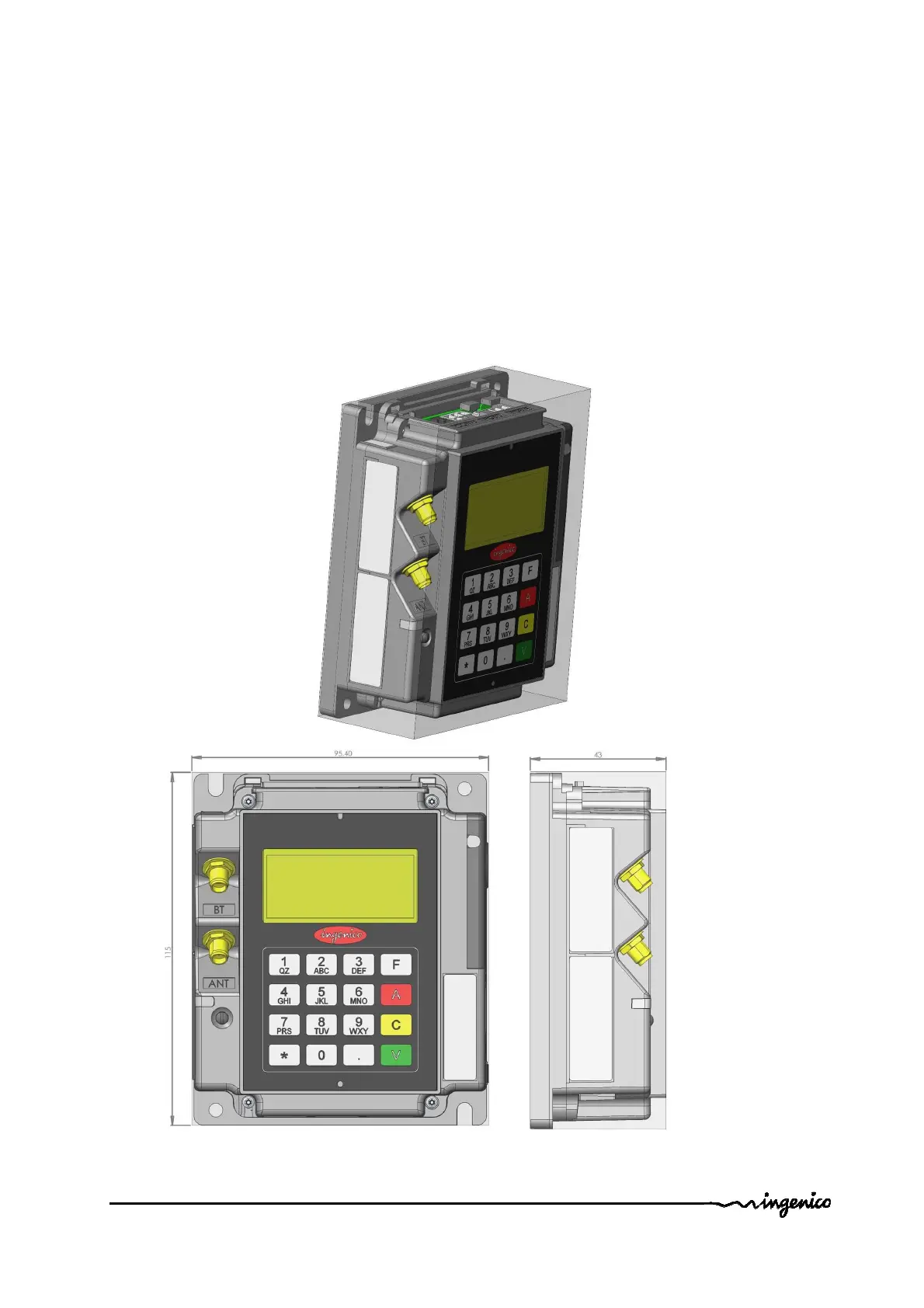

Picture of iUI 120 without cable gasket minimum volume
