1.3.3.17 Antenna Installation
A tool is provided to help screwing the external antenna.
1. Remove the antenna tool from the cable sleeve.
2. Insert the SMA antenna cable through the slot of the antenna tool.
3. Slide the antenna tool over the SMA Cable connector.
4. Screw the cable.

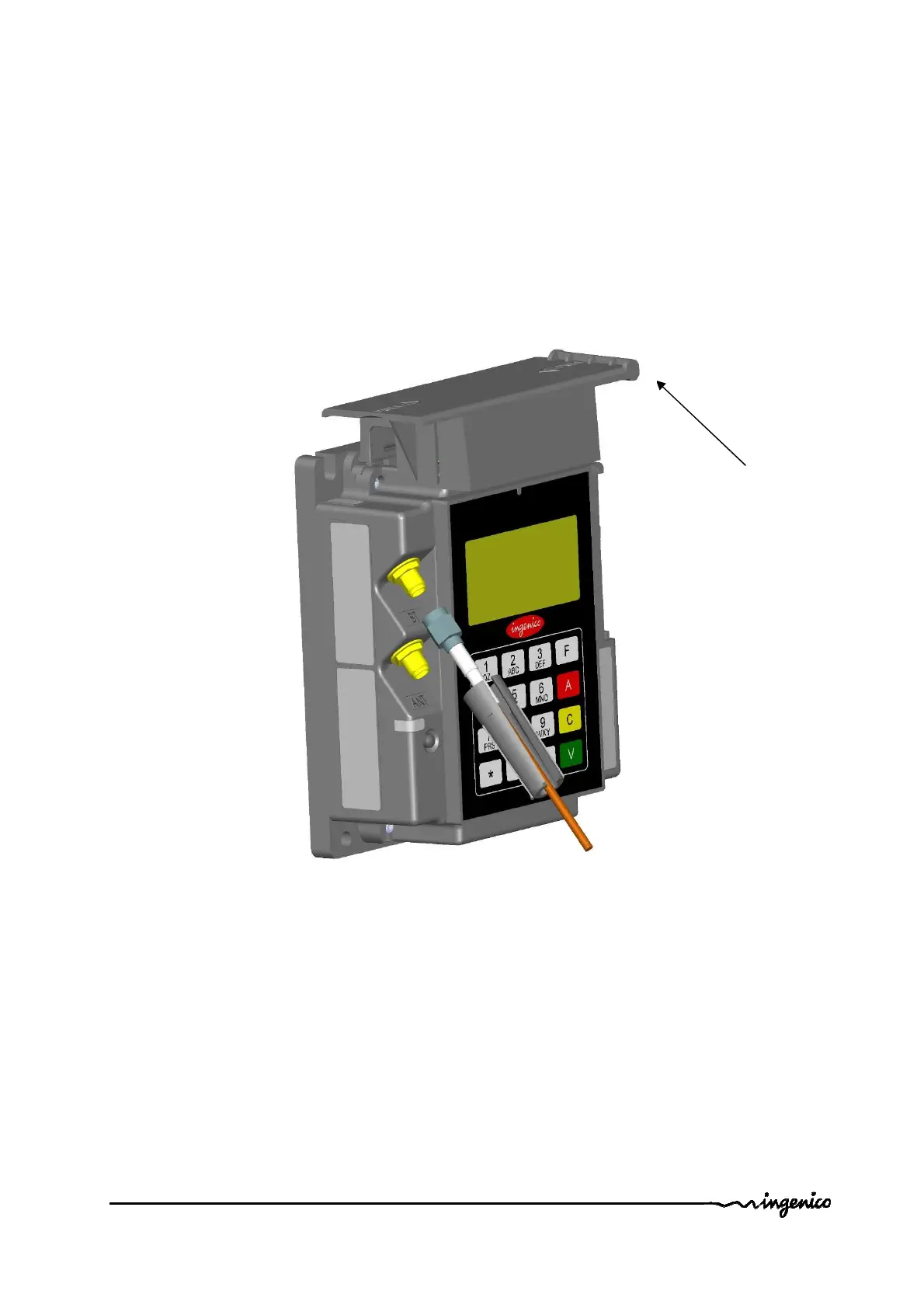

Antenna
tool rest
position
