3.1.1 Software Architecture

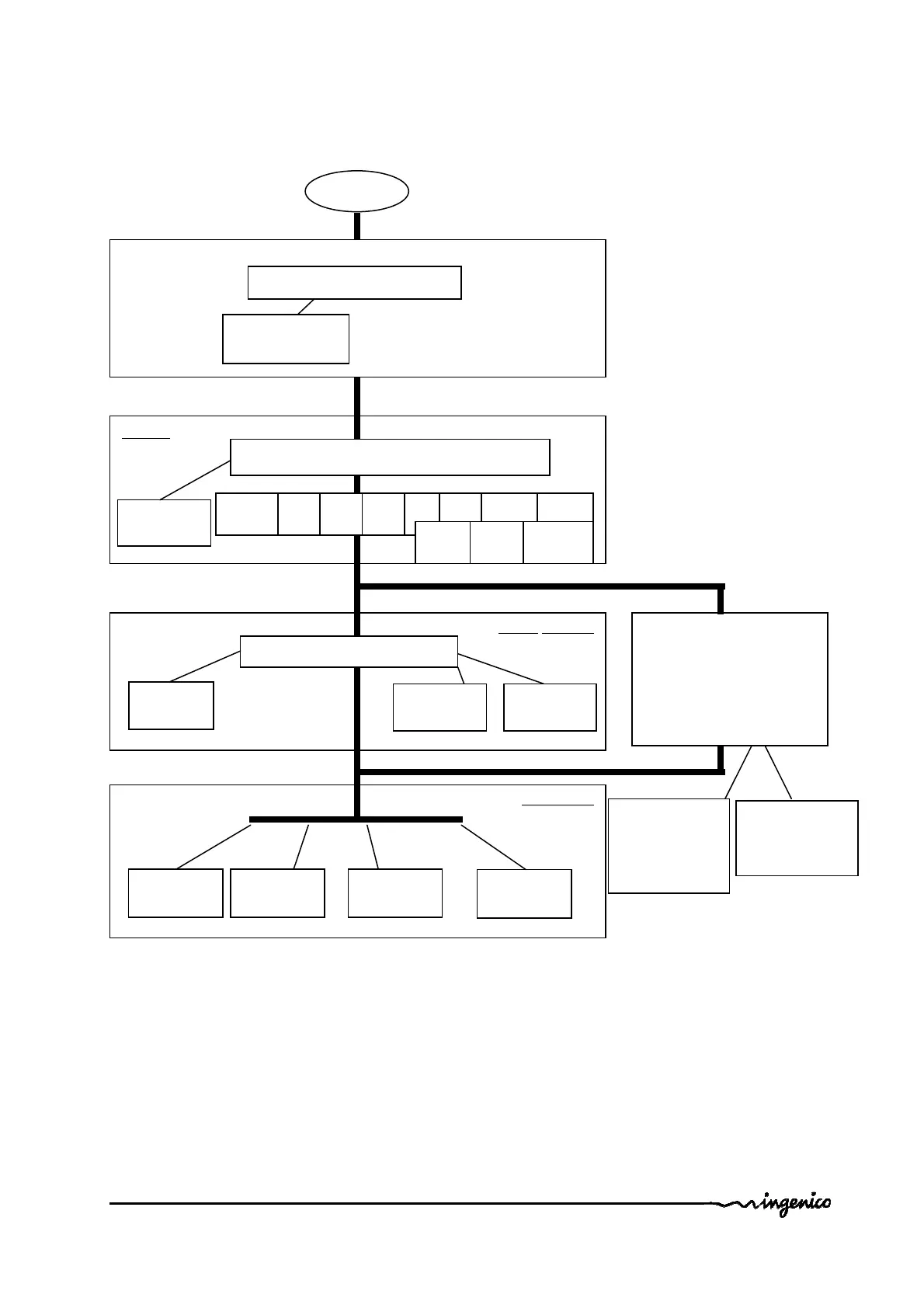

The software architecture is divided into levels:
• System
• Multi-application manager
• Universal Controller Module Component (UCMC)
• Independent applications
Telium
manager
System
Applications
Resident
loading
Bootstrap
Power up
Operating system
Local loading
Application manager
Downloading
Remote
diagnostics
Local
diagnostics
Appli 2 CB Appli Appli 3
Appli n
UCMC
UCM component
Transaction
Flow
Management
USB slave/
PSU 5V
Memory µSD SAM Display Keypad USB COM
Ethernet GPRS
MDB
Bluetooth
