Intégration Guide_iUI120 49/58 Copyright © 2013 Ingenico
900016253 R11 000 01/1416 All rights reserved
Details of EVA mounting
EVA M4 cap bolts. Can be weld or screwed
on the kiosk.

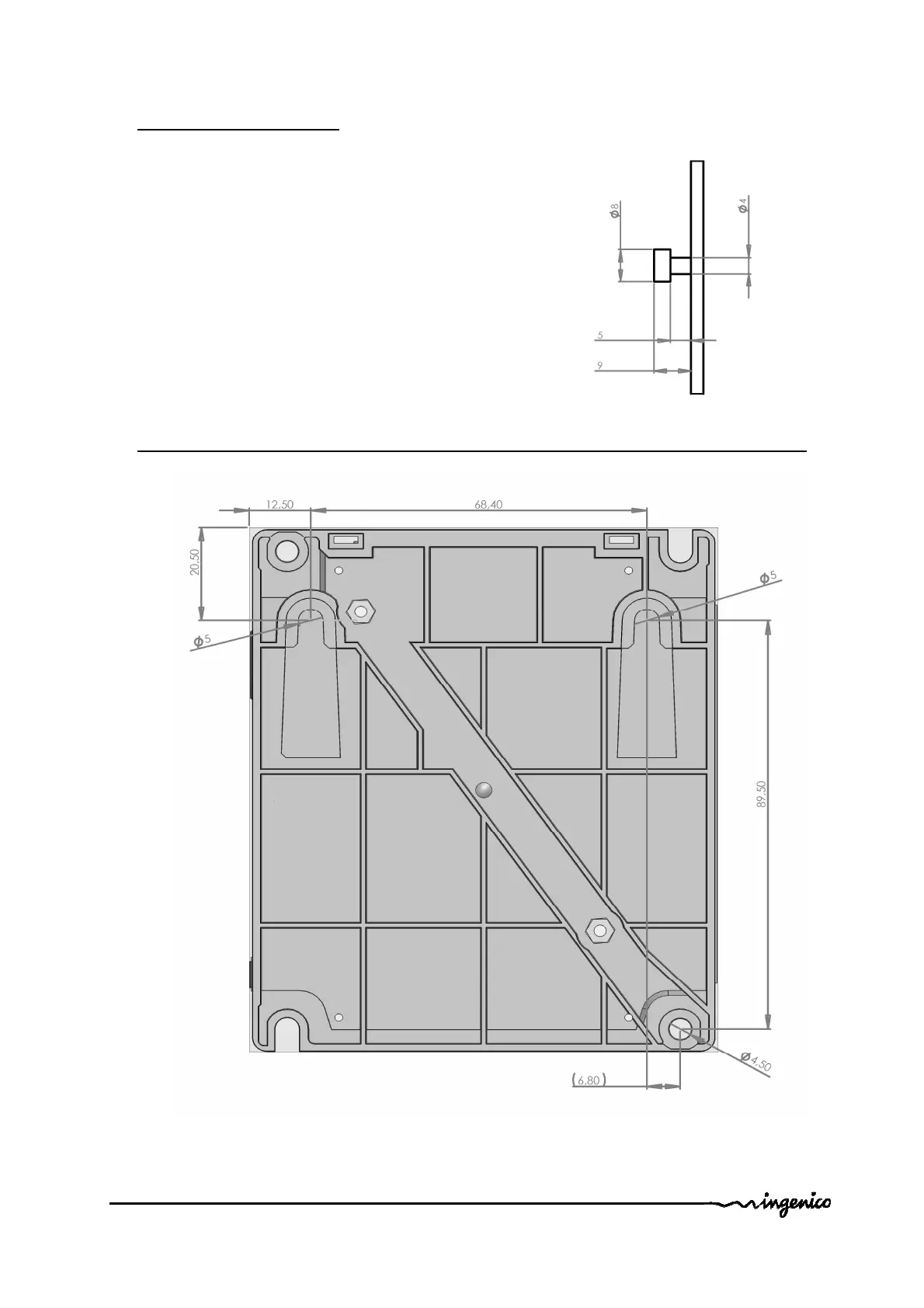

Dimensions on the iUI120 regarding position of the receptacles for EVA M4 bolts.
Picture showing a new installation of the iUI120
