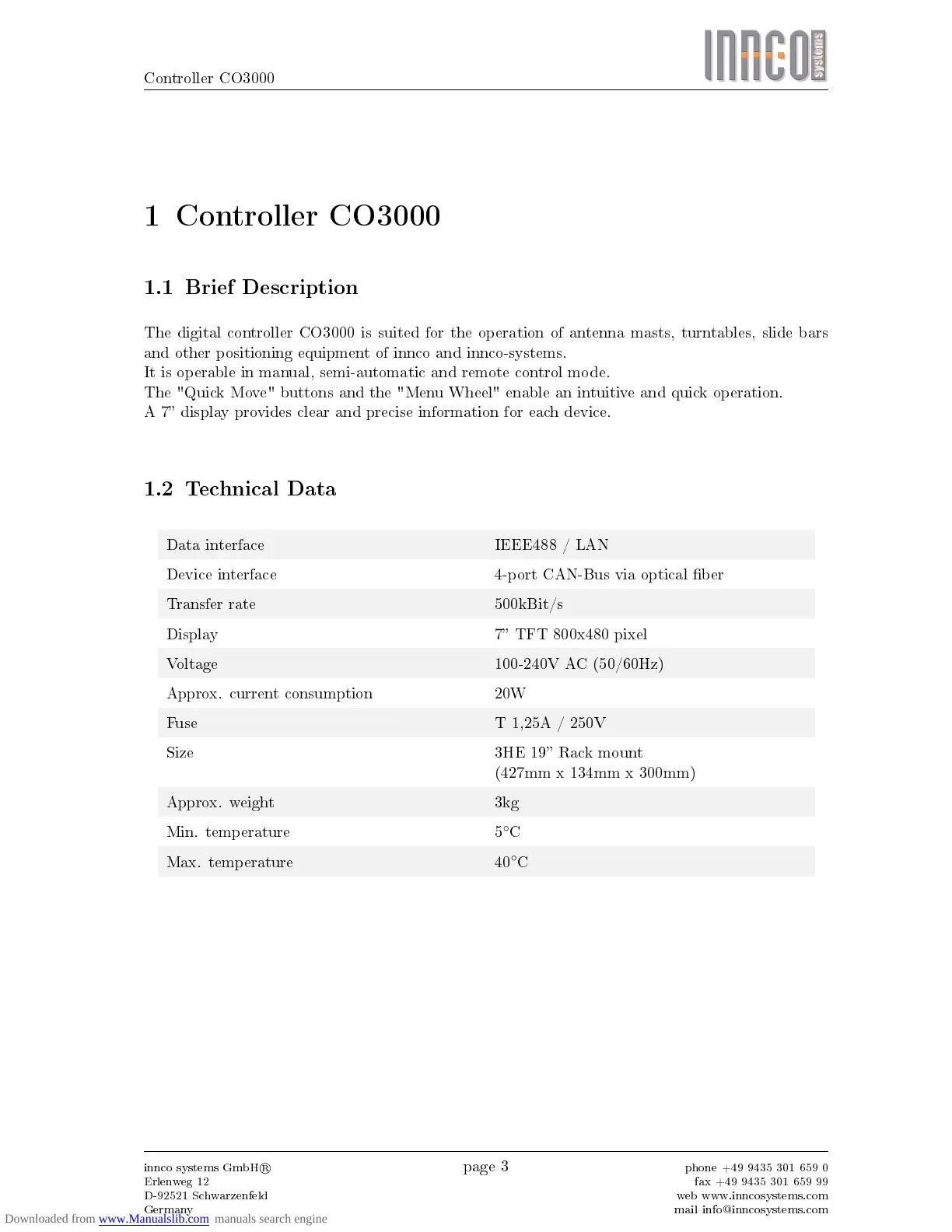

Controller CO3000
1 Controller CO3000
1.1 Brief Description
The digital controller CO3000 is suited for the operation of antenna masts, turntables, slide bars
and other positioning equipment of innco and innco-systems.
It is operable in manual, semi-automatic and remote control mode.
The "Quick Move" buttons and the "Menu Wheel" enable an intuitive and quick operation.
A 7 display provides clear and precise information for each device.
1.2 Technical Data
Data interface IEEE488 / LAN
Device interface 4-port CAN-Bus via optical ber
Transfer rate 500kBit/s
Display 7 TFT 800x480 pixel
Voltage 100-240V AC (50/60Hz)
Approx. current consumption 20W
Fuse T 1,25A / 250V
Size 3HE 19 Rack mount
(427mm x 134mm x 300mm)
Approx. weight 3kg
Min. temperature 5
◦
C
Max. temperature 40
◦
C
innco systems GmbH
R
Erlenweg 12
D-92521 Schwarzenfeld
Germany
page 3
phone +49 9435 301 659 0
fax +49 9435 301 659 99
web www.inncosystems.com
mail info@inncosystems.com
