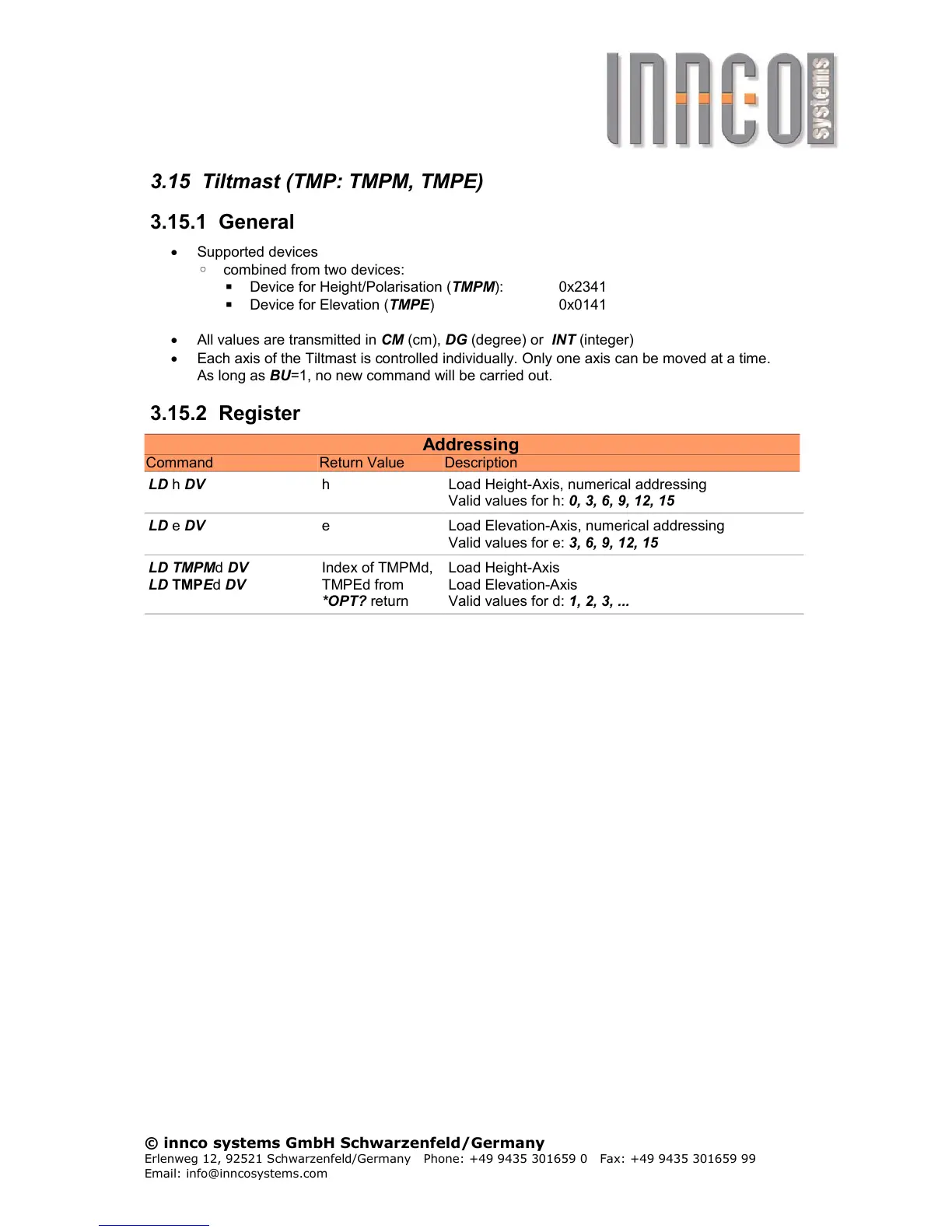

Innco CO3000 - Tiltmast (TMP: TMPM, TMPE)

3.15 Tiltmast (TMP: TMPM, TMPE)
3.15.1 General
 Supported devices
◦ combined from two devices:
▪ Device for Height/Polarisation (TMPM): 0x2341
▪ Device for Elevation (TMPE) 0x0141
 All values are transmitted in CM (cm), DG (degree) or INT (integer)
 Each axis of the Tiltmast is controlled individually. Only one axis can be moved at a time.
As long as BU=1, no new command will be carried out.
3.15.2 Register
Addressing
Command Return Value Description
LD h DV h Load Height-Axis, numerical addressing
Valid values for h: 0, 3, 6, 9, 12, 15
LD e DV e Load Elevation-Axis, numerical addressing
Valid values for e: 3, 6, 9, 12, 15
LD TMPMd DV
LD TMPEd DV
Index of TMPMd,
TMPEd from
*OPT? return
Load Height-Axis
Load Elevation-Axis
Valid values for d: 1, 2, 3, ...
