Inovance Monarch NICE-L-C-4037F

3 Peripheral Devices and Options
-
125
-
2. Port description

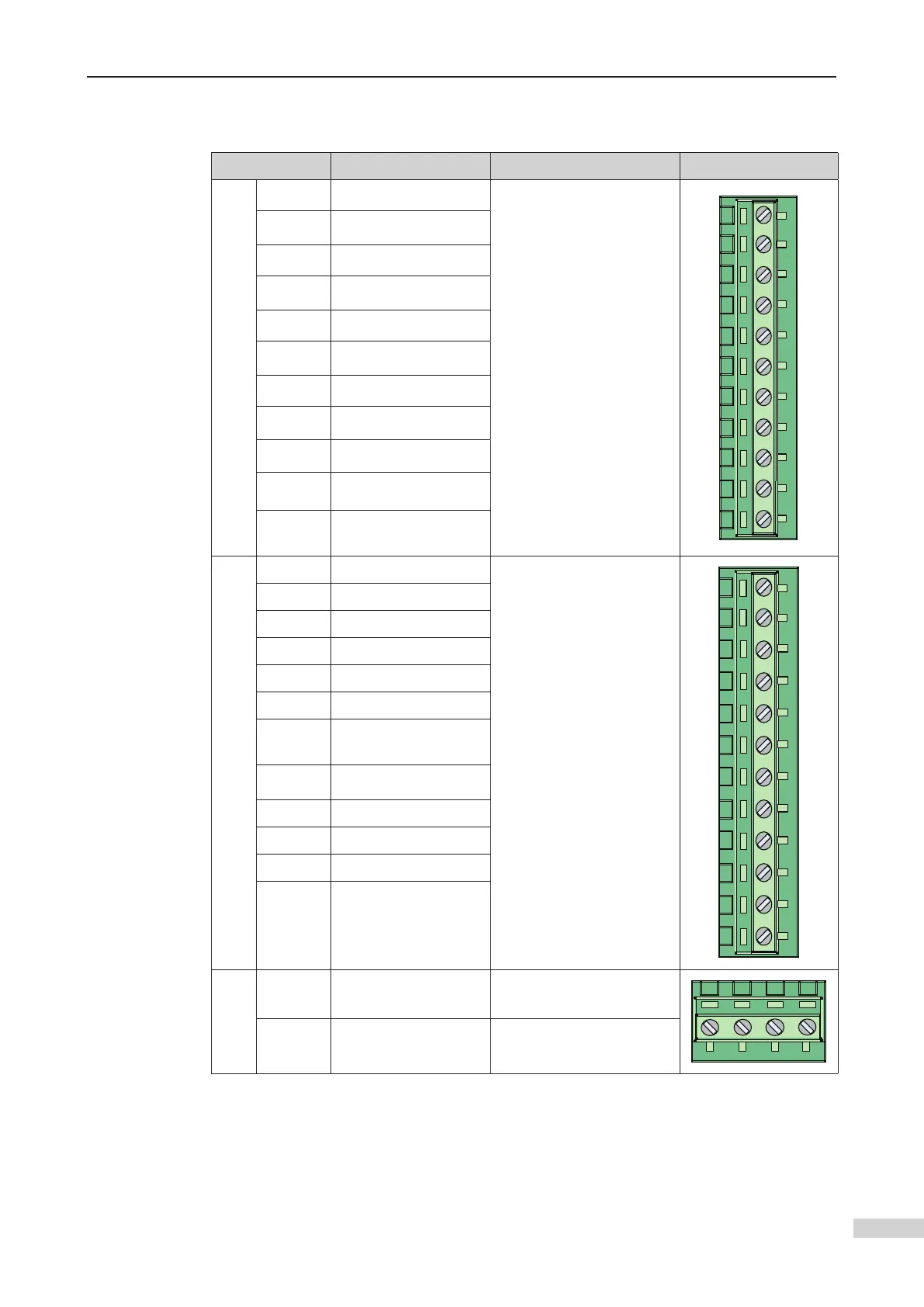

󶙽Terminals of the MCTC-KZ-G1
Terminal ID Terminal Name Function description Terminal Layout
J11
X1 DI 1
DI
Rated voltage: 30 V
Rated current: 5 mA
X2 DI 2
X3 DI 3
X4 DI 4
X5 DI 5
X6 DI 6
X7 DI 7
X8 DI 8
X9 DI 9
X10 DI 10
M24V
External 24 V power
input
J1
Y1 Relay output Y1
Relay output terminal
Contact current capacity:
250 VAC, 5 A
Y2 Relay output Y2
Y3 Relay output Y3
Y4 Relay output Y4
Y5 Relay output Y5
Y6 Relay output Y6
YM1
Reference ground of
relay outputs Y1 to Y6
Y7 Relay output Y7
Y8 Relay output Y8
Y9 Relay output Y9
Y10 Relay output Y10
YM2
Reference ground of
relay outputs Y7 to
Y10
J12
+24V/
COM
External 24 VDC power
supply
External 24 V power supply
CAN+/
CAN-
Reserved CAN
communication port
Connecting the MCB for
CANbus communication
