3 Peripheral Devices and Options
-
93
-
Physical dimensions of 150-330A AC input reactor
R
S
T
X
Y
Z
X
R
A
B
C
D
E
F
G
H
I
J
K
L
M
B

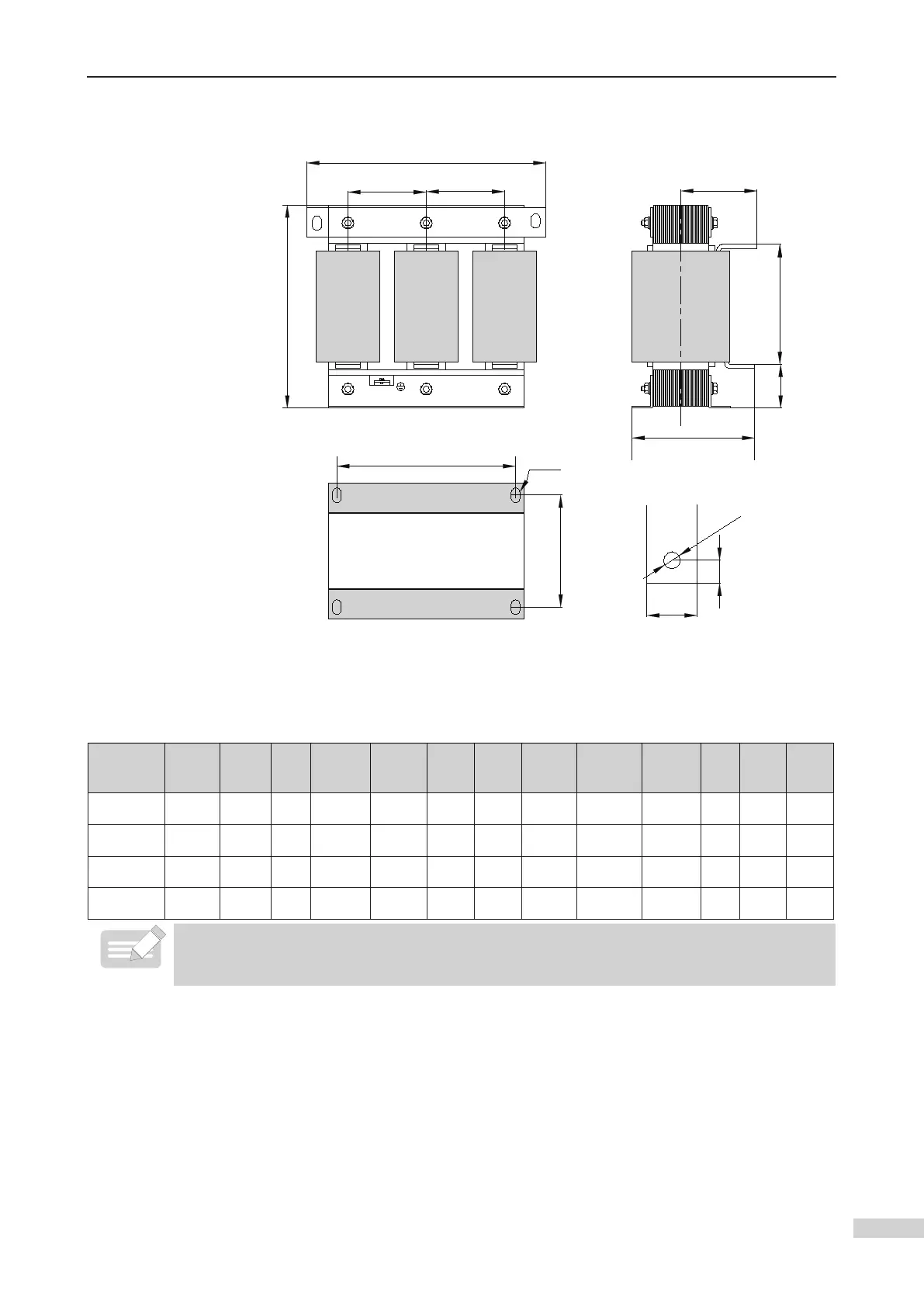

󶙽Physical dimension diagram of 150-330A AC input reactor
󶙽Physical dimensions of 150-330A AC input reactor
Rated
Current (A)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
G
(mm)
H
(mm)
I
(mm)
J
(mm)
K
(mm)
L
(mm)
M
(mm)
150 250 81 ± 5 230 92 ± 10 145 ± 5 38 ± 5 155 182 ± 1  76 ± 2  13 25
200 250 81 ± 5 230 102 ± 10 145 ± 5 40 ± 5 175 182 ± 1  96 ± 2  13 25
250 250 81 ± 5 260 102 ± 10 160 ± 5 50 ± 5 175 182 ± 1  96 ± 2  13 25
330 290 95 ± 5 275 107 ± 10 160 ± 5 60 ± 5 180 214 ± 1  100 ± 2  15 30
NOTE
◆
The dimensions of the AC reactors provided here are for reference only, and the actual
dimensions are subject to the material product.
