Connecting the AV controller—Continued
Audio Connection Formats
Audio equipment can be connected to the AV
controller by using any of the following audio
connection formats: analog, optical, coaxial, ana-
log multichannel, or HDMI.
When choosing a connection format, bear in
mind that the AV controller does not convert dig-
ital input signals for analog line outputs and vice
versa. For example, audio signals connected to
an optical or coaxial digital input are not output
by the analog TV/TAPE OUT.
If signals are present at more than one input, the inputs will be selected automatically in the following order of priority:
HDMI, digital, analog.
*
1
DVD/BD player, etc.
AV controller
TV, projector, etc.

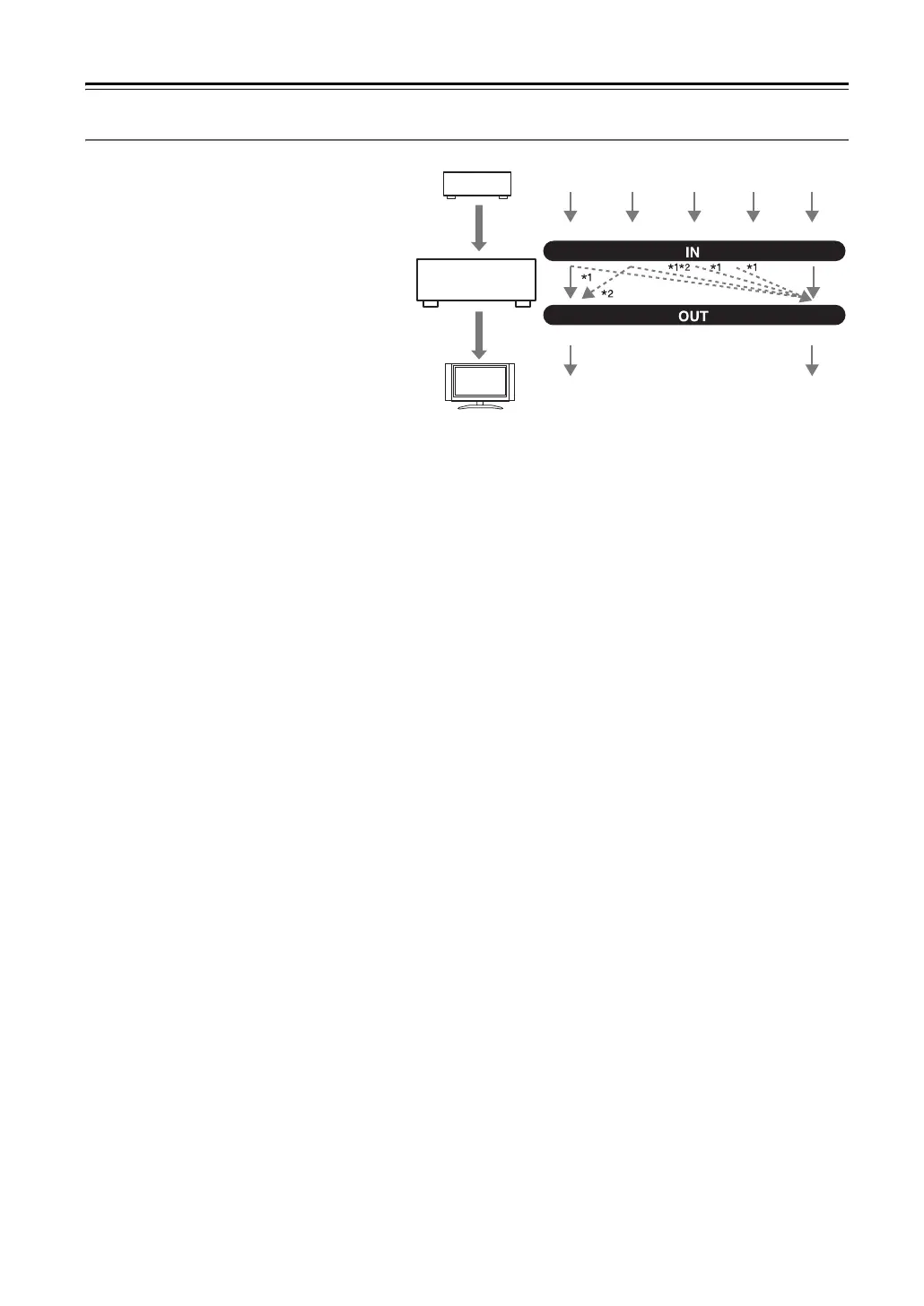

Audio Signal Flow Chart
HDMI Analog
*1 Depends on the “Audio TV Out” setting (see
page 115).
*2 Only the front L/R channels are output.
Optical CoaxialMultichannelAnalog HDMI
To Next Page
