9
Front & Rear Panels—Continued
The page numbers in parentheses show where you can find the main explanation for each item.
q Arrow, Tuning, Preset and Enter buttons
When the AM or FM input source is selected, the
Tuning [q]/[w] buttons are used to tune the tuner,
and the Preset [e]/[r] buttons are used to select
radio presets (see pages 66 and 79).
When the onscreen setup menus are used, they work
as arrow buttons and are used to select and set
items. The [Enter] button is also used with the
onscreen setup menus.
r Return button
This button is used to return to the previously dis-
played onscreen setup menu.
s Master Volume control (60)
This control is used to adjust the volume of the AV
controller to –Q dB, –81.5 dB through +18.0 dB
(relative display).
The volume level can also be displayed as an abso-
lute value. See “Volume Setup” on page 112.
t Zone 2 and Off buttons (136)
The [Zone 2] button is used to select Zone 2.
The [Off] button is used to turn off the output of
Zone 2.
u Zone 3 and Off buttons (136)
The [Zone 3] button is used to select Zone 3.
The [Off] button is used to turn off the output of
Zone 3.
v Phones jack (62)
This 1/4-inch phone jack is for connecting a stan-
dard pair of stereo headphones for private listening.
w Setup Mic jack (55)
Audyssey MultEQ
®
XT Room Correction and
Speaker Setup microphone connects here.
x Zone Level Down and Up [w]/[q] buttons
(137)
Used when adjusting the volume level of Zone 2 or
Zone 3.
y Input selector buttons (60)
These buttons are used to select from the following
input sources: DVD/BD, VCR/DVR, CBL/SAT,
Game, AUX1, AUX2, TV/Tape, Tuner, CD, Phono,
Port, Net/USB.
z USB port (129)
A USB mass storage device, such as a USB flash
drive or MP3 player, containing music files can be
plugged in here and the music selected can be
played through the AV controller.
A AUX1 Input (36)
This input can be used to connect a camcorder,
game console, and so on. There are jacks for com-
posite video, analog audio, and optical digital audio.
AUX1 Input HDMI (25)
Used to connect an HD camcorder etc.
For detailed information, see the pages in parentheses.
a Speaker/channel indicators
Indicate the speaker channels used by the current
listening mode.
The following abbreviations indicate which audio
channels are outputted for the current listening
mode.
b Listening mode and format indicators (84)
Show the selected listening mode and audio input
signal format.
Audyssey (54, 100):
Flashes during Audyssey MultEQ
®
XT Room Cor-
rection and Speaker Setup. Lights when the “Equal-
izer Settings” is set to “Audyssey” or
Audyssey Dynamic Surround Expansion™ listen-
ing mode is selected.

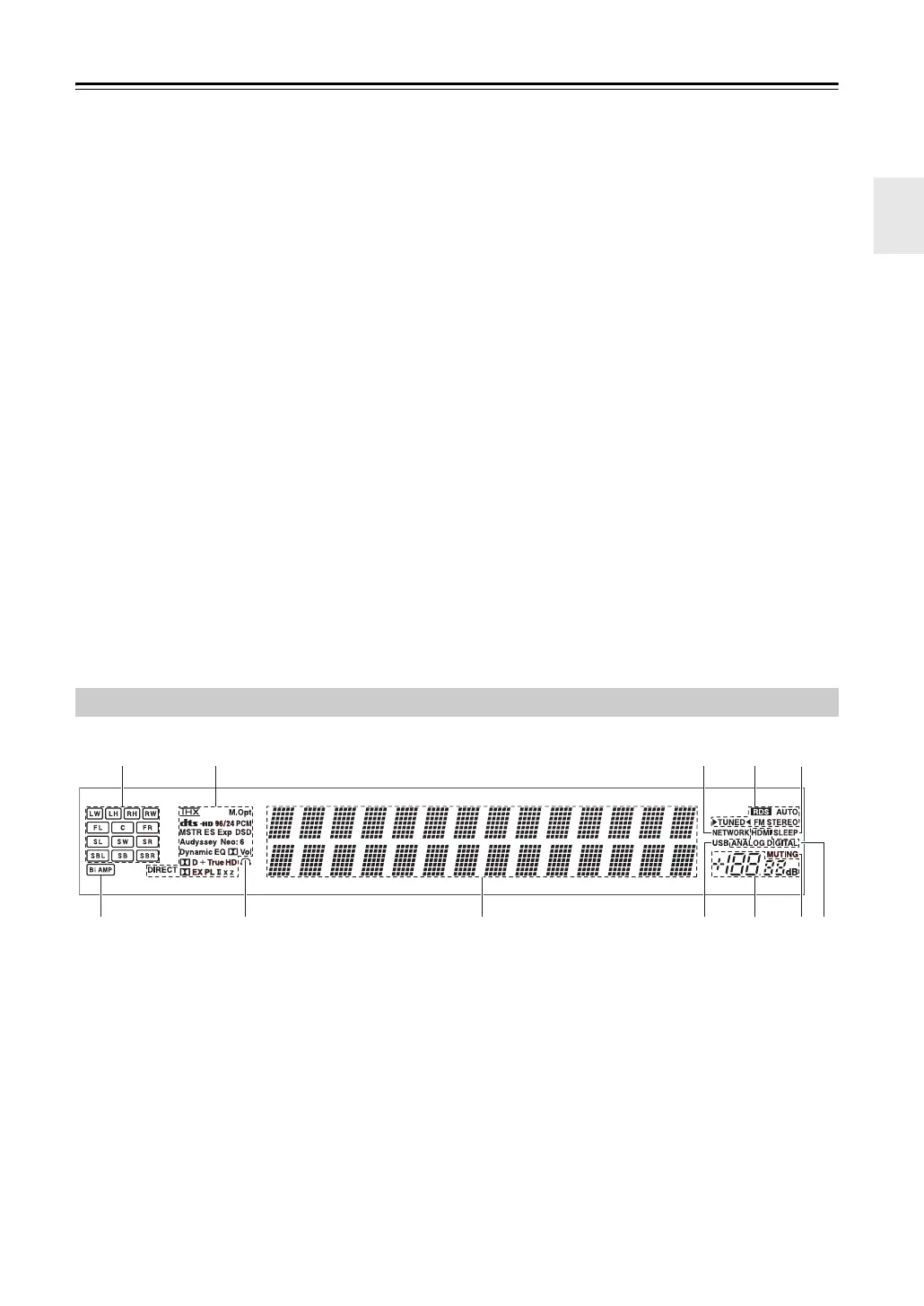

Display
bed
g
f
ac
i
j
k
l
h
LW: Front wide left
LH: Front high left
RH: Front high right
RW: Front wide right
FL: Front left
C: Center
FR: Front right
SL: Surround left
SW: Subwoofer (Low Frequency Effects)
SR: Surround right
SBL: Surround back left
SB: Surround back
SBR: Surround back right
