Connecting the AV controller—Continued
With this hookup, you can use your satellite or cable receiver to listen to your favorite TV programs
via the AV controller, useful if your TV has no audio outputs.
• With connection , you can listen to and record audio from the video source or listen in Zone 2 or Zone 3.
• To enjoy Dolby Digital and DTS, use connection or . (To record or listen in Zone 2 or Zone 3 as well, use
and , or and .)
Connecting a Satellite, Cable, Terrestrial Set-top box, or Other Video Source

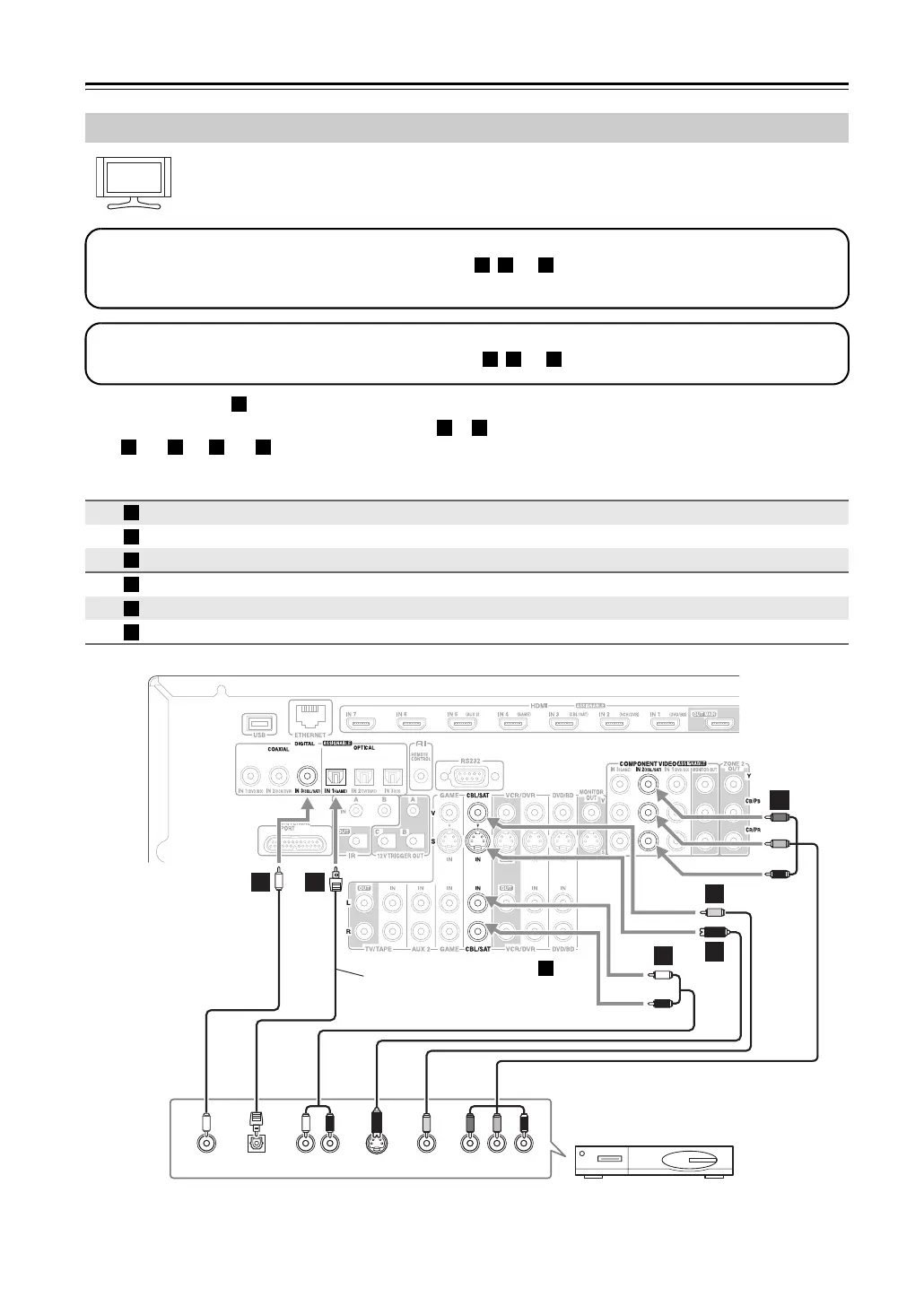

Connection AV controller Signal flow Video source
COMPONENT VIDEO IN 2 (CBL/SAT) ⇐ Component video output
CBL/SAT IN S ⇐ S-Video output
CBL/SAT IN V ⇐ Composite video output
CBL/SAT IN L/R ⇐ Analog audio L/R output
DIGITAL COAXIAL IN 3 (CBL/SAT) ⇐ Digital coaxial output
DIGITAL OPTICAL IN 1 (GAME) ⇐ Digital optical output
Hint!
Step 1: Video Connection
Choose a video connection that matches the video source ( , , or
), and then make the connection.
You must connect the AV controller to your TV via the same type of connection.
A B C
Step 2: Audio Connection
Choose an audio connection that matches the video source ( , , or ), and then make the connection.
a b c
a
b c
a b a c
A
B
C
a
b
c
COAXIAL
OUT
OPTICAL
OUT
AUDIO
OUT
L R
S VIDEO
OUT
VIDEO
OUT COMPONENT VIDEO OUT
Y PB PR
a
b
c
C
B
A
Satellite, cable,
set-top box, etc.
When you use connection , you
need to assign the digital audio
input (see page 49).
c
