Connecting Your Components—Continued

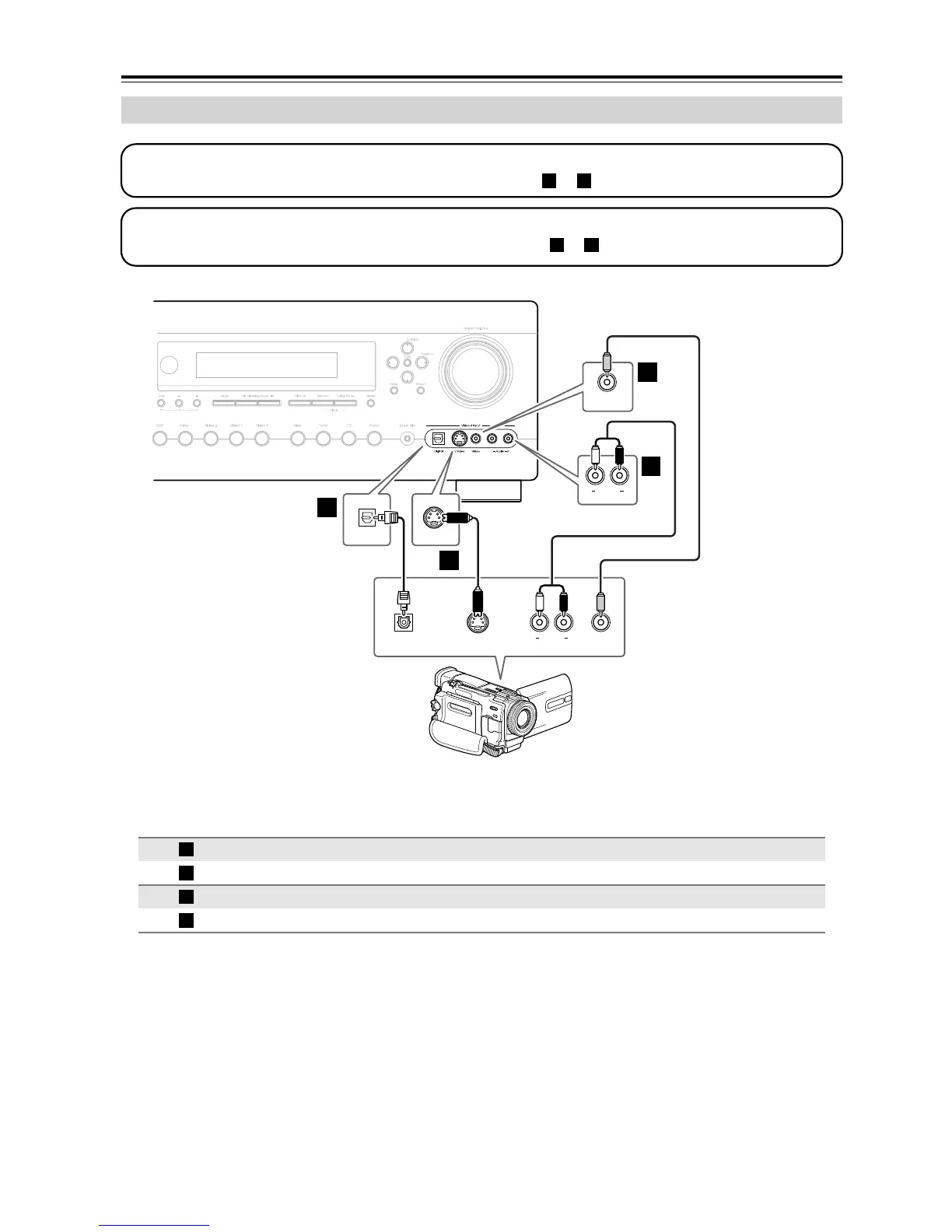

Connecting a Camcorder, Games Console, or Other Device
Connection AV receiver Signal flow Camcorder or console
Video 4 Input S Video
⇐
S-Video output
Video 4 Input Video
⇐
Composite video output
Video 4 Input L/R
⇐
Analog audio L/R output
Video 4 Input Digital
⇐
Digital optical output
Step 1: Video Connection
Choose a video connection that matches the camcorder or console ( or ), and then make the connection.
A
B
Step 2: Audio Connection
Choose an audio connection that matches the camcorder or console ( or ), and then make the connection.
a b
Digital S Video
Input Input
OPTICAL
OUT
Audio
Input
Video
Input
LR
S VIDEO
OUT
AUDIO
OUT
VIDEO
OUT
LR
b
A
a
B
Camcorder, games console, etc.
A
B
a
b
