Getting to Know the AV Receiver—Continued
T Input selector buttons (46)
Select the following input sources: Multi CH, DVD,
Video 1, Video 2, Video 3, Video 4, Tape, Tuner,
CD, or Phono.
The [Multi CH] button selects the multichannel
DVD input.
U Setup Mic (38)
The automatic speaker setup microphone connects
here.
V Video 4 Input (32, 60)
Used to connect a camcorder, game console, and so
on. There are jacks for optical digital audio,
S-Video, composite video, and analog audio.
For detailed information, see the pages in parentheses.
1 MUTING indicator (54)
Flashes while the AV receiver is muted.
2 ZONE 2 indicator (80)
Lights up when Zone 2 is on.
3 Listening mode and format indicators (56)
Show the selected listening mode and the format of
digital input signals.
4 Tuning indicators (47)
TUNED (47): Lights up when tuned to a radio sta-
tion.
AUTO (47): For AM and FM radio, lights up when
Auto Tuning mode is selected, and disappears when
Manual Tuning mode is selected.
MEMORY (52): Lights up when presetting radio
stations.
FM STEREO (47): Lights up when tuned to a ste-
reo FM station.
5 SLEEP indicator (55)
Lights up when the Sleep function has been set.
6 Message area
Displays various information about the selected
input source.

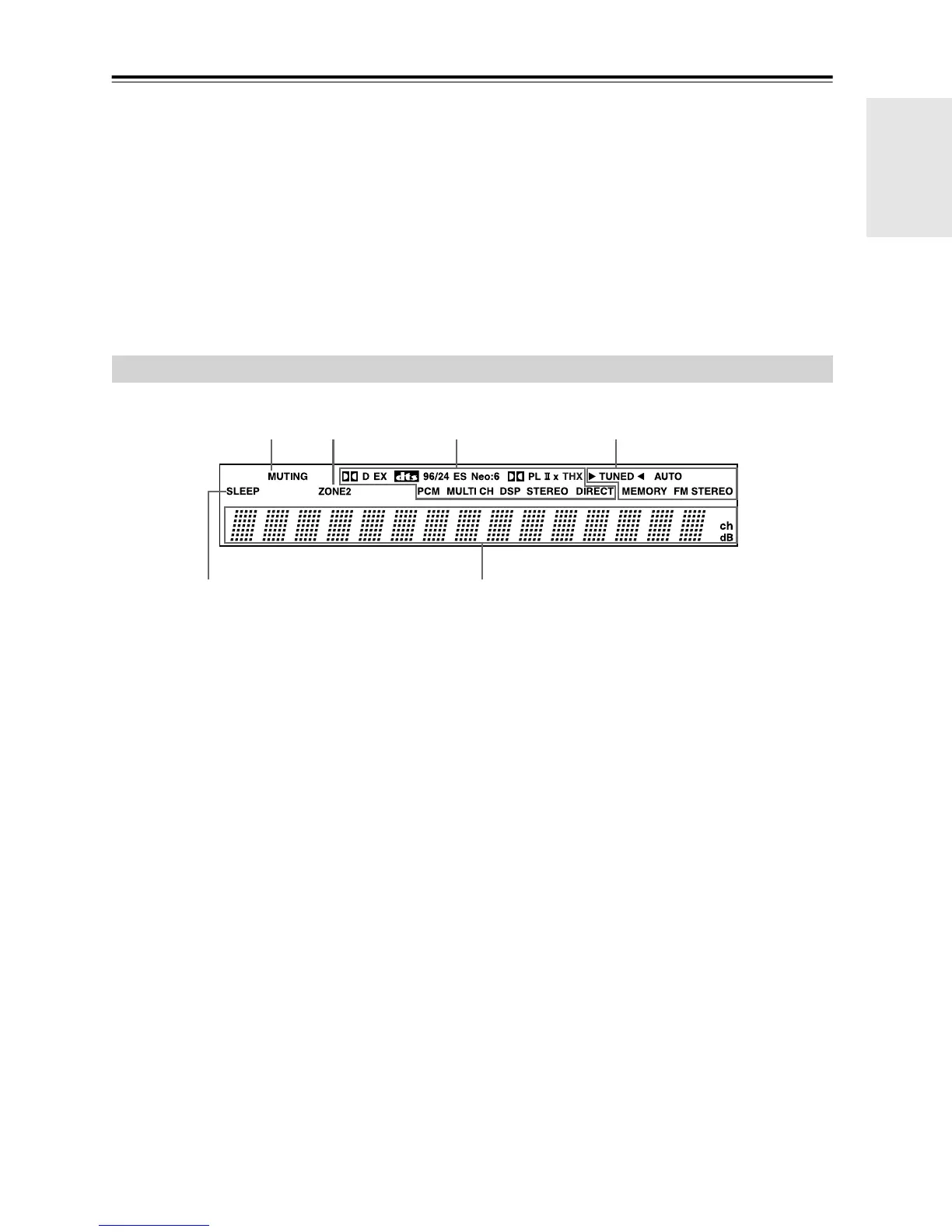

Display
2134
