Design and Environmental Specifications Intel® Server Boards S5520HC, S5500HCV, and S5520HCT TPS
Revision 1.8
Intel order number E39529-013
134
Table 79. Output Voltage Timing
Item Description Minimum Maximum Units
Tvout_rise Output voltage rise time from each main output. 5.0 1 70 1 ms
Tvout_rise All main outputs must be within regulation of each other within this
time.
N/A 50 ms
Tvout_rise All main outputs must leave regulation within this time. N/A 400 ms
1. The 5 VSB output voltage rise time is from 1.0 ms to 25 ms
TP02313
V out
V1
V2
V3
V4
T
vout_on
T
vout_rise
10% V out
T
vout_off

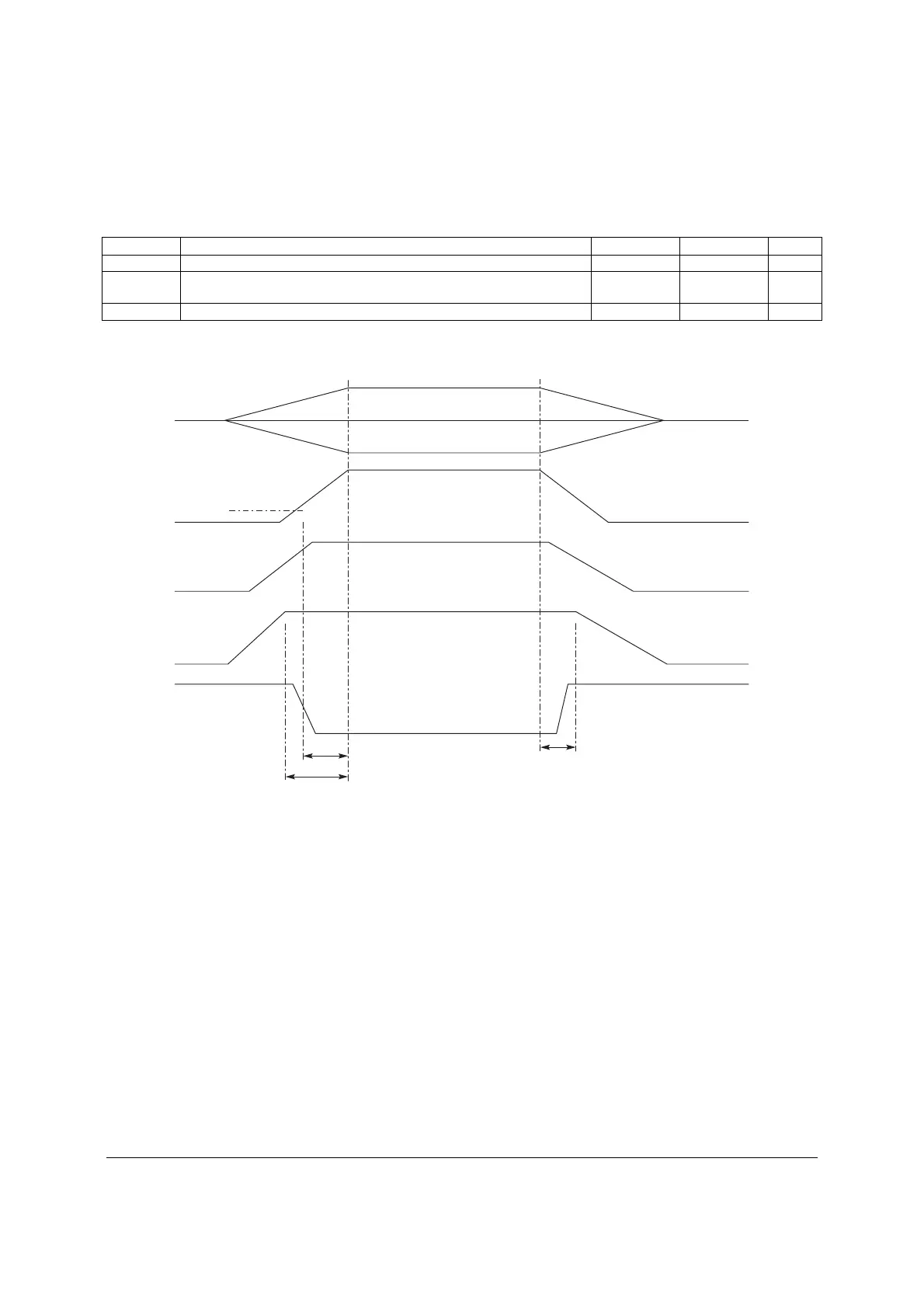

Figure 60. Output Voltage Timing
