Intel® Server Boards S5520HC, S5500HCV, and S5520HCT TPS Functional Architecture
Revision 1.8
Intel order number E39529-013
19
Figure 14. Intel
®

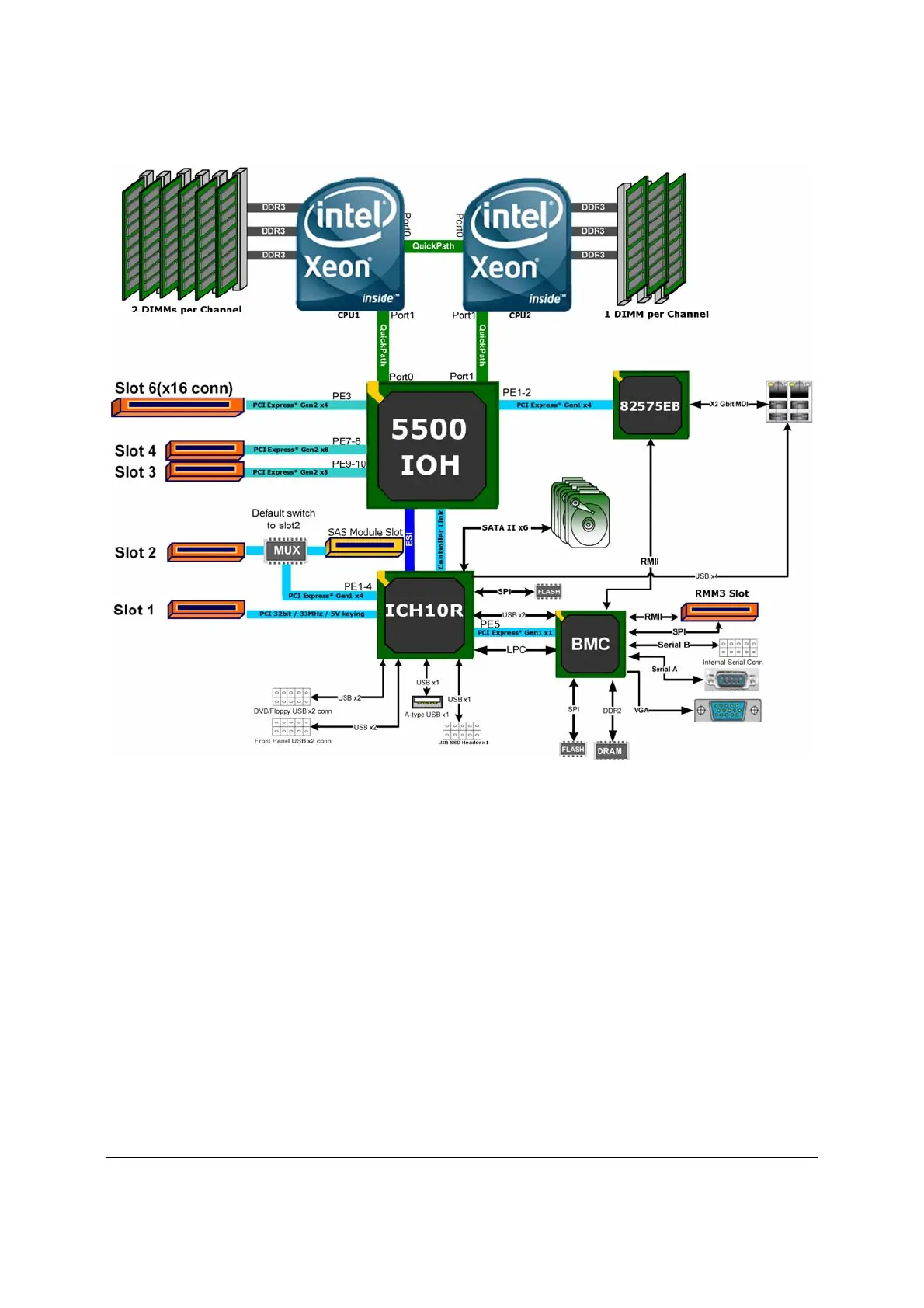

Server Board S5500HCV Functional Block Diagram
