Overview Intel® Server Boards S5520HC, S5500HCV, and S5520HCT TPS
Revision 1.8
Intel order number E39529-013
6

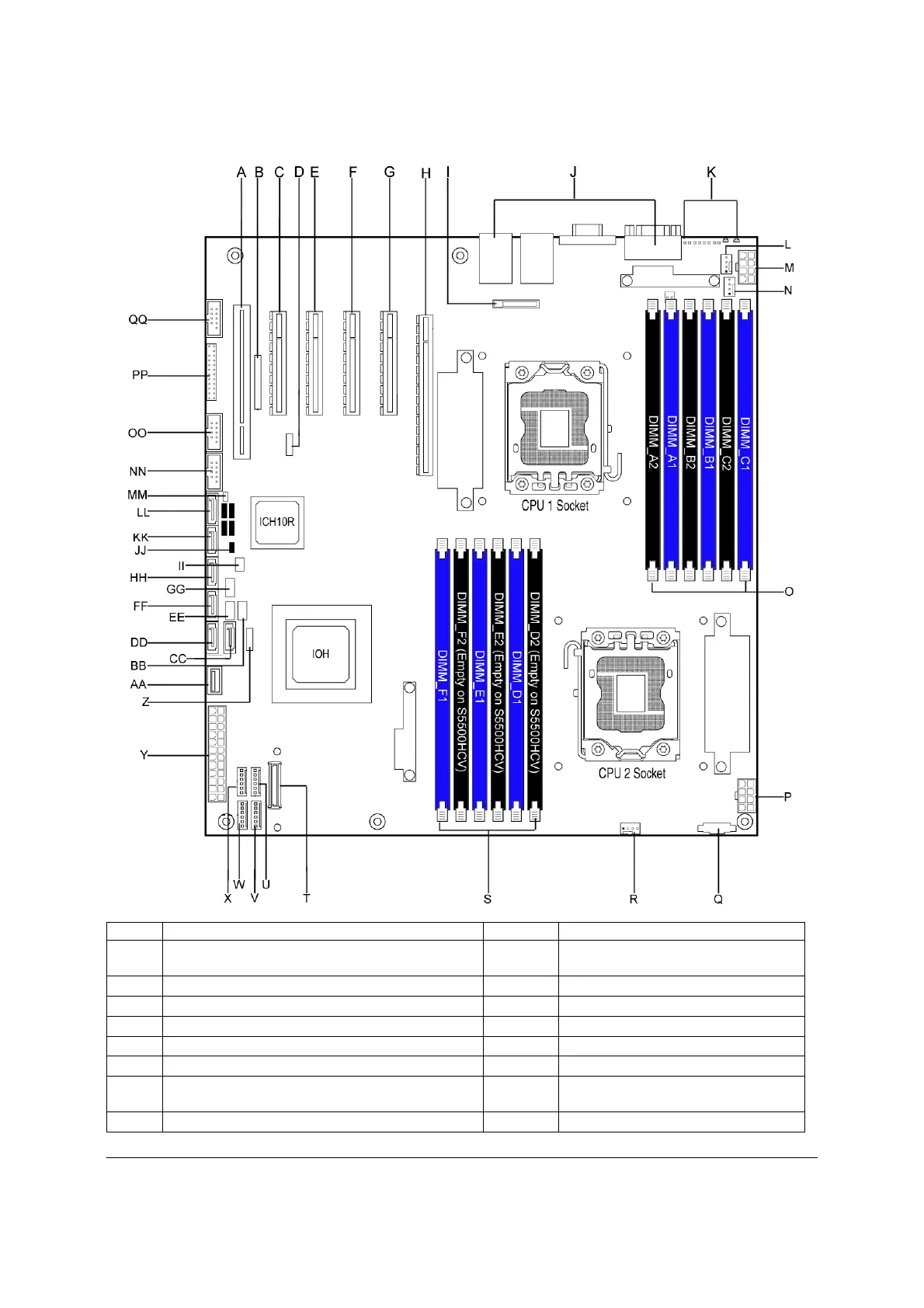

Callout Description Callout Description
A
Slot 1, 32-bit/33 MHz PCI, Keying for 5V and
Universal
W System Fan 2 Header (6-pin)
B Intel
RMM3 Slot X System Fan 1 Header (6-pin)
C Slot 2, PCI Express* x4 (x8 Mechanically) Y Main Power Connector
D Low-profile USB Solid State Drive Header Z LCP/IPMB Header
E Slot 3, PCI Express* Gen2 x8 AA Type A USB Port
F Slot 4, PCI Express* Gen2 x8 BB SATA SGPIO Header
G
Slot 5, PCI Express* Gen2 x8 (Empty on Intel
Server Board S5500HCV)
CC SATA Port 0
H
S5520HC: Slot 6, PCI Express* Gen2 x8 (x16
DD SATA Port 1
