D Processor in the 775-Land LGA Package Thermal Design Guide53
Order #303730
Case Temperature Reference Methodology
10. Using the micromanipulator, install the needle near to the end of groove on top of
thermocouple. Using the X, Y & Z axes on the arm place the tip of needle on top of the
thermocouple bead. Press down until the bead is seated at the end of groove on top of the step
(see Figure 27 and Figure 28).

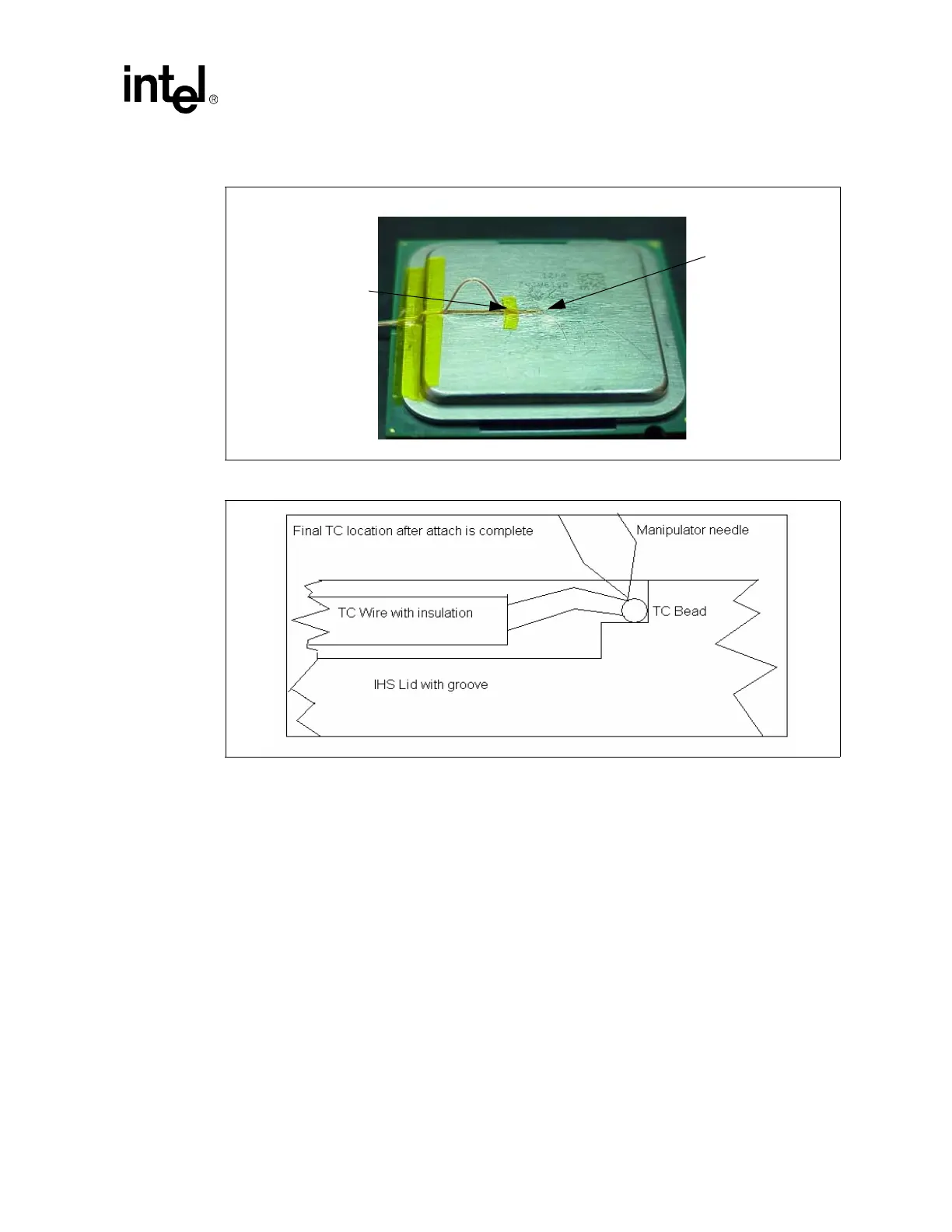

Figure 26. Position Bead on Groove Step
Figure 27. Detailed Thermocouple Bead Placement
Kapton* tape
Wire section into
the groove to
prepare for final
bead placement

Intel Celeron D Specifications

General

Processor Family	Intel Celeron D
Architecture	NetBurst
Number of Cores	1
Socket	LGA 775
FSB Speed	533 MHz
Operating Voltage	1.25V-1.4V
Virtualization Technology	No
Integrated Graphics	No
Core Name	Prescott
Core Stepping	D0
Clock Speed	3.6 GHz
L1 Cache	16 KB
Process Technology	90 nm
Instruction Set	SSE, SSE2, SSE3
L2 Cache	256 KB - 512 KB
