Intel Desktop Board DG965MQ Product Guide
36
3. Make sure not to pinch the Thermal Module Fan cable between the Thermal Module
and the desktop board or SRM (see
Figure 13).

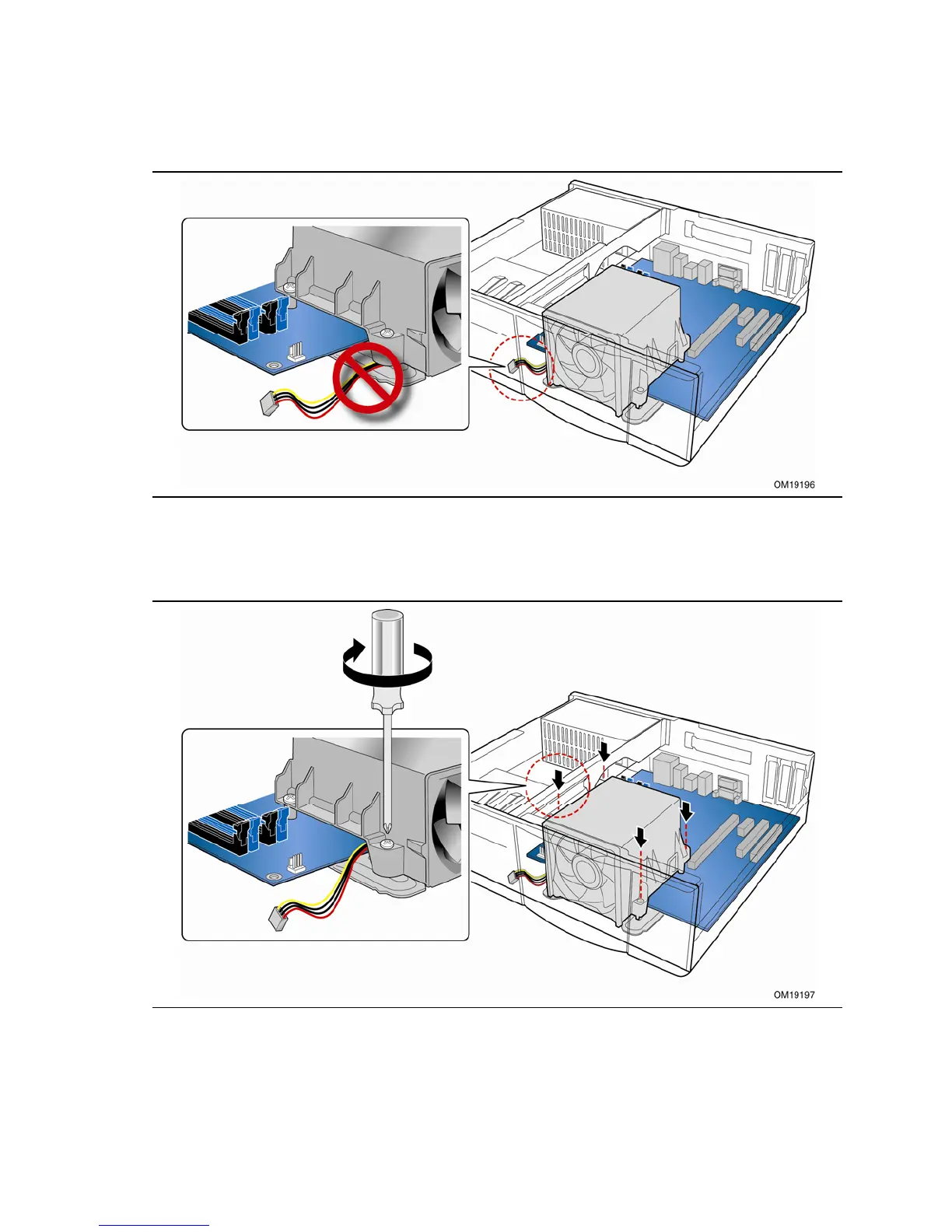

Figure 13. Use Care Routing the Thermal Module Fan Cable
4. Tighten the captive screw at each corner of the Thermal Module (see Figure 14).
The screws may be tightened in any order.
Figure 14. Secure the Thermal Module
