Connecting the Serial ATA (SATA) Cable
The SATA cable supports the Serial ATA protocol and connects a single drive to the
desktop board. For correct cable function:
1. Observe the precaution in "
Before You Begin" on page 27.
2. Attach the locking cable end to the connector on the board (
Figure 24, A).
3. Attach the cable end without the lock to the drive (
Figure 24, B).

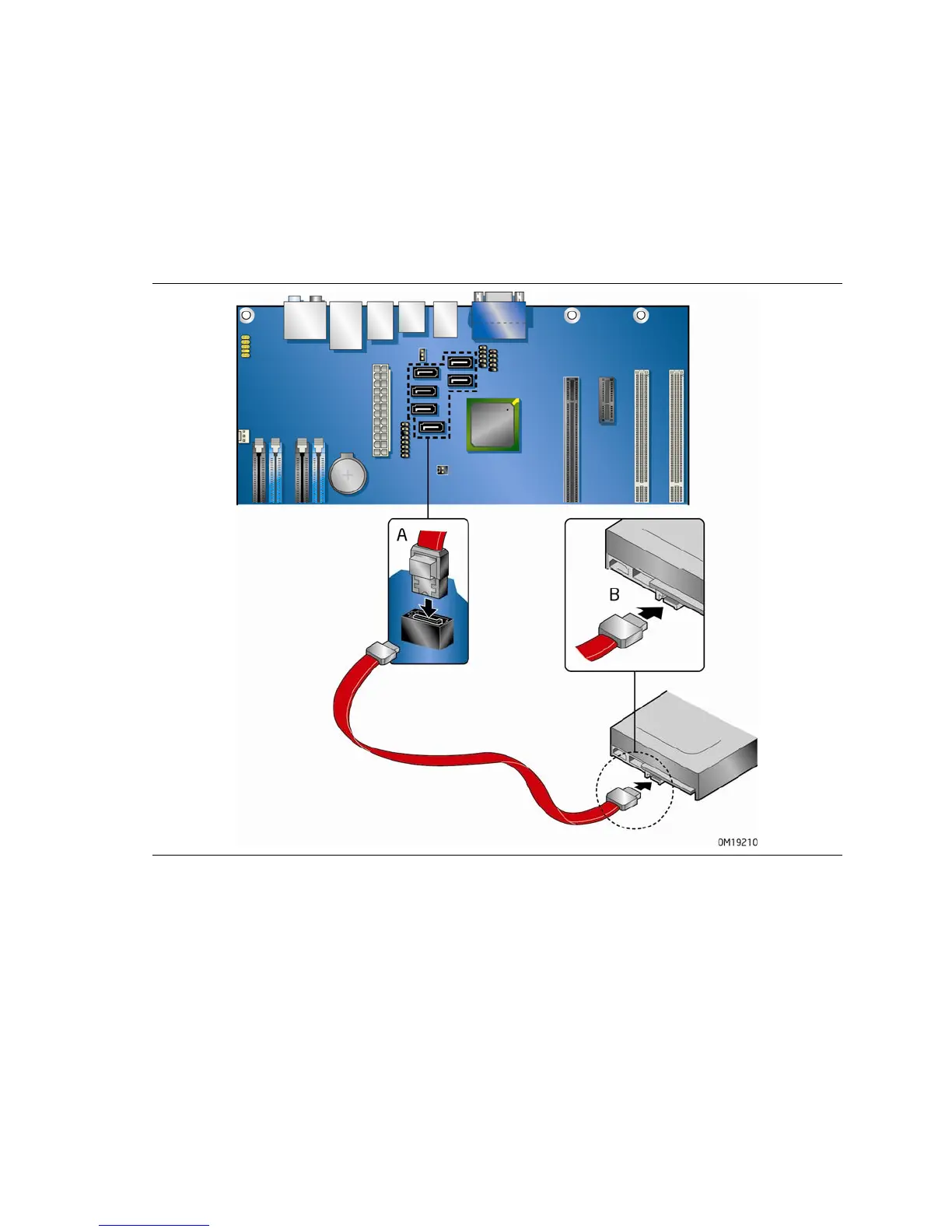

Figure 24. Connecting the Serial ATA Cable
