Inst
alling
and Repla
cing
Desk
top Bo
ard Co
mponen
ts
53
Connecting Chassis Fan and Power Cables
Connectin
g Chassis Fan Cabl
es
Connect th
e cha
ssis fan
cables t
o the tw
o ch
assis fan
headers on
the d
esktop b
oard.

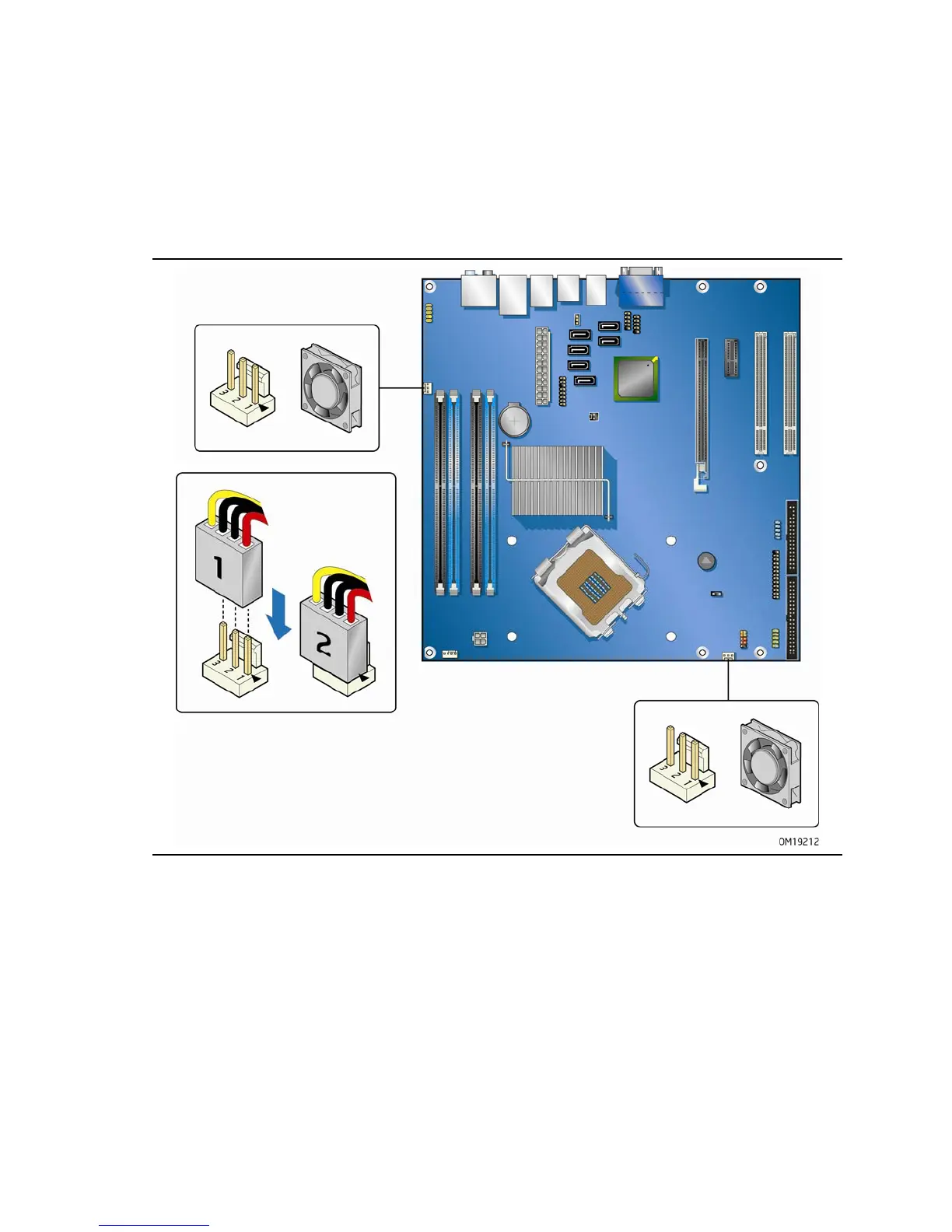

Figu
re 27 show
s the l
ocati
on of th
e chassi
s fan h
eaders.
Figure 27.
Locat
ion of Ch
assis Fa
n Header
s
52
54
Table of Contents
Default Chapter
2
Canadian Department of Communications Compliance Statement
2
Fcc Declaration of Conformity
2
Revision History
2
Intended Audience
3
Use Only for Intended Applications
3
Box Contents
4
Table of Contents
5
Desktop Board Features
9
Supported Operating Systems
10
Tables
11
Desktop Board Components
11
Desktop Board DG965MQ Components
11
Figures
11
Related Links
12
Main Memory
13
Processor
13
Intel G965 Express Chipset
14
Intel G965 Graphics Subsystem
14
GMA X300 Graphics Controller
15
Digital Video Interface (DVI)
15
DVI Port Status
15
Onboard Audio Subsystem
16
Input/Output (I/O) Controller
17
LAN Subsystem
17
LAN Subsystem Software
17
RJ-45 LAN Connector Leds
18
Hi-Speed USB 2.0 Support
18
LAN Connector LED States
18
Enhanced IDE Interface
19
Serial ATA
19
Expandability
19
Bios
19
Serial ATA and IDE Auto Configuration
19
PCI and PCI Express* Auto Configuration
20
Security Passwords
20
Hardware Management Features
20
Hardware Monitoring and Fan Speed Control
21
Chassis Intrusion Detection
21
Power Management Features
21
Acpi
21
Power Connectors
22
Fan Headers
22
LAN Wake Capabilities
22
Instantly Available PC Technology
23
+5 V Standby Power Indicator LED
24
Location of Standby Power Indicator
24
Wake from USB
25
Wake from PS/2 Keyboard/Mouse
25
PME# Signal Wake-Up Support
25
WAKE# Signal Wake-Up Support
25
Speaker
25
Battery
25
Real-Time Clock
25
Installing and Replacing Desktop Board Components
27
Before You Begin
27
Installation Precautions
28
Prevent Power Supply Overload
28
Observe Safety and Regulatory Requirements
28
Installing the I/O Shield
29
Installing and Removing the Desktop Board
30
Desktop Board DG965MQ Mounting Screw Hole Locations
31
Installing and Removing a Processor
32
Installing a Processor
32
Lift Socket Lever
32
Lift the Load Plate
32
Remove the Protective Socket Cover
33
Remove the Processor from the Protective Processor Cover
33
Install the Processor
34
Close the Load Plate
34
Installing the Thermal Module
35
Position the Thermal Module over the Mounting Holes
35
Use Care Routing the Thermal Module Fan Cable
36
Secure the Thermal Module
36
Removing the Processor
37
Connect the Thermal Module Fan Cable
37
Installing and Removing Memory
38
Guidelines for Dual Channel Memory Configuration
38
Two or Four Dimms
38
Dual Channel Memory Configuration Example 1
38
Three Dimms
39
Dual Channel Memory Configuration Example 2
39
Dual Channel Memory Configuration Example 3
39
Installing Dimms
40
Use DDR2 Dimms
40
Installing a DIMM
41
Removing Dimms
42
Installing and Removing a PCI Express X16 Card
43
Installing a PCI Express X16 Card
43
Removing the PCI Express X16 Card
44
Removing a PCI Express X16 Card
44
Connecting the IDE Cable
45
Connecting the Serial ATA (SATA) Cable
46
Connecting the Serial ATA Cable
46
Connecting to Internal Headers
47
Internal Headers
47
Installing a Front Panel Audio Solution for Intel ® High Definition Audio
48
Front Panel Audio Header Signal Names for Intel High Definition Audio
48
AC '97 Audio Header Signal Names
48
Connecting to the USB 2.0 Headers
49
Connecting to the Front Panel Header
49
Front Panel Header
49
USB 2.0 Header Signal Names
49
Connecting to the Alternate Front Panel Power LED Header
50
Connecting to the IEEE 1394A Header
50
Alternate Front Panel Power LED Header
50
IEEE 1394A Header Signal Names
50
Connecting to the Parallel Port Header
51
Connecting to the Serial Port Header
51
Parallel Port Header Signal Names
51
Serial Port Header Signal Names
51
Connecting to the HD Audio Link Header
52
Connecting to the Flexible Audio System
52
Back Panel Audio Connectors
52
HD Audio Link Header Signal Names
52
Connecting Chassis Fan and Power Cables
53
Connecting Chassis Fan Cables
53
Location of Chassis Fan Headers
53
Connecting Power Cables
54
Connecting Power Supply Cables
54
Other Connectors and Headers
55
Location of Other Connectors and Headers
55
Setting the BIOS Configuration Jumper
56
Location of the BIOS Configuration Jumper Block
56
Clearing Passwords
58
Back Panel Connectors
59
Replacing the Battery
60
Removing the Battery
64
Updating the BIOS
65
Updating the BIOS with the Intel Express BIOS Update Utility
65
Updating the BIOS with the ISO Image BIOS Update File or the Iflash Memory Update Utility
66
Obtaining the BIOS Update File
66
Updating the BIOS with the ISO Image BIOS Update File
66
Updating the BIOS with Iflash
67
Recovering the BIOS
68
Configuring for RAID (Intel Matrix Storage Technology)
69
Configuring the BIOS for Intel Matrix Storage Technology
69
SATA Port Mapping
69
Creating Your RAID Set
70
SATA Port Mapping for Desktop Board DG965MQ after RAID Is Enabled
70
Loading the Intel Matrix Storage Technology RAID Drivers and Software
71
Setting up a "RAID Ready" System
71
Intel Quick Resume Technology Driver (Intel QRTD)
73
Overview
73
Intel Quick Resume Technology Power Modes
73
Installation and Configuration
74
A Error Messages and Indicators
77
BIOS Beep Codes
77
BIOS Error Messages
77
Beep Codes
77
B Regulatory Compliance
79
Safety Regulations
79
Place Battery Marking
79
European Union Declaration of Conformity Statement
80
Product Ecology Statements
81
Lead-Free Desktop Board
84
Lead-Free Board Markings
84
EMC Regulations
85
Ensure Electromagnetic Compatibility (EMC) Compliance
86
Product Certifications
87
Board-Level Certification Markings
87
Product Certification Markings
87
Chassis and Component Certifications
88
