Connecting to Internal Headers
Before connecting cables to the internal headers, observe the precautions in "Before
You Begin" on page
27. Figure 25 shows the location of the internal headers.
Item Description
A Front panel audio
B USB 2.0
C IEEE 1394a
D Serial port
E Alternate front panel power LED
F Front panel
G Parallel port
H HD Audio Link

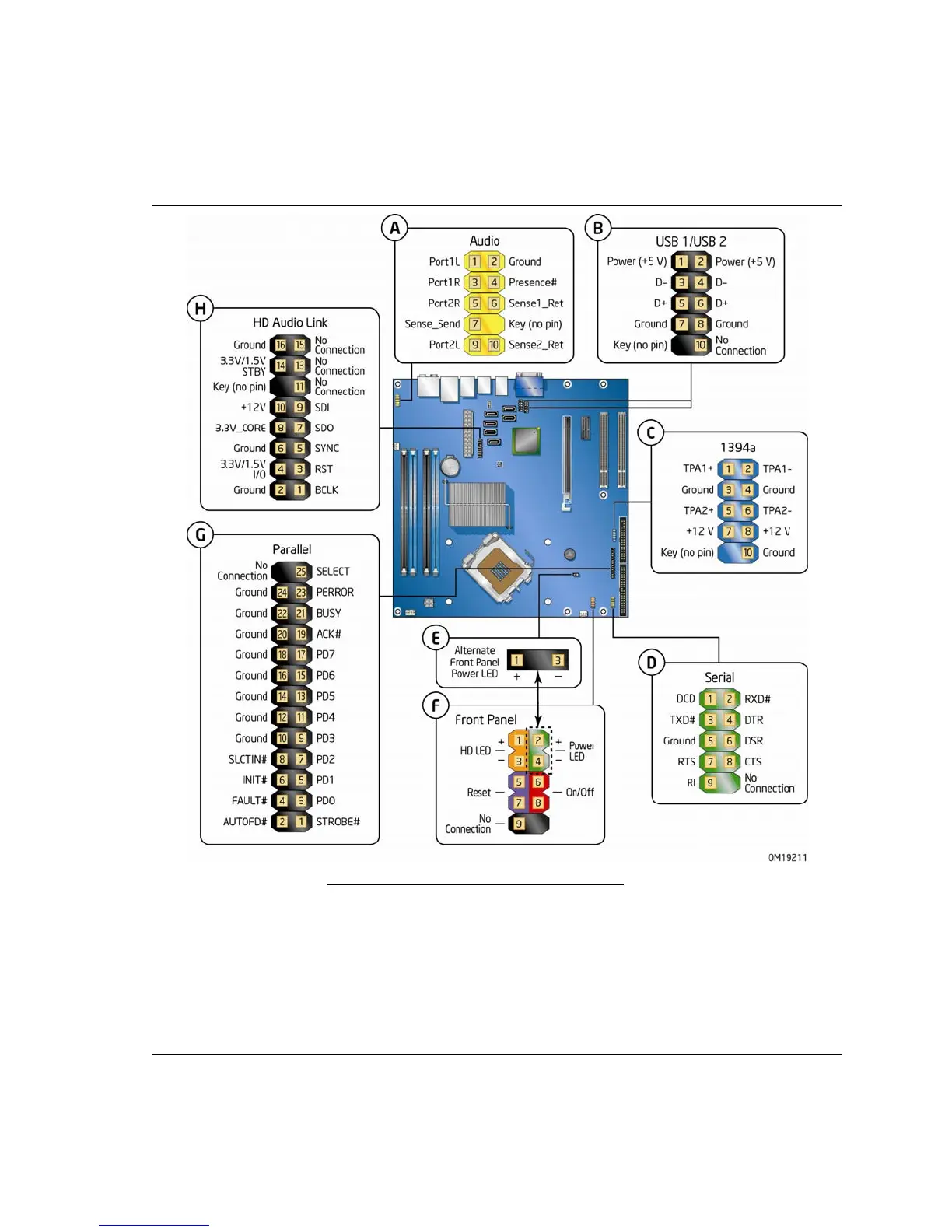

Figure 25. Internal Headers
