Installing and Replacing Desktop Board Components
55
Other Connectors and Headers
Figure 29 shows the location of the other connectors and headers on the desktop
board.
Item Description
A PCI Express x1 connector
B PCI bus connector 1
C PCI bus connector 2
D Diskette drive connector
E Chassis intrusion header

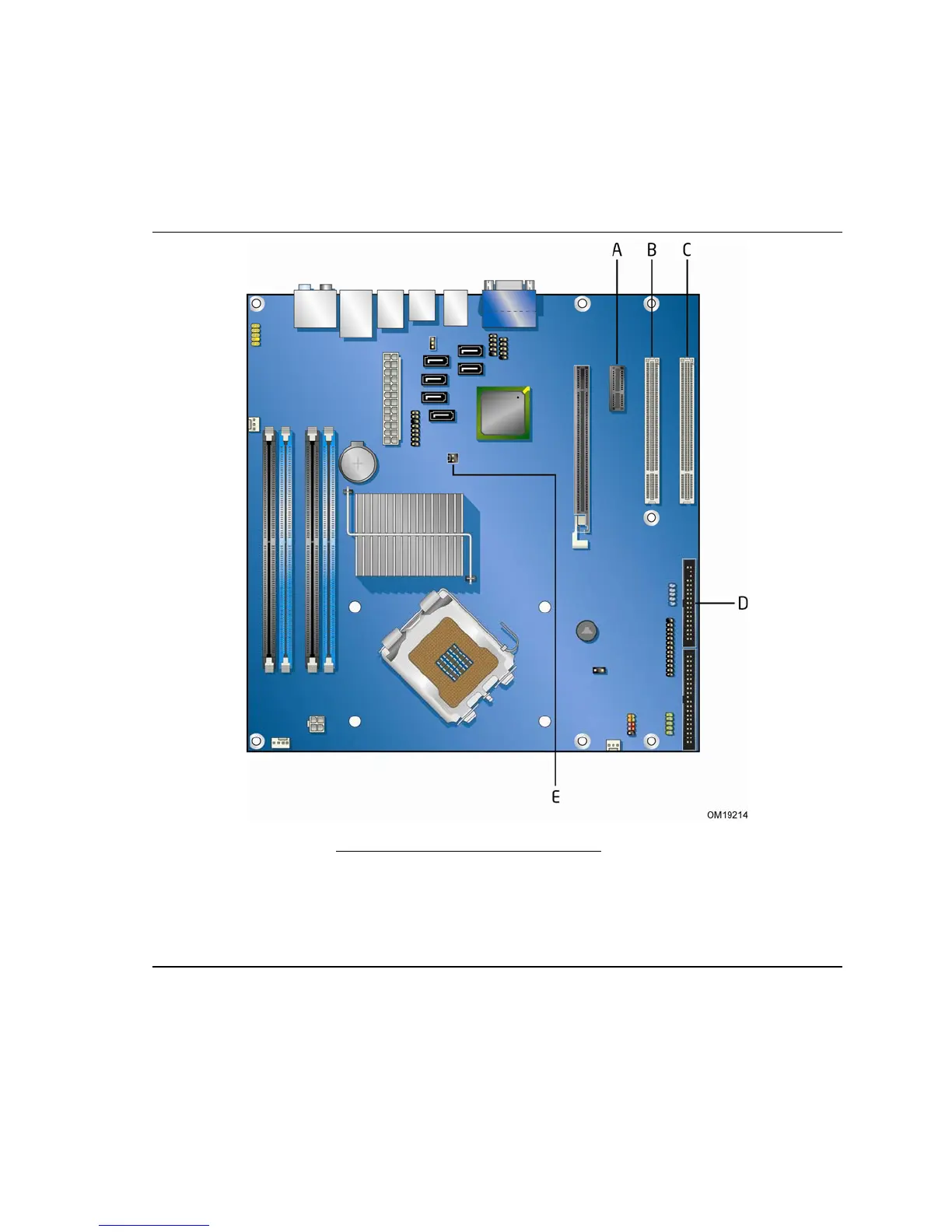

Figure 29. Location of Other Connectors and Headers
