Intel DG965MQ Product Guide

Installing and Replacing Desktop Board Components
37
5. Connect the Thermal Module Fan cable to the 4-pin processor fan header on the
desktop board (see
Figure 15).

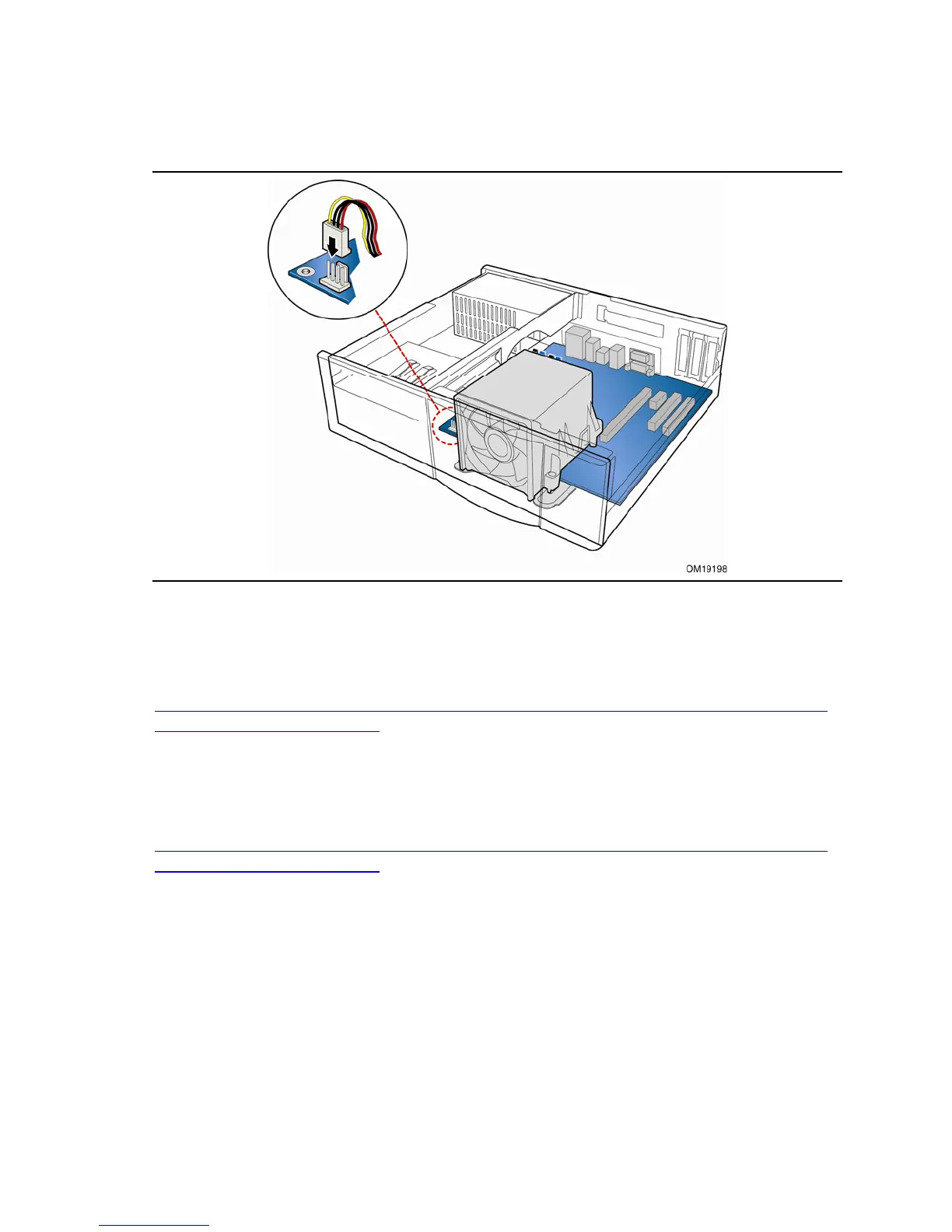

Figure 15. Connect the Thermal Module Fan Cable
For complete instructions on how to attach the Thermal Module to the desktop board
and the SRM, refer to the chassis manual, the boxed processor installation manual, or
the Intel World Wide Web site at:
Integration Overview for Systems Based on the Boxed Intel
®
Pentium
®
4 Processor in
the 775-Land Package (BTX)
Removing the Processor
For instructions on how to remove the Thermal Module and processor, refer to the
processor installation manual or the Intel World Wide Web site at:
Integration Overview for Systems Based on the Boxed Intel
®
Pentium
®
4 Processor in
the 775-Land Package (BTX)
