Intel Desktop Board DG965MQ Product Guide
38
Installing and Removing Memory
NOTE
To be fully compliant with all applicable Intel SDRAM memory specifications, the board
requires DIMMs that support the Serial Presence Detect (SPD) data structure. You can
access the PC Serial Presence Detect Specification at:
http://www.intel.com/technology/memory/ddr/specs/dda18c32_64_128x72ag_a.pdf
Desktop Board DG965MQ has four 240-pin DDR2 DIMM sockets arranged as DIMM 0
and DIMM 1 in both Channel A and Channel B.
Guidelines for Dual Channel Memory Configuration
Before installing DIMMs, read and follow these guidelines for dual channel
configuration.
Two or Four DIMMs
Install a matched pair of DIMMs equal in speed and size (see Figure 16) in DIMM 0
(blue) of both channels A and B.

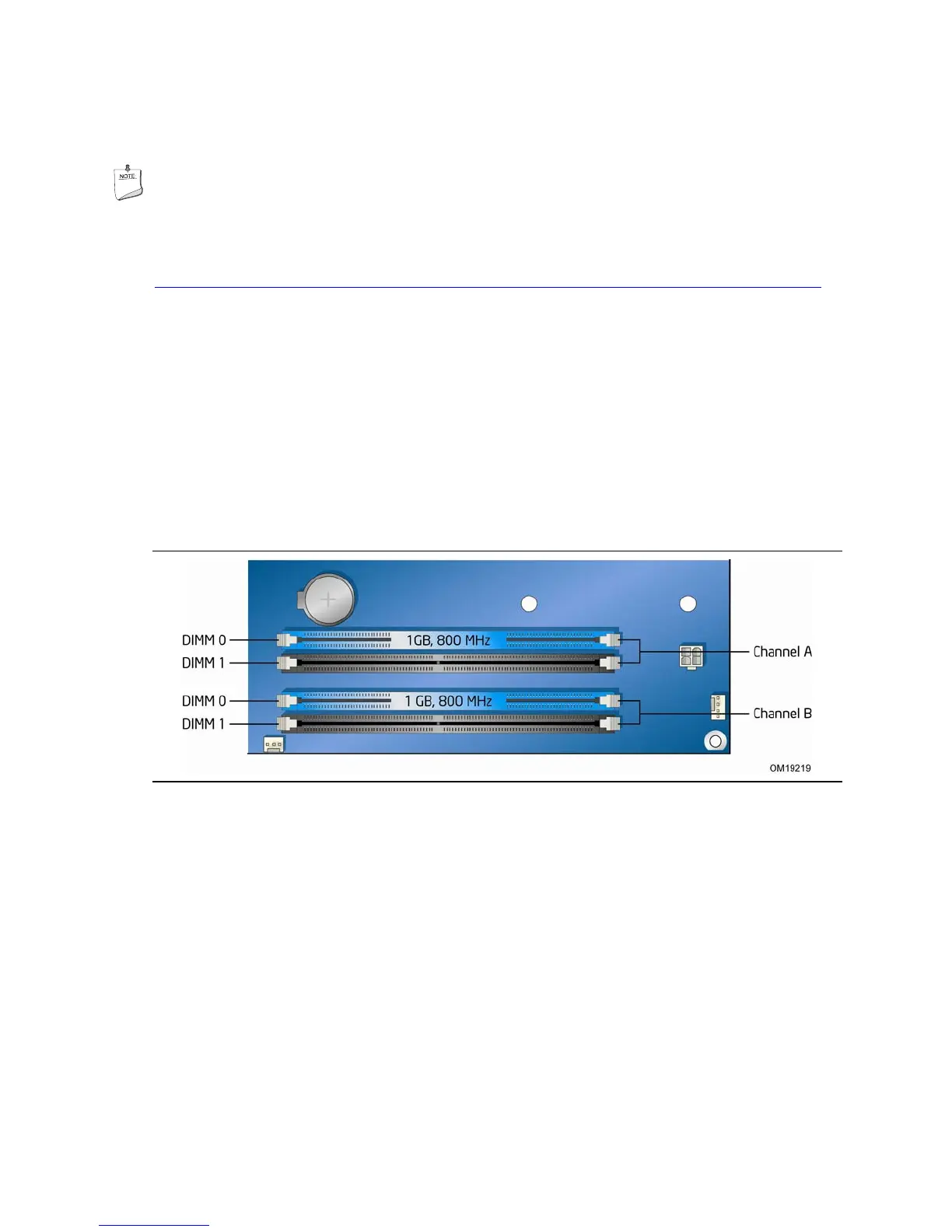

Figure 16. Dual Channel Memory Configuration Example 1
