Intel DG965MQ Product Guide

Installing and Replacing Desktop Board Components
41
NOTE
Memory must be installed in the Channel A, DIMM 0 socket to enable Intel® Quiet
System Technology.
To install a DIMM, follow these steps:
1. Observe the precautions in "
Before You Begin" on page 27.
2. Turn off all peripheral devices connected to the computer. Turn off the computer
and disconnect the AC power cord.
3. Remove the computer’s cover and locate the DIMM sockets (see
Figure 20).

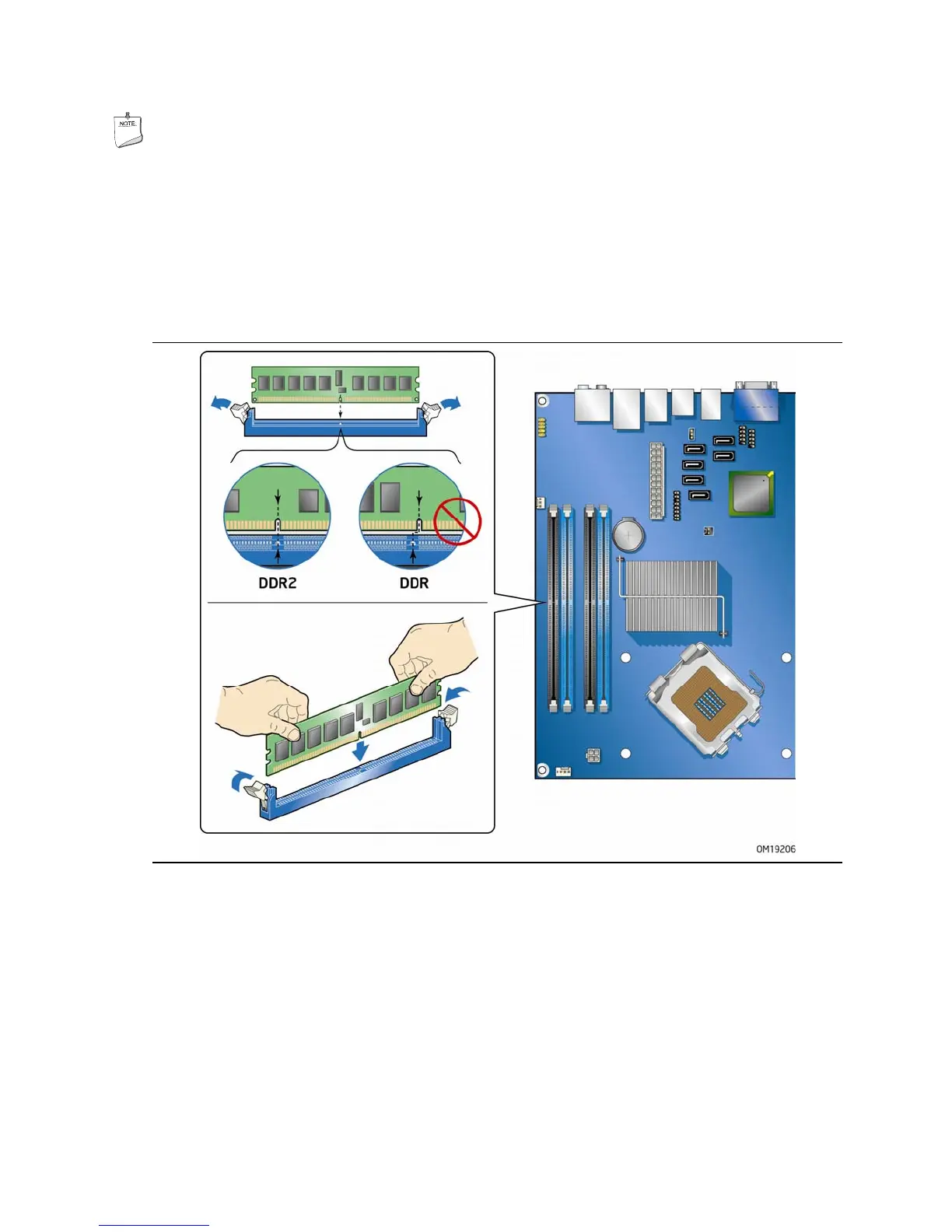

Figure 20. Installing a DIMM
4. Make sure the clips at either end of the DIMM socket(s) are pushed outward to the
open position.
5. Holding the DIMM by the edges, remove it from its anti-static package.
6. Position the DIMM above the socket. Align the small notch at the bottom edge of
the DIMM with the keys in the socket (see inset in
Figure 20).
7. Insert the bottom edge of the DIMM into the socket.
8. When the DIMM is inserted, push down on the top edge of the DIMM until the
retaining clips snap into place. Make sure the clips are firmly in place.
9. Replace the computer’s cover and reconnect the AC power cord.
