Intel Desktop Board DH61AG Technical Product Specification
26
1.6.2 Flat Panel Display Interfaces
The board supports flat panel display via the LVDS and Embedded DisplayPort
interfaces. Figure 5 shows the flat panel connectors.
Item Description
A Backlight inverter voltage selection header
B FPD brightness connector
C LVDS connector
D Embedded DisplayPort connector
E Flat panel voltage selection header

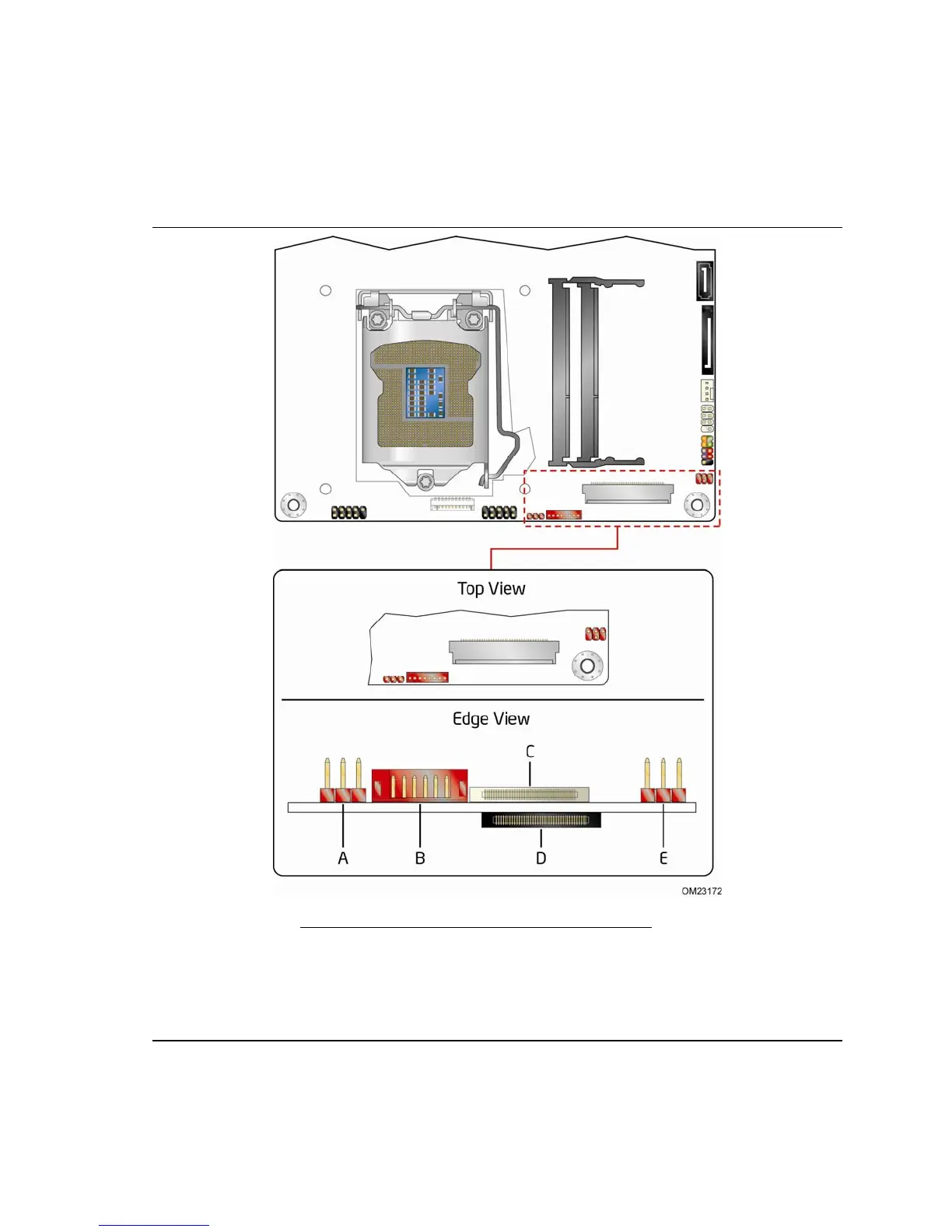

Figure 5. Flat Panel Connectors
