1.12.3 Thermal Monitoring

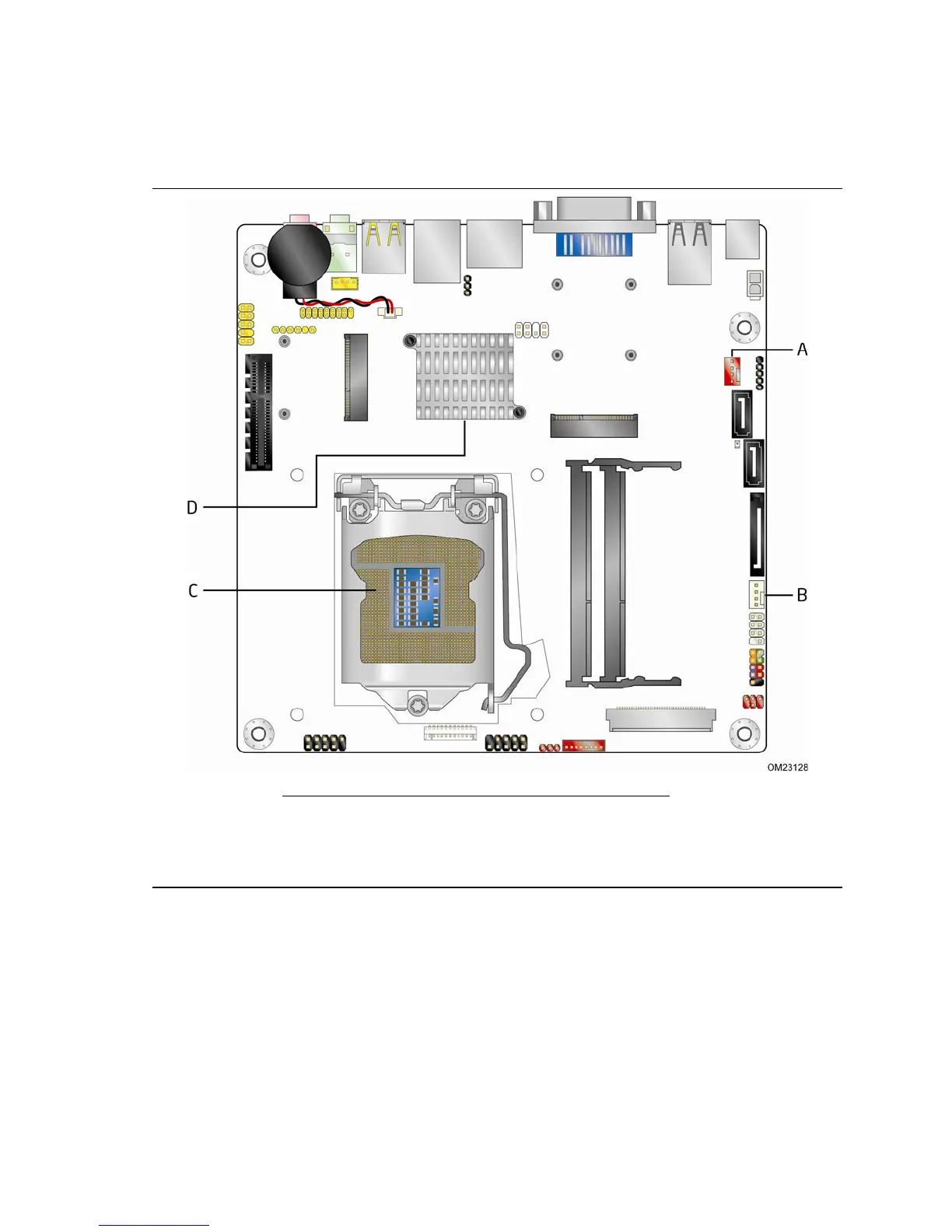

Figure 9 shows the locations of the thermal sensors and fan headers.
Item Description
A System fan header
B Processor fan header
C Thermal diode, located on the processor die
D Thermal diode, located on the Intel H61 PCH
Figure 9. Thermal Sensors and Fan Headers
