2.2.3 Connectors and Headers (Bottom)

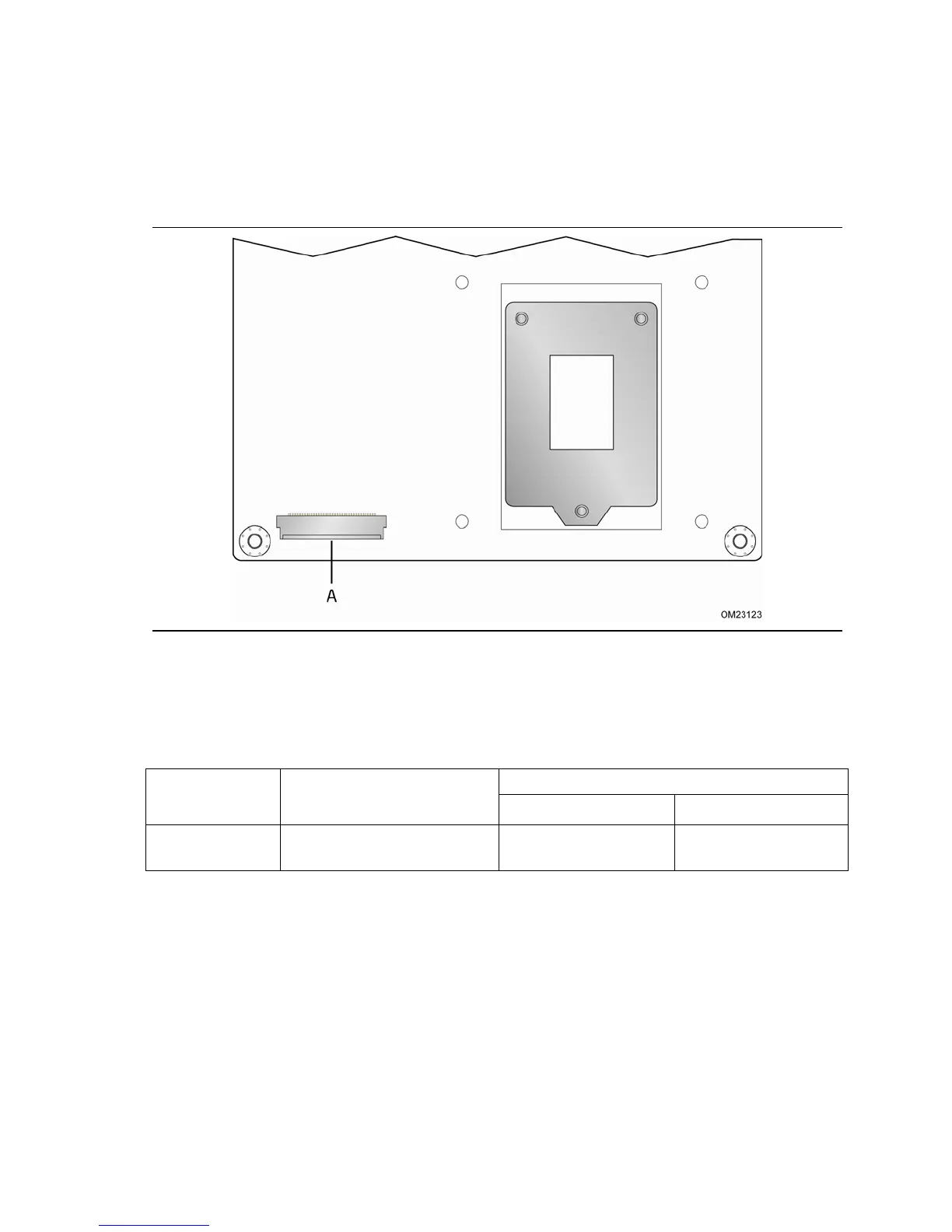

Figure 14 shows the locations of the connectors and headers on the bottom-side of the
board.
Figure 14. Connectors and Headers (Bottom)
Table 15 lists the connectors and headers identified in Figure 14.
Table 15. Connectors and Headers Shown in Figure 14
Item from
Figure 14 Descri
ption
Connector Information
Board Connector Mating Plug
A eDP connector ACES 50203-040 ACES 88441-40
Starconn 107F40
