Intel DH61AG - Front Panel USB 2.0 Headers; Front Panel USB Header Connection Diagrams

Technical Reference
63
2.2.3.5 Front Panel USB 2.0 Headers

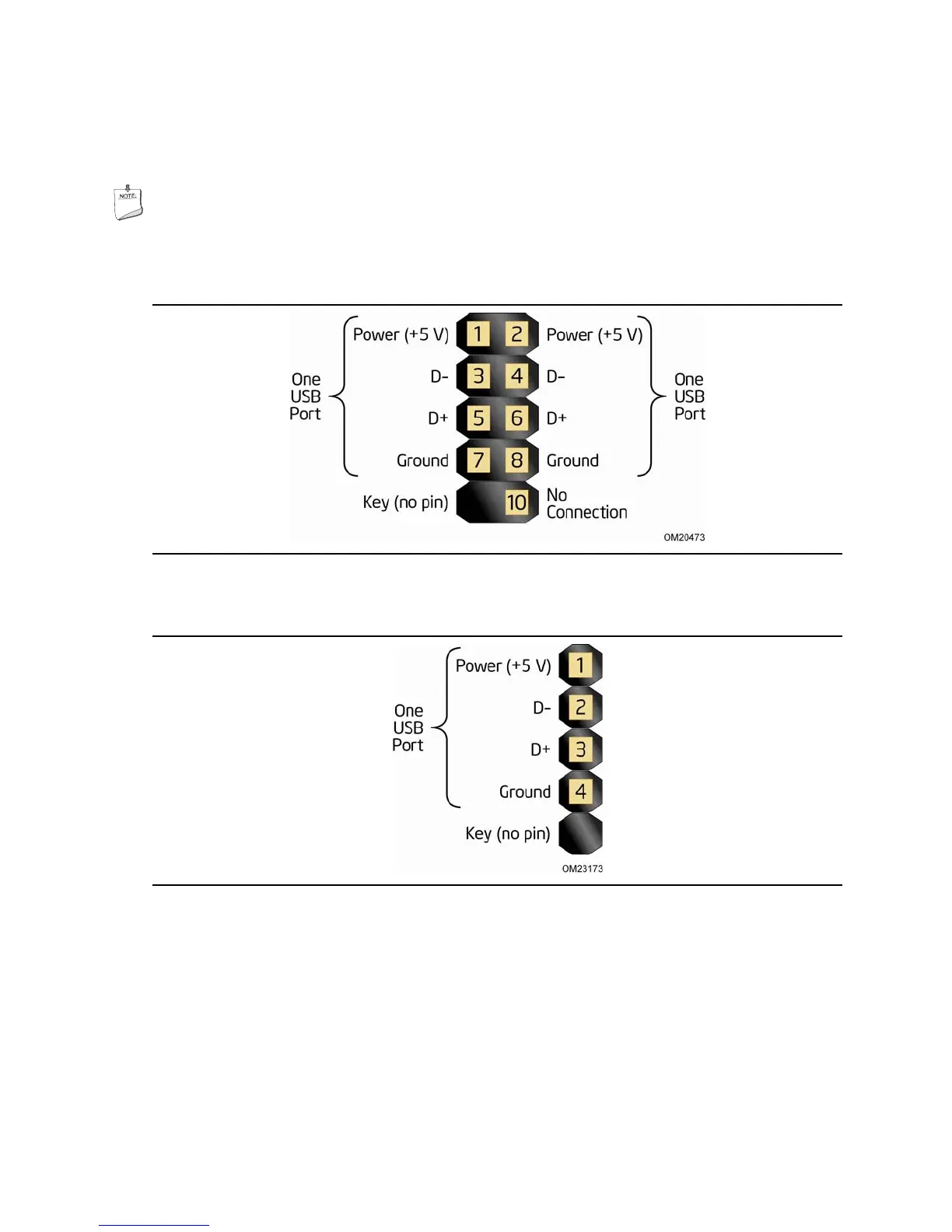

Figure 16 and Figure 17 are connection diagrams for the front panel USB 2.0 headers.
NOTE
• The +5 V DC power on the USB headers is fused.
• Use only a front panel USB connector that conforms to the USB 2.0 specification
for high-speed USB devices.
Figure 16. Connection Diagram for Front Panel
USB 2.0 Dual-Port Headers
Figure 17. Connection Diagram for the Front Panel
USB 2.0 Single-Port Header
