Balanced Technology Extended (BTX) System Thermal Considerations
104 Thermal and Mechanical Design Guidelines
The thermal sensor location and elevation are reflected in the Flotherm thermal model
airflow illustration and pictures (see Figure 7-38 and Figure 7-39).The Intel Boxed
Boards in the BTX form factor have implemented a System Monitor thermal sensor.
The following thermal sensor or its equivalent can be used for this function:
Part Number: C83274-002
BizLink USA Technology, Inc.
44911 Industrial Drive
Fremont, CA 94538 USA
(510)252-0786 phone
(510)252-1178 fax
sales@bizlinktech.com
Part Number: 68801-0170
Molex Incorporated
2222 Wellington Ct.
Lisle, IL 60532
1-800-78MOLEX phone
1-630-969-1352 fax
amerinfo@molex.com

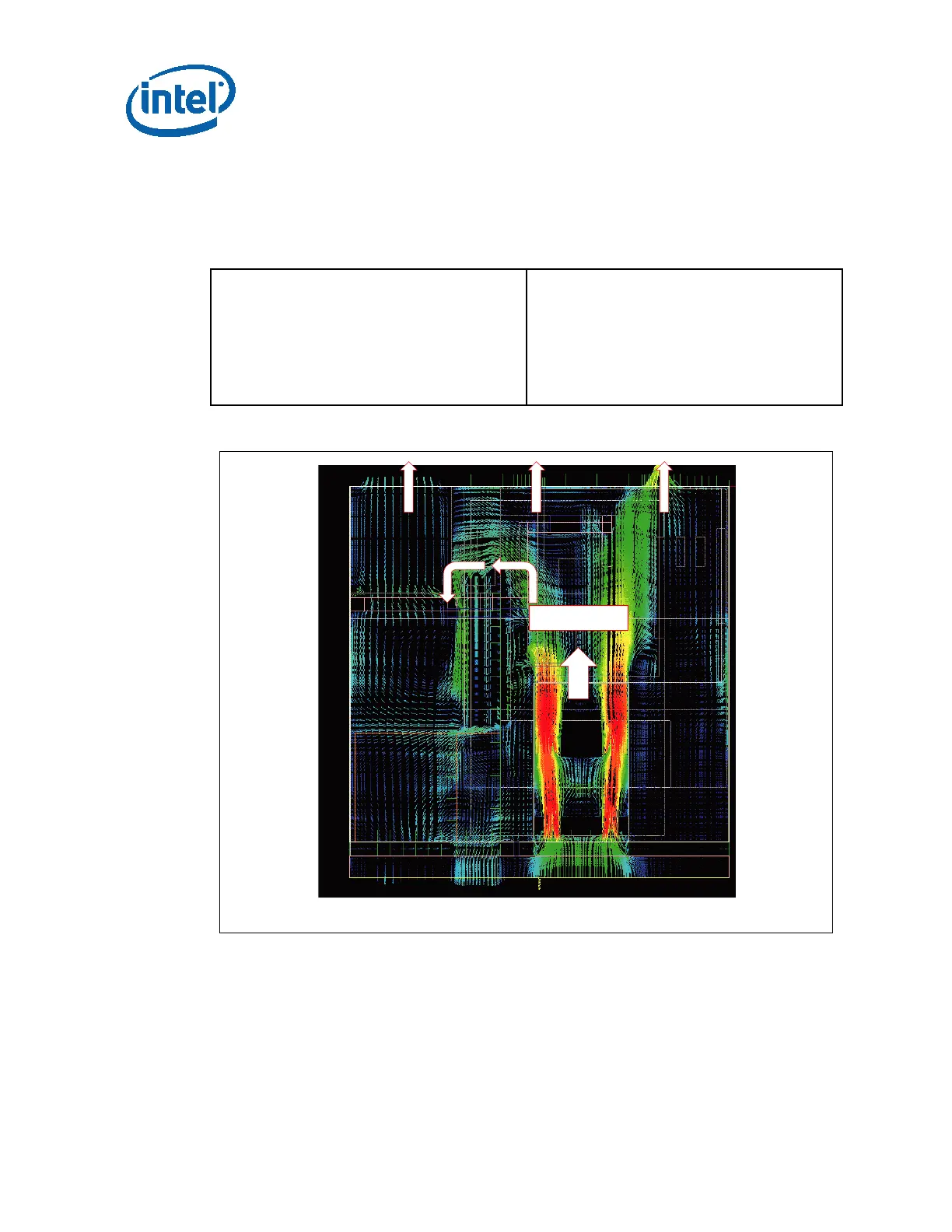

Figure 7-38. System Airflow Illustration with System Monitor Point Area Identified
OM16791
Power Supply
Unit
Thermal
Module
MCH
Memory
Graphics
Add-In Card
Monitor Point

Intel E6700 - Core 2 Duo Dual-Core Processor Specifications

General

Processor Number	E6700
Number of Cores	2
Number of Threads	2
Base Frequency	2.66 GHz
Cache	4 MB L2 Cache
Bus Speed	1066 MHz
TDP	65 W
Socket	LGA 775
Lithography	65 nm
Instruction Set	64-bit
Virtualization Technology	VT-x
Memory Types	DDR2
Release Date	July 2006
