LGA775 Socket Heatsink Loading
Thermal and Mechanical Design Guidelines 71

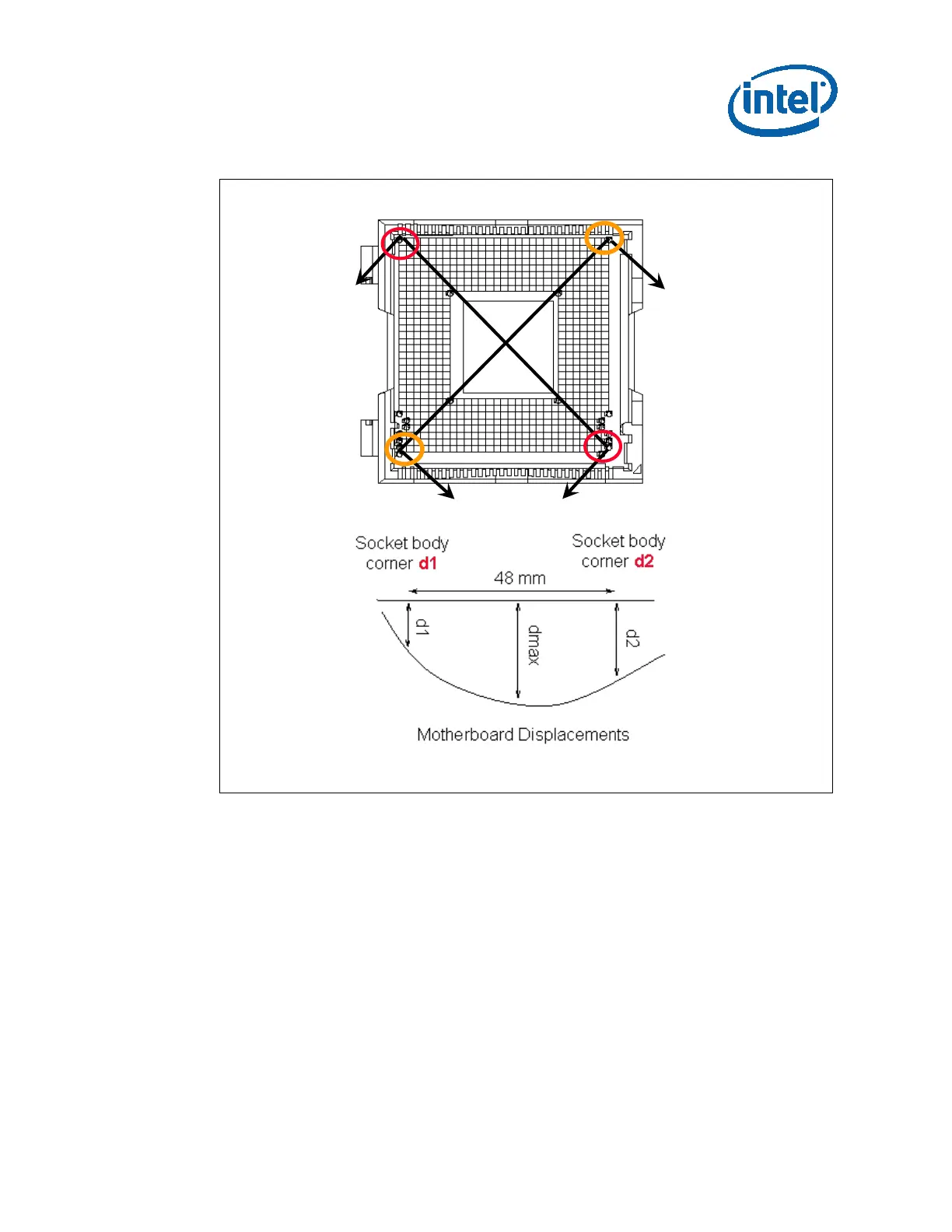

Figure 7-6. Board Deflection Definition
d1
d2
d’1
d’2
A.3.2 Board Deflection Limits
Deflection limits for the ATX/µATX form factor are:
d_BOL – d_ref≥ 0.09 mm and d_EOL – d_ref ≥ 0.15 mm
And
d’_BOL – d’_ref≥ 0.09 mm and d_EOL’ – d_ref’ ≥ 0.15 mm
NOTES:
1. The heatsink preload must remain within the static load limits defined in the processor
datasheet at all times.
2. Board deflection should not exceed motherboard manufacturer specifications.

Intel E6700 - Core 2 Duo Dual-Core Processor Specifications

General

Processor Number	E6700
Number of Cores	2
Number of Threads	2
Base Frequency	2.66 GHz
Cache	4 MB L2 Cache
Bus Speed	1066 MHz
TDP	65 W
Socket	LGA 775
Lithography	65 nm
Instruction Set	64-bit
Virtualization Technology	VT-x
Memory Types	DDR2
Release Date	July 2006
