Case Temperature Reference Metrology
Thermal and Mechanical Design Guidelines 91
9. Lift the wire at the middle of groove with tweezers and bend the front of wire to
place the thermocouple in the groove ensuring the tip is in contact with the end
and bottom of the groove in the IHS (Figure 7-19-A and B).

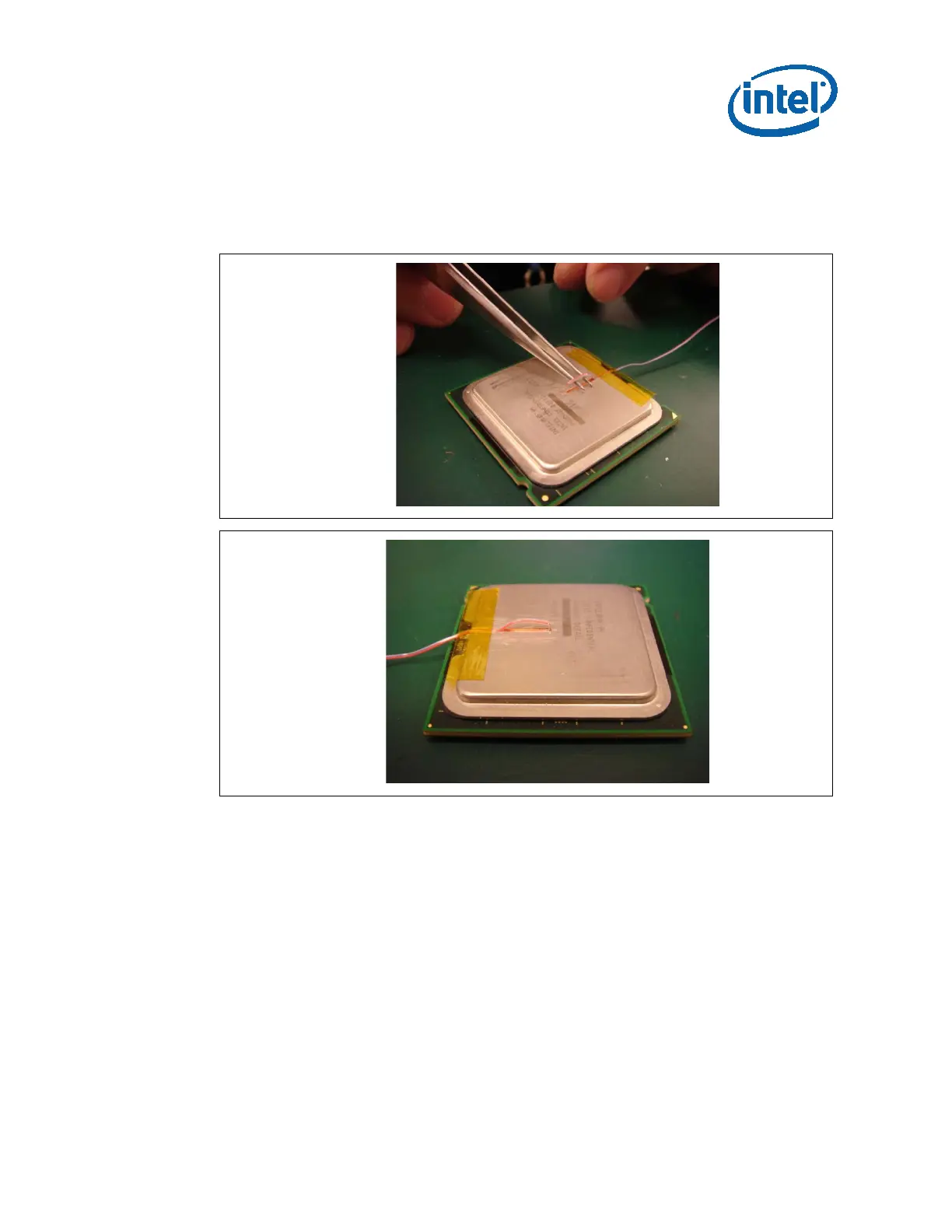

Figure 7-19. Thermocouple Bead Placement
(A)
(B)
10. Place the package under the microscope to continue with process. It is also
recommended to use a fixture (like processor tray or a plate) to help holding the
unit in place for the rest of the attach process.

Intel E6700 - Core 2 Duo Dual-Core Processor Specifications

General

Processor Number	E6700
Number of Cores	2
Number of Threads	2
Base Frequency	2.66 GHz
Cache	4 MB L2 Cache
Bus Speed	1066 MHz
TDP	65 W
Socket	LGA 775
Lithography	65 nm
Instruction Set	64-bit
Virtualization Technology	VT-x
Memory Types	DDR2
Release Date	July 2006
