Case Temperature Reference Metrology
Thermal and Mechanical Design Guidelines 99

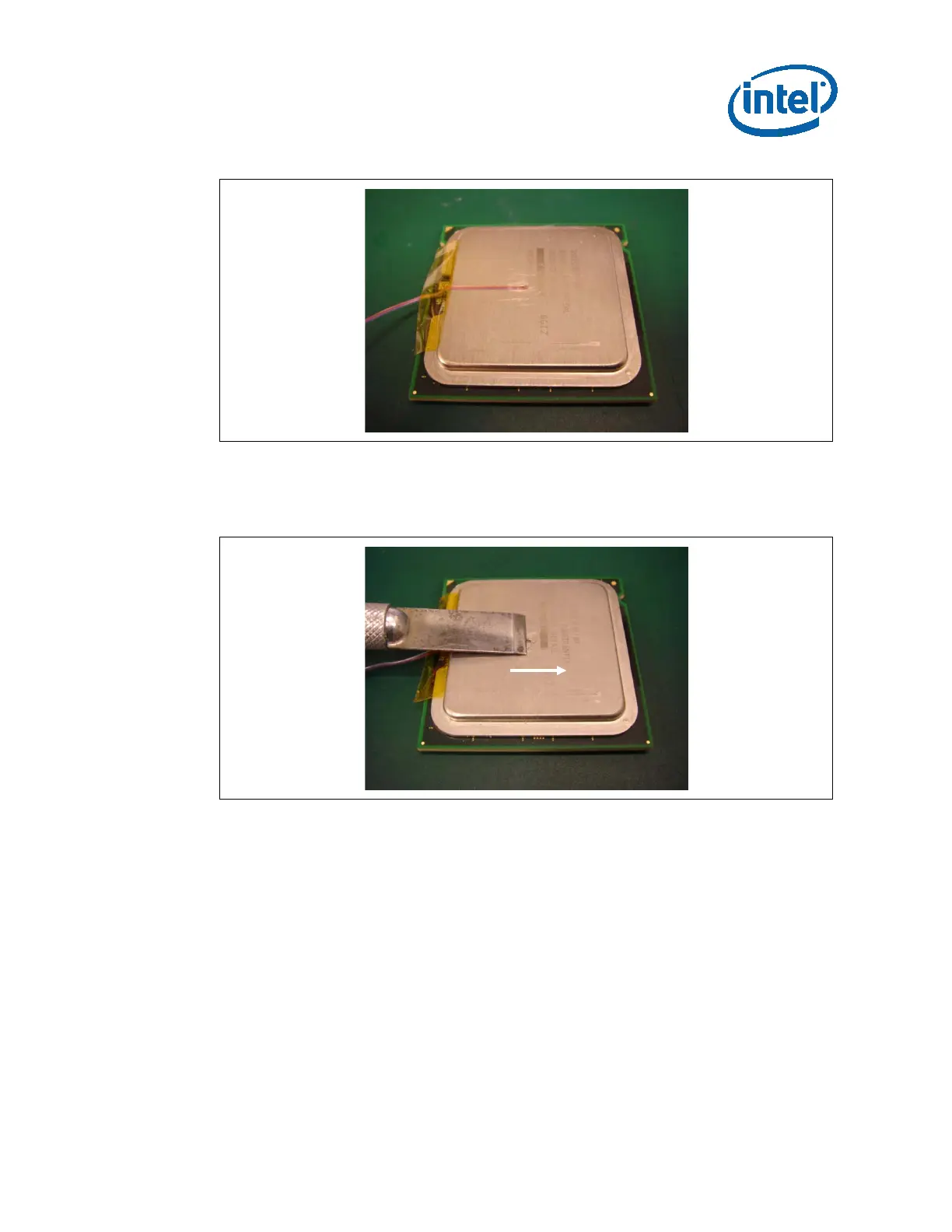

Figure 7-31. Thermocouple placed into groove
29. Using a blade carefully shave the excess solder above the IHS surface. Only shave
in one direction until solder is flush with the groove surface (Figure 7-32).
Figure 7-32. Removing Excess Solder
Note: Take usual precautions when using open blades
30. Clean the surface of the IHS with Alcohol and use compressed air to remove any
remaining contaminants.

Intel E6700 - Core 2 Duo Dual-Core Processor Specifications

General

Processor Number	E6700
Number of Cores	2
Number of Threads	2
Base Frequency	2.66 GHz
Cache	4 MB L2 Cache
Bus Speed	1066 MHz
TDP	65 W
Socket	LGA 775
Lithography	65 nm
Instruction Set	64-bit
Virtualization Technology	VT-x
Memory Types	DDR2
Release Date	July 2006
