Intel® Quiet System Technology (Intel® QST)
66 Thermal and Mechanical Design Guidelines
7.2 Board and System Implementation of Intel
®
QST
To implement Intel QST, the board must be configured as shown in Figure 7-3 and
listed below:
• ME system (S0–S1) with Controller Link connected and powered
• DRAM with Channel A DIMM 0 installed and 2 MB reserved for Intel QST FW
execution
• SPI Flash with sufficient space for the Intel QST Firmware
• SST-based thermal sensors to provide board thermal data for Intel QST algorithms
• Intel QST firmware

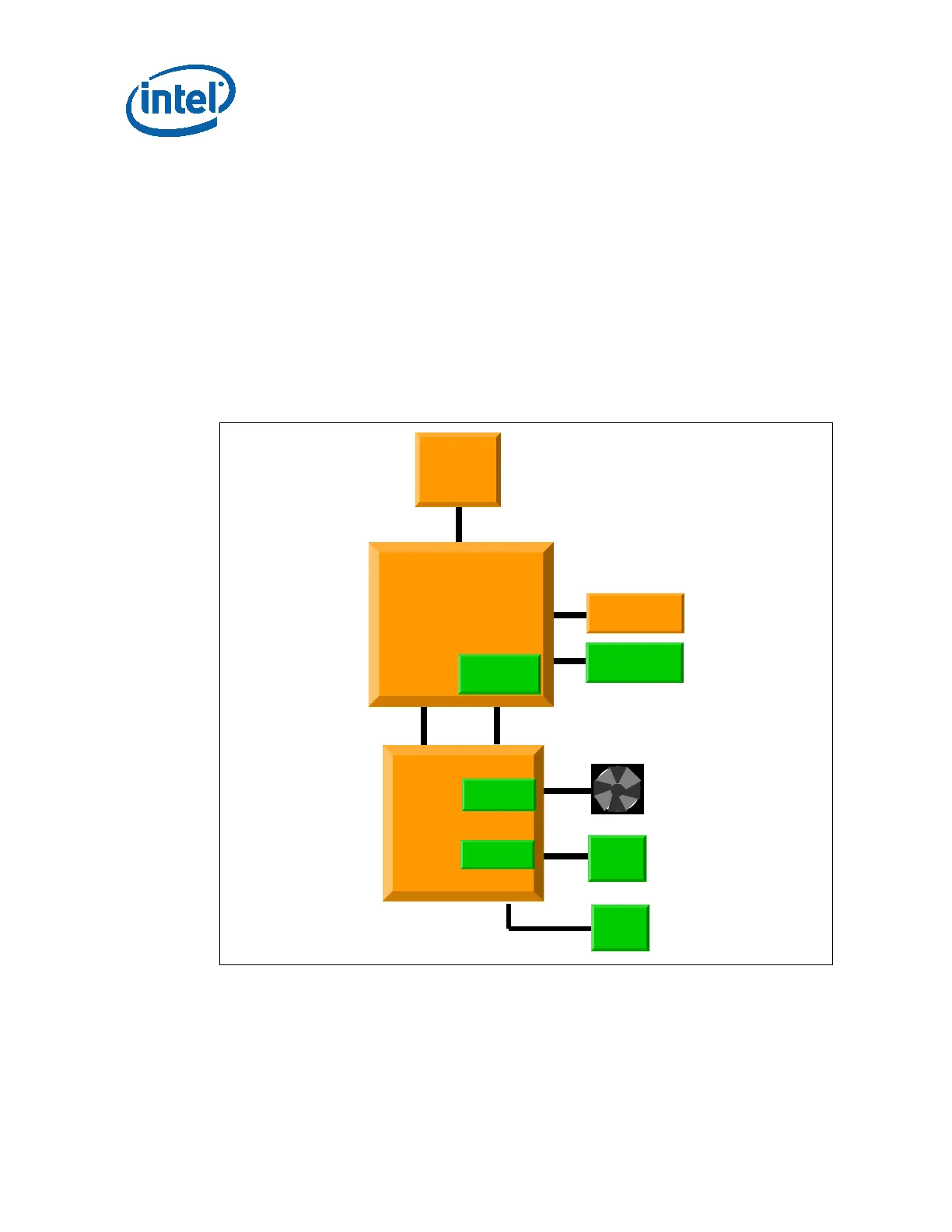

Figure 7-3. Intel
®
QST Platform Requirements
Note: Simple Serial Transport (SST) is a single wire bus that is included in the ICH8 to
provide additional thermal and voltage sensing capability to the Intel Management
Engine (ME).
Processor
ME
SPI
Flash
Intel®
ICH8
DRAM
Controller Link
DRAM
FSC
Control
SPI
SST
Sensor
Intel® (G)MCH
ME

Intel E6700 - Core 2 Duo Dual-Core Processor Specifications

General

Processor Number	E6700
Number of Cores	2
Number of Threads	2
Base Frequency	2.66 GHz
Cache	4 MB L2 Cache
Bus Speed	1066 MHz
TDP	65 W
Socket	LGA 775
Lithography	65 nm
Instruction Set	64-bit
Virtualization Technology	VT-x
Memory Types	DDR2
Release Date	July 2006
