Intel E6700 - Core 2 Duo Dual-Core Processor User Manual

Thermal Metrology
Thermal and Mechanical Design Guidelines 29

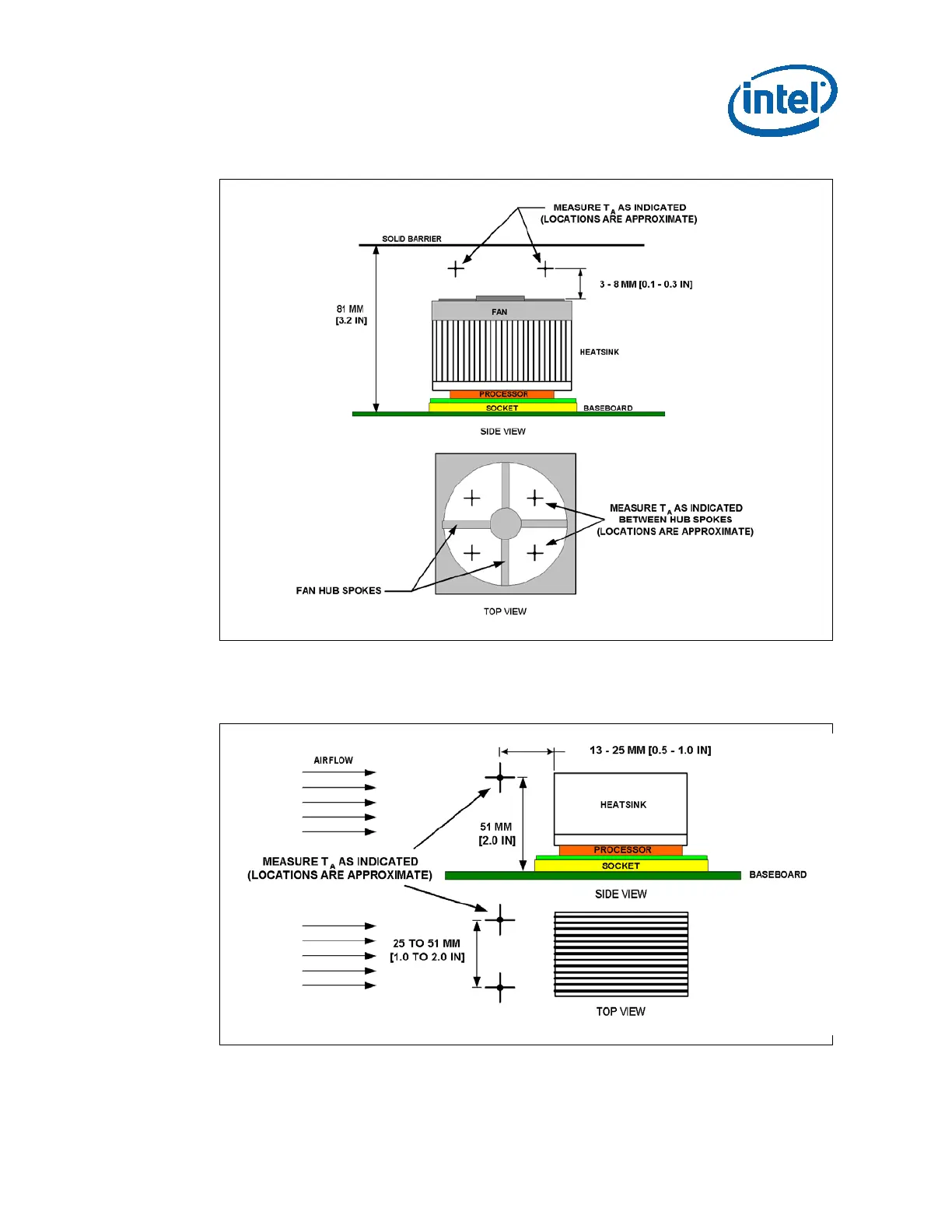

Figure 3-2. Locations for Measuring Local Ambient Temperature, Active ATX Heatsink
Note: Drawing Not to Scale
Figure 3-3. Locations for Measuring Local Ambient Temperature, Passive Heatsink
Note: Drawing Not to Scale

Intel E6700 - Core 2 Duo Dual-Core Processor Specifications

General

Processor Number	E6700
Number of Cores	2
Number of Threads	2
Base Frequency	2.66 GHz
Cache	4 MB L2 Cache
Bus Speed	1066 MHz
TDP	65 W
Socket	LGA 775
Lithography	65 nm
Instruction Set	64-bit
Virtualization Technology	VT-x
Memory Types	DDR2
Release Date	July 2006
