Heatsink Clip Load Metrology
Thermal and Mechanical Design Guidelines 77

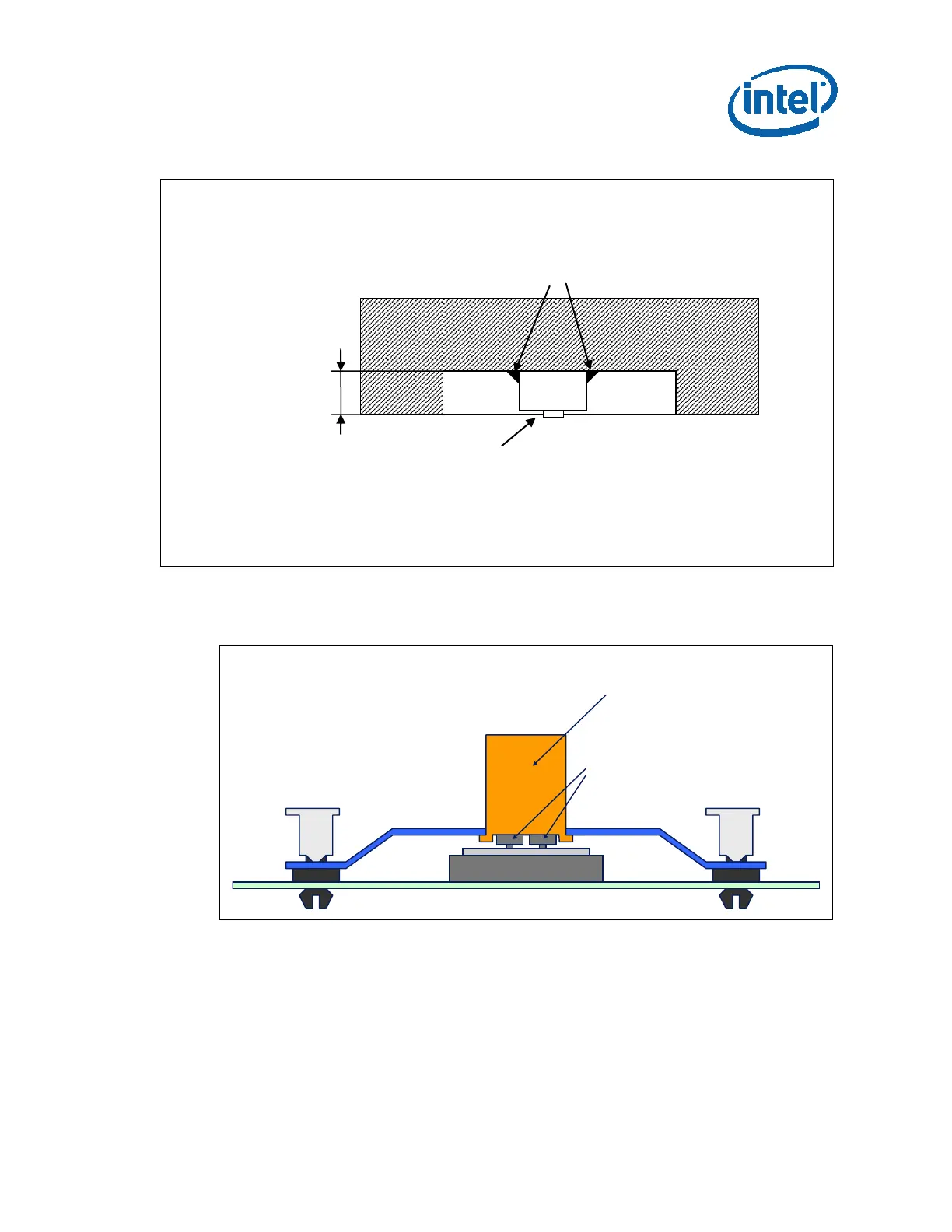

Figure 7-9. Load Cell Installation in Machined Heatsink Base Pocket – Side View
Figure 7-10. Preload Test Configuration
Load Cells (3x)
Preload Fixture (copper
core with milled out pocket)
Wax to maintain load cell in
position during heatsink
installation
Height of
pocket ~
height of
selected load
cell
Load cell protrusion
(Note: to be optimized depending on
assembly stiffness)

Intel E6700 - Core 2 Duo Dual-Core Processor Specifications

General

Processor Number	E6700
Number of Cores	2
Number of Threads	2
Base Frequency	2.66 GHz
Cache	4 MB L2 Cache
Bus Speed	1066 MHz
TDP	65 W
Socket	LGA 775
Lithography	65 nm
Instruction Set	64-bit
Virtualization Technology	VT-x
Memory Types	DDR2
Release Date	July 2006
