Thermal Metrology

Thermal/Mechanical Design Guide 29

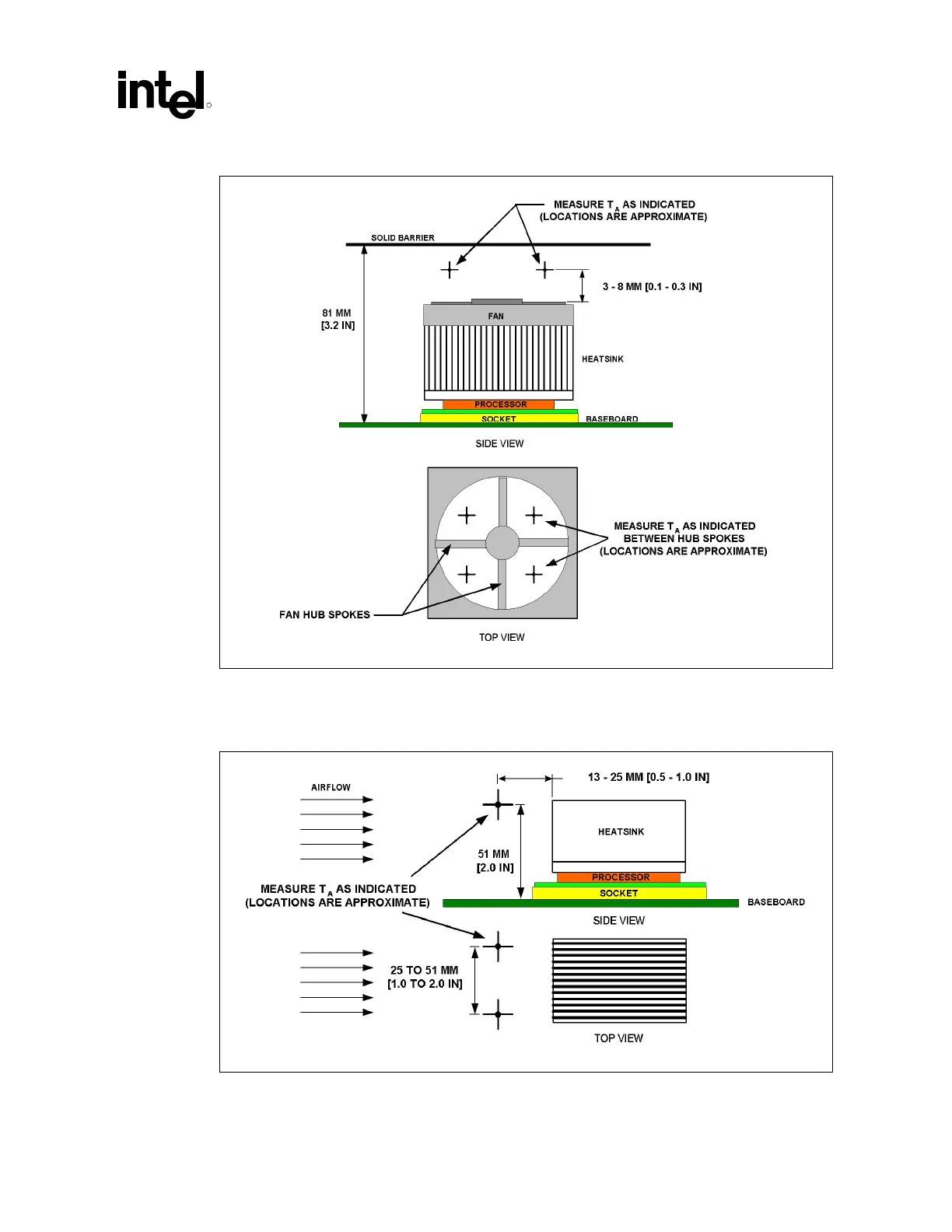

Figure 5. Locations for Measuring Local Ambient Temperature, Active Heatsink

Note: Drawing Not to Scale

Figure 6. Locations for Measuring Local Ambient Temperature, Passive Heatsink

Note: Drawing Not to Scale
