Case Temperature Reference Metrology
R
Thermal/Mechanical Design Guide 81

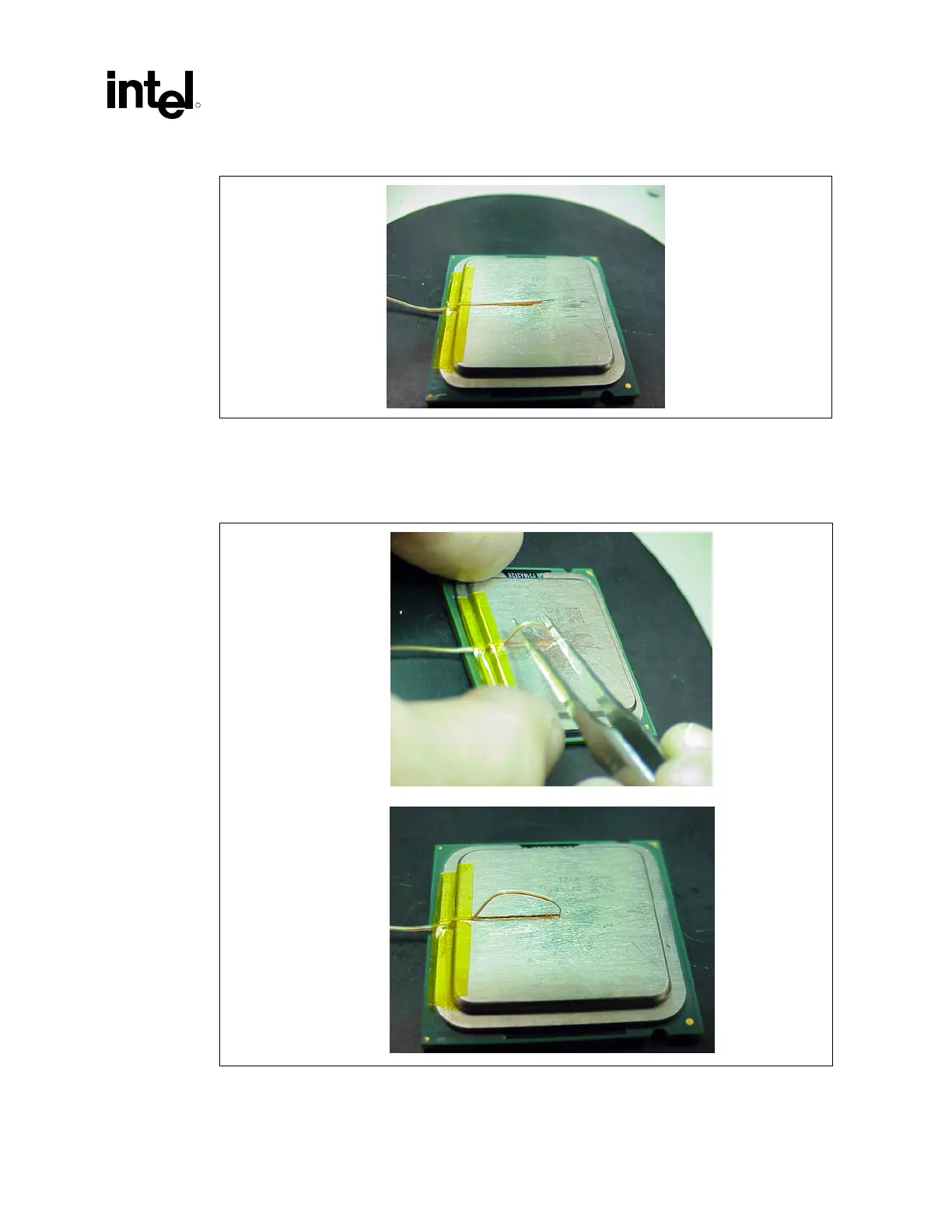

Figure 31. Securing Thermocouple Wires with Kapton Tape Prior to Attach
7. Lift the wire at the middle of groove with tweezers and bend the front of wire to place the
thermocouple in the channel ensuring the tip is in contact with the end of the channel grooved
in the IHS (
Figure 32-A and B).
Figure 32. Thermocouple Bead Placement
(A)
(B)
