Intel® Thermal/Mechanical Reference Design Information
R
Thermal/Mechanical Design Guide 47
A more detailed drawing of the Intel RCBFH-3 Reference Solution is provided in
Figure 55, in
Appendix G.

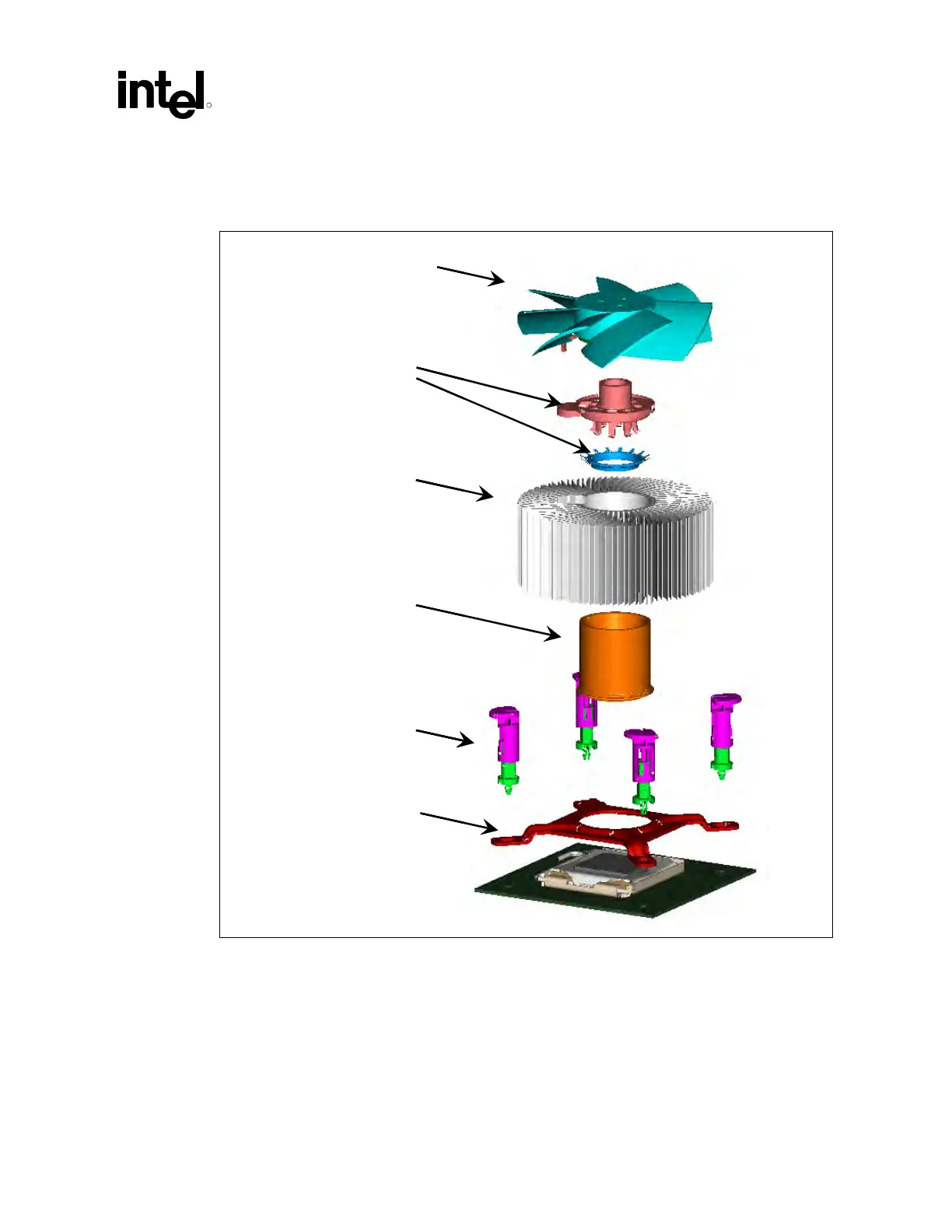

Figure 11. Intel
®
RCBFH-3 Reference Design (Exploded View)
Fan
Fan Attach
Extrusion
Core
Fastener
Clip
Fan
Fan Attach
Extrusion
Copper
Core
Fastene
r
Clip
Development vendor information for the Intel RCBFH-3 Reference Solution is provided in
Appendix H.
